COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16244		Well Classification: GW Status: PA - 8/8/2023
Well Name/No:HSR-CAFFERTA #9-10A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/8/2023
FacilityID:248446LocationID:332617
County:WELD #123Location:NESE 10 3N66W 6
Field:WATTENBERG - #90750Elevation:4896 ft.
Planned Location:2129FSL  807 FELLat/Long: 40.237996 / -104.756810Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.238067 / -104.756956Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

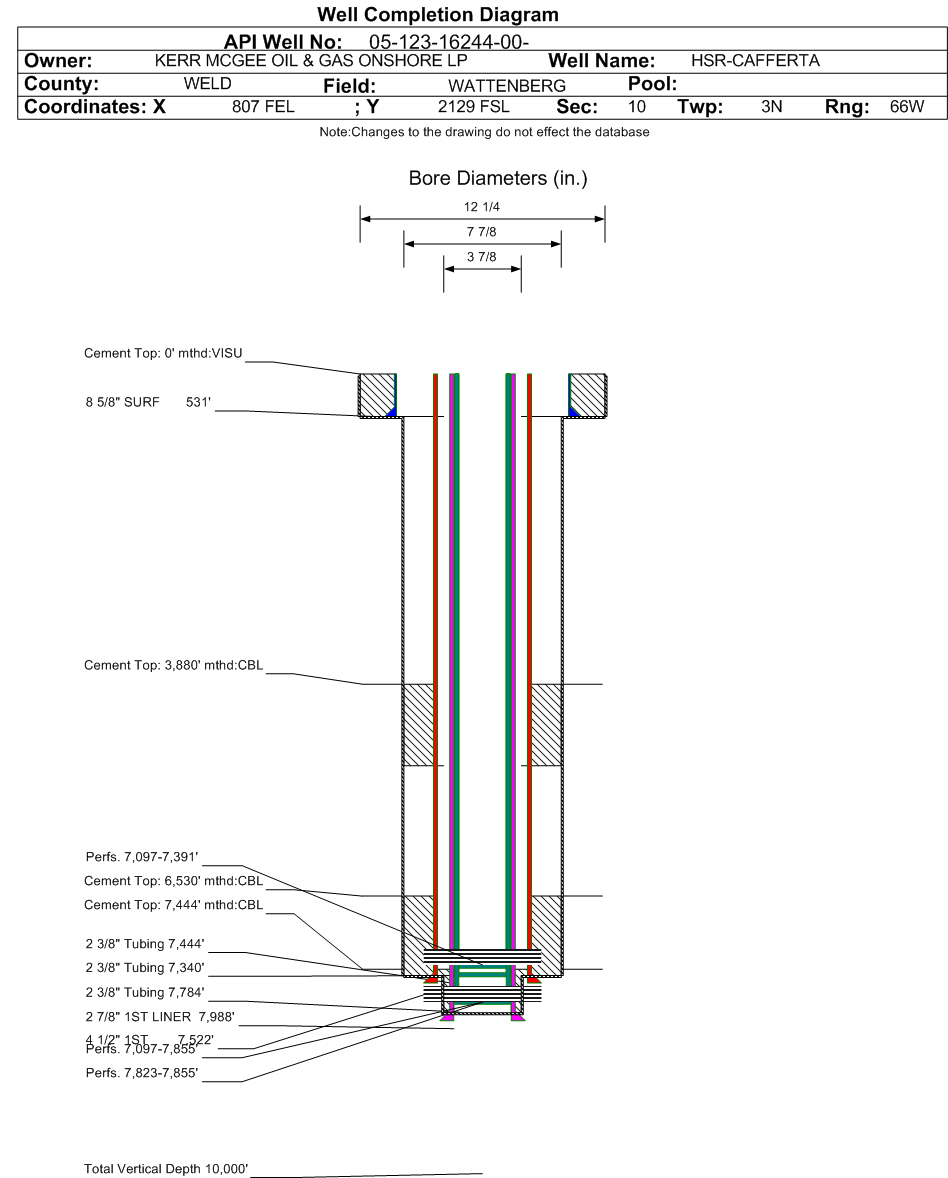

Wellbore #00             Wellbore Classification: GW             Status: PA - 8/8/2023             Measured TD: 7530 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/8/2023
Wellbore Permit
Permit #:19980914 Expiration Date:10/8/1999
Proposed Depth/Form:7960 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SE
Wellbore Completed
Completion Date:10/30/1992
Spud Date:10/6/1992Spud Date Is:ACTUAL
Measured TD:7530 ft.Measured PB depth:7465 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:CBL, CNFDGR, IGL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 531 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 531 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7522 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 3890 ft., Bottom: 7522 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: , Depth: 7980 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 7444 ft., Bottom: 7980 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7096 ft.NN
FORT HAYS7356 ft.NN
CODELL7377 ft.NN
J SAND7805 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/8/2023                  Interval Top: 7823 ft.    Interval Bottom: 7855 ft.

 Completed Information for Formation J SAND
1st Production Date:12/7/1998Choke Size:0.187 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/30/1992
Treatment Summary:FRAC'D W/325,800# 20/40; 166,446 GAL GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7444 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/19/1999Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 8
CALC_BBLS_OIL 8
CALC_GOR 56125
CALC_MCF_GAS 449
CASING_PRESS 850
GRAVITY_OIL 60
MCF_GAS 449
TUBING_PRESS 700
Perforation Data:
Interval Top:7823 ft.# Of Holes:104
Interval Bottom:7855 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/7/2002                  Interval Top: 7097 ft.    Interval Bottom: 7855 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:4/29/2002Choke Size:0.375 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/30/1992
Treatment Summary:COMMINGLED JNBCD
Tubing Size:2.375 in.Tubing Setting Depth:7784 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/7/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 3
CALC_BBLS_OIL 3
CALC_GOR 71667
CALC_MCF_GAS 215
CASING_PRESS 500
GRAVITY_OIL 60
MCF_GAS 215
TUBING_PRESS 250
Perforation Data:
Interval Top:7097 ft.# Of Holes:
Interval Bottom:7855 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/8/2023                  Interval Top: 7097 ft.    Interval Bottom: 7391 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/30/1992Choke Size:0.187 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/30/1992
Treatment Summary:7377-7391' FRAC'D W/185,963# 20/40 MESH SAND + 62,269 GAL GELLED FLUID. 7097-7268' FRAC'D W/228,000# 20/40 MESH SAND + 69,531 GAL GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7340 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/31/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 55
CALC_BBLS_OIL 55
CALC_GOR 8836
CALC_MCF_GAS 486
CASING_PRESS 2200
GRAVITY_OIL 60
MCF_GAS 486
TUBING_PRESS 1900
Perforation Data:
Interval Top:7097 ft.# Of Holes:43
Interval Bottom:7391 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/08/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
