COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-16146		Well Classification: GW Status: TA - 6/10/2022
Well Name/No:SCHMIDT #25-8F
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:66791
Facility Status:TAStatus Date6/10/2022
FacilityID:248348LocationID:328565
County:WELD #123Location:SENE 25 4N66W 6
Field:WATTENBERG - #90750Elevation:4766 ft.
Planned Location:2060FNL  552 FELLat/Long: 40.284946 / -104.717449Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.285100 / -104.717520Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: TA - 6/10/2022             Measured TD: 7365 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        TA - 6/10/2022
Wellbore PermitDRIFTED
Permit #:921109 Expiration Date:1/3/1993
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:10/20/1992
Measured TD:7365 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

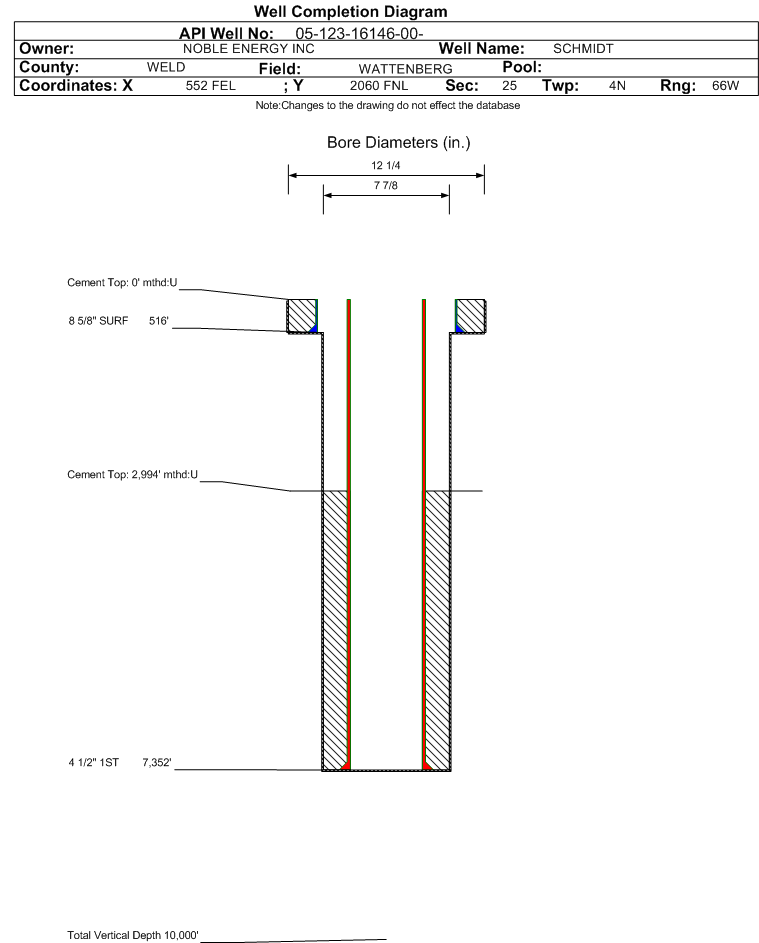

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 516 ft., Weight: 23 , Citings Type: HISTORICAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 516 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7352 ft., Weight: 11.6 , Citings Type: HISTORICAL
Cement:Sacks: 420, Top: 2994 ft., Bottom: 7352 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3743 ft.
SUSSEX4173 ft.
NIOBRARA7001 ft.
FORT HAYS7218 ft.
CODELL7240 ft.

Formation CODL                     Formation Classification:  GW                     Status:  TA - 6/10/2022                 Interval Top: 7240 ft.    Interval Bottom: 7254 ft.

 Completed Information for Formation CODELL
1st Production Date:11/4/1992Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7240 ft.# Of Holes:128
Interval Bottom:7254 ft.Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
06/30/2020
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
