COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15983		Well Classification: GW Status: PA - 1/29/2019
Well Name/No:HSR-ALBERTO #8-10X
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/29/2019
FacilityID:248185LocationID:328433
County:WELD #123Location:SENE 10 3N66W 6
Field:WATTENBERG - #90750Elevation:4894 ft.
Planned Location:1879FNL  819 FELLat/Long: 40.241516 / -104.756850Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.241570 / -104.756790Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 2/6/2012
End Date: 2/6/2012
Reported: 3/22/2012
Prior to rule 205A.b.(2)(A)
Days to report: 45
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

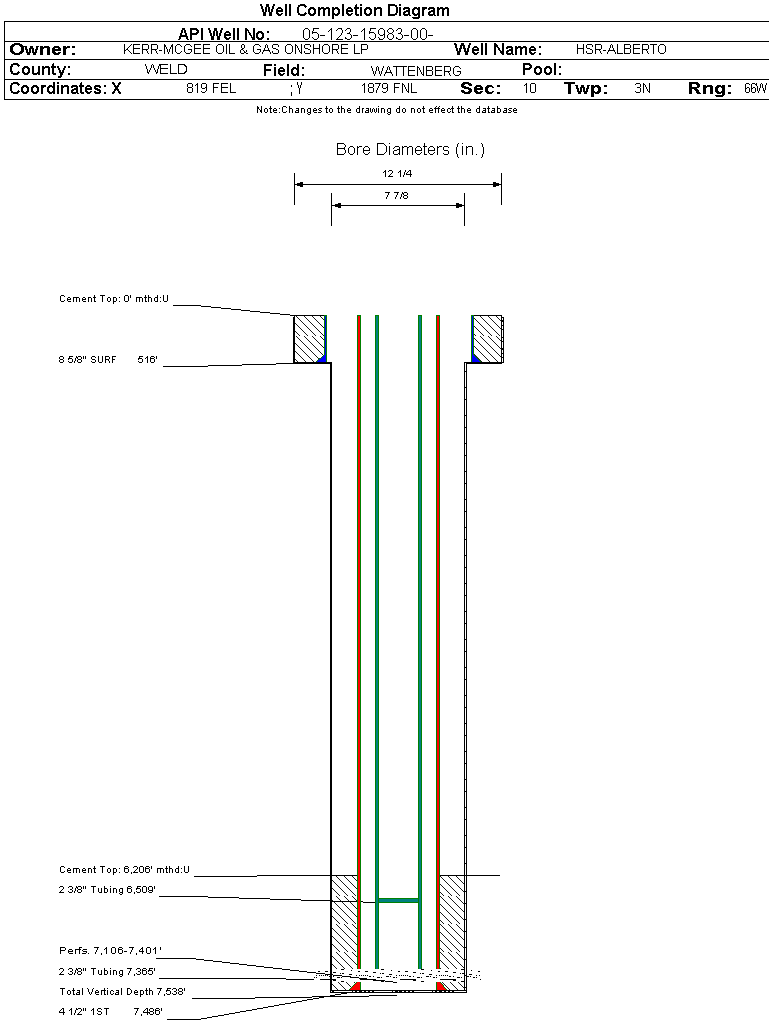

Wellbore #00             Wellbore Classification: GW             Status: PA - 1/29/2019             Measured TD: 7538 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/29/2019
Wellbore PermitDIRECTIONAL
Permit #:19920856 Expiration Date:11/22/1992
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:9/10/1992
Spud Date:8/12/1992Spud Date Is:ACTUAL
Measured TD:7538 ft.Measured PB depth:7445 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 516 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7486 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6206 ft., Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7104 ft.NN
FORT HAYS7365 ft.NN
CODELL7387 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/15/2010                 Interval Top: 7387 ft.

 Completed Information for Formation CODELL
1st Production Date:9/10/1992Choke Size:0.281 in.
Formation Name:CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:9/10/1992
Treatment Summary:SEE NB-CD PAGE FOR 1ST CODL TREATMENT @ 1992. // FRAC'D CODL W/11,500# 100MESH; 250,400 20/40 MESH; 22,580 # 12/20 MESH; 107,472 GAL GELLED FLUID, 1997. // REPERF'D CODL FROM 7765-7770'. REFRAC CODL W/262,180 #20/40 MESH & 89,641 GAL. GELLED FLUID, 5/2/2002.
Tubing Size:2.375 in.Tubing Setting Depth:6509 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/20/2002Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 13
CALC_BBLS_OIL 13
CALC_GOR 20615
CALC_MCF_GAS 268
CASING_PRESS 650
GRAVITY_OIL 60
MCF_GAS 268
TUBING_PRESS 450
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  CM - 9/13/1992                 Interval Top: 7106 ft.    Interval Bottom: 7401 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:9/10/1992Choke Size:0.187 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:9/10/1992
Treatment Summary:7387-7401' FRAC'D W/175,200# 20/40 MESH SAND + 60,425 GAL GELLED FLUID. 7106-7270' FRAC'D W/228,000# 20/40 MESH SAND + 67,500 GAL GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7365 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/13/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 25
CALC_BBLS_H2O 0
CALC_BBLS_OIL 25
CALC_GOR 12240
CALC_MCF_GAS 306
CASING_PRESS 1800
GRAVITY_OIL 60
MCF_GAS 306
TUBING_PRESS 1500
Perforation Data:
Interval Top:7106 ft.# Of Holes:45
Interval Bottom:7401 ft.Hole Size:0.38 in.

Sidetrack #01             Wellbore Classification: GW             Status: PA - 1/29/2019             Measured TD: 7888 ft.    Vertical TD: 7486 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PA - 1/29/2019
Wellbore PermitDIRECTIONAL
Permit #:19960725 Expiration Date:10/16/1997
Proposed Top PZ Location:Sec: Twp: Footage: 1549 FNL  786 FEL
Bottom Hole Location:Sec: Twp: Footage: 1127 FNL  694 FEL
Proposed Depth/Form:7820 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:Not availableSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:6/5/1997
Spud Date:5/2/1997Spud Date Is:ACTUAL
Measured TD:7888 ft.Measured PB depth:7855 ft.
True Vertical TD:7486 ft.True Vertical PB depth:7457 ft.
Top PZ Location:Sec: Twp: Footage: 1549 FNL  786 FEL
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 516 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 516 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7486 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6206 ft., Bottom: 7486 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 3.75 in., Size: 2.375 in., Top: 6550 ft., Depth: 7887 ft., Weight: 4.7 , Citings Type: ACTUAL
Cement:Sacks: 35, Top: 6762 ft., Bottom: 7887 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: , Depth: 7887 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 35, Top: 7160 ft., Bottom: 7887 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7290 ft.NN
FORT HAYS7722 ft.NN
CODELL7764 ft.7786 ft.NN

Formation CODL                     Formation Classification:  OG                     Status:  CM - 2/29/2012                 Interval Top: 7765 ft.    Interval Bottom: 7770 ft.

 Completed Information for Formation CODELL
1st Production Date:9/10/1992Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/2012
Treatment Summary:Trifrac CODL down 2.875" tbg w/ pkr ^ ni w/ 124,580 gal dynaflow 2 w/ 261,330# 20/40, 4,000# 20/40.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 13
CALC_BBLS_OIL 13
CALC_GOR 20615
CALC_MCF_GAS 268
CASING_PRESS 650
GRAVITY_OIL 60
MCF_GAS 268
TUBING_PRESS 450
Perforation Data:
Interval Top:7765 ft.# Of Holes:48
Interval Bottom:7770 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 1/29/2019                 Interval Top: 7308 ft.    Interval Bottom: 7770 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/9/2012Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/2012
Treatment Summary:CDTRIFRAC-NBREC
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/22/2012Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 1
BTU_GAS 1212
CALC_BBLS_OIL 1
CASING_PRESS 20
GRAVITY_OIL 60
Perforation Data:
Interval Top:7308 ft.# Of Holes:96
Interval Bottom:7770 ft.Hole Size:0.32 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 5/3/2012                  Interval Top: 7308 ft.    Interval Bottom: 7564 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/9/2012Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/2012
Treatment Summary:Frac NBRR down 2.875" tbg w/ pkr ^ ni w/ 252 gal 15% HCl & 161,973 gal dynaflow 2 hybrid w/ 250,330# 20/40, 4,000# 20/40.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7308 ft.# Of Holes:48
Interval Bottom:7564 ft.Hole Size:0.25 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/29/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
