COGIS - WELL SCOUT CARD

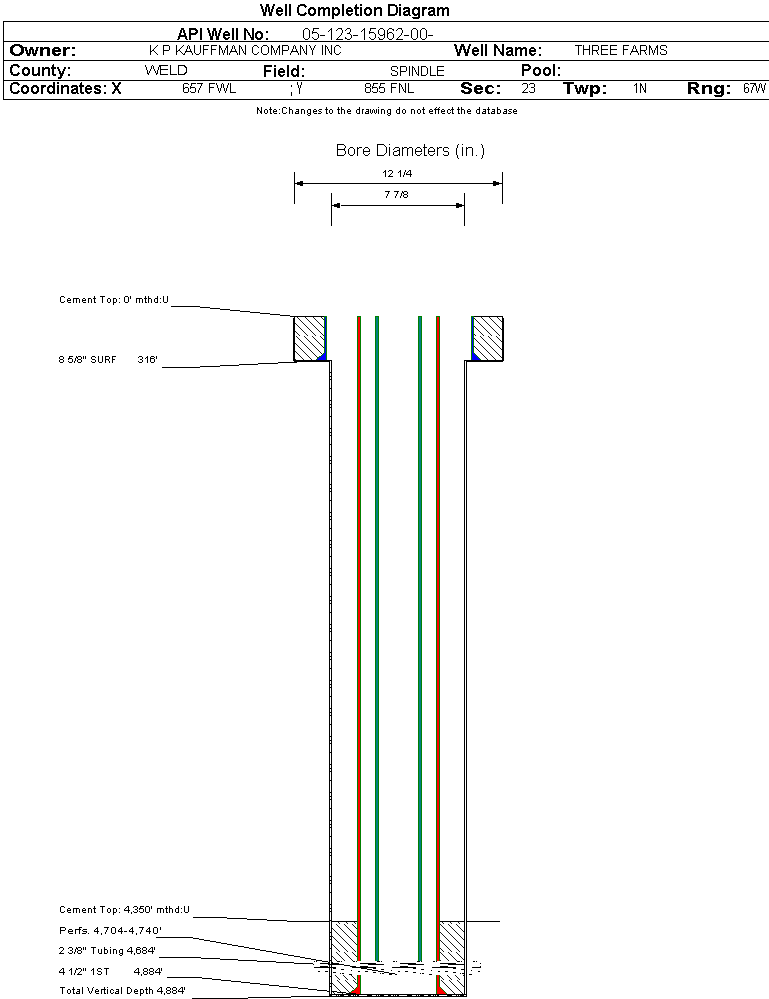

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15962		Well Classification: OW Status: PR - 5/1/2024
Well Name/No:THREE FARMS #11-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:248164LocationID:328413
County:WELD #123Location:NWNW 23 1N67W 6
Field:SPINDLE - #77900Elevation:4961 ft.
Planned Location:855FNL  657 FWLLat/Long: 40.041378 / -104.865012Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.041490 / -104.864960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/1/2024             Measured TD: 4884 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/1/2024
Wellbore PermitDRIFTED
Permit #:19920827 Expiration Date:11/18/1992
Proposed Depth/Form:4884 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 250 , Unit Acreage: 40, Drill Unit: NWNW
Wellbore Completed
Completion Date:10/5/1992
Spud Date:9/22/1992Spud Date Is:ACTUAL
Measured TD:4884 ft.Measured PB depth:4854 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CDL-DIL-CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 316 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4884 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 340, Top: 4350 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4690 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 5/1/2024                  Interval Top: 4704 ft.    Interval Bottom: 4740 ft.

 Completed Information for Formation SUSSEX
1st Production Date:10/21/1992Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/5/1992
Treatment Summary:1957 BW, 44 BO, 290,000# 12/20 SND & 10,000# 12/20 RESIN COATED SAND.
Tubing Size:2.375 in.Tubing Setting Depth:4684 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1992Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 23
BBLS_OIL 9
CALC_GOR 2000
MCF_GAS 18
Perforation Data:
Interval Top:4704 ft.# Of Holes:24
Interval Bottom:4740 ft.Hole Size:0.375 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)494
GOR
GOR DeterminationMCFE
Average BOE per Day0.229
Average MCFE per Day1.346

 Federal Financial Assurance  i

 Tribal Well  i No
