COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15955		Well Classification: GW Status: PR - 7/1/2023
Well Name/No:ROCKY MOUNTAIN FUEL #12-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2023
FacilityID:248157LocationID:410186
County:WELD #123Location:SWNW 9 1N67W 6
Field:SPINDLE - #77900Elevation:5023 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1840FNL  520 FWLLat/Long: 40.067598 / -104.903273Lat/Long Source: Calculated From Footages
As Drilled Location:1841 FNL  501 FWLLat/Long: 40.067710 / -104.903320Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2023             Measured TD: 4925 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2023
Wellbore Permit
Permit #:19920807 Expiration Date:11/12/1992
Proposed Depth/Form:4982 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 250 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:8/14/1992
Spud Date:7/23/1992Spud Date Is:ACTUAL
Measured TD:4925 ft.Measured PB depth:4900 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CNL-DIL-CBL

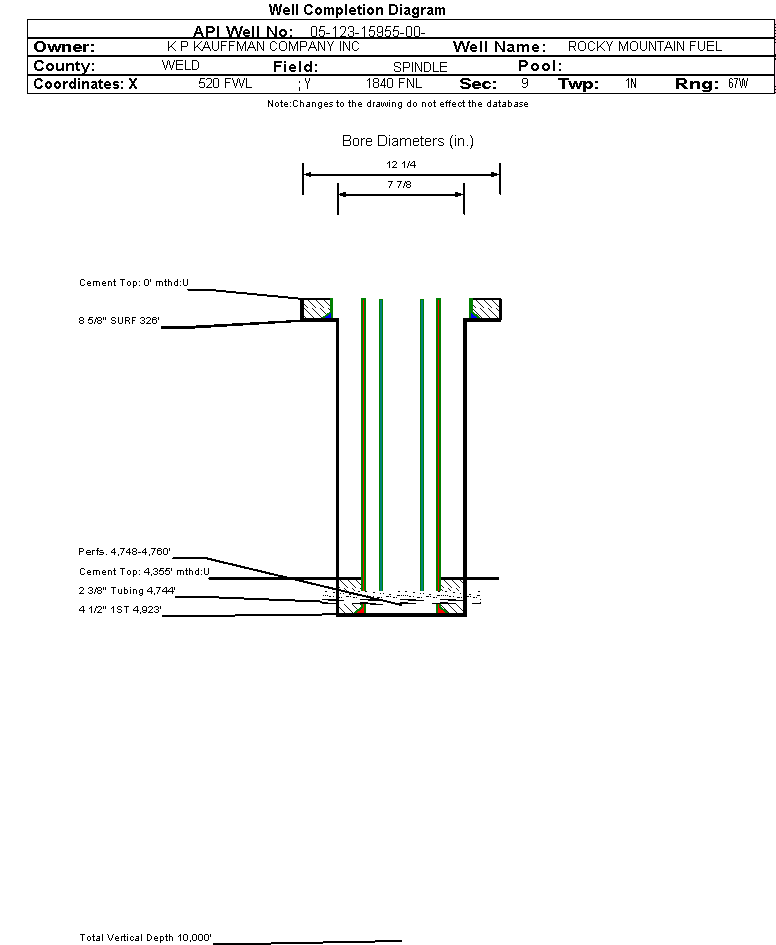

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 326 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4923 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 4355 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4736 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 7/1/2023                  Interval Top: 4748 ft.    Interval Bottom: 4760 ft.

 Completed Information for Formation SUSSEX
1st Production Date:9/1/1992Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/14/1992
Treatment Summary:80,930 GAL GEL W/50 BO, 29,000# 12/20 SAND & 10,000# 12/20 SAND. ISDP 550#. ATP 1050# AT 32 BPM.
Tubing Size:2.375 in.Tubing Setting Depth:4744 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/10/1992Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 18
CALC_GOR 4388
CASING_PRESS 60
MCF_GAS 79
Perforation Data:
Interval Top:4748 ft.# Of Holes:36
Interval Bottom:4760 ft.Hole Size:0.375 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)21
Total Gas Produced (MCF)202
GOR9619
GOR DeterminationBOE
Average BOE per Day0.152
Average MCFE per Day0.891

 Federal Financial Assurance  i

 Tribal Well  i No
