COGIS - WELL SCOUT CARD

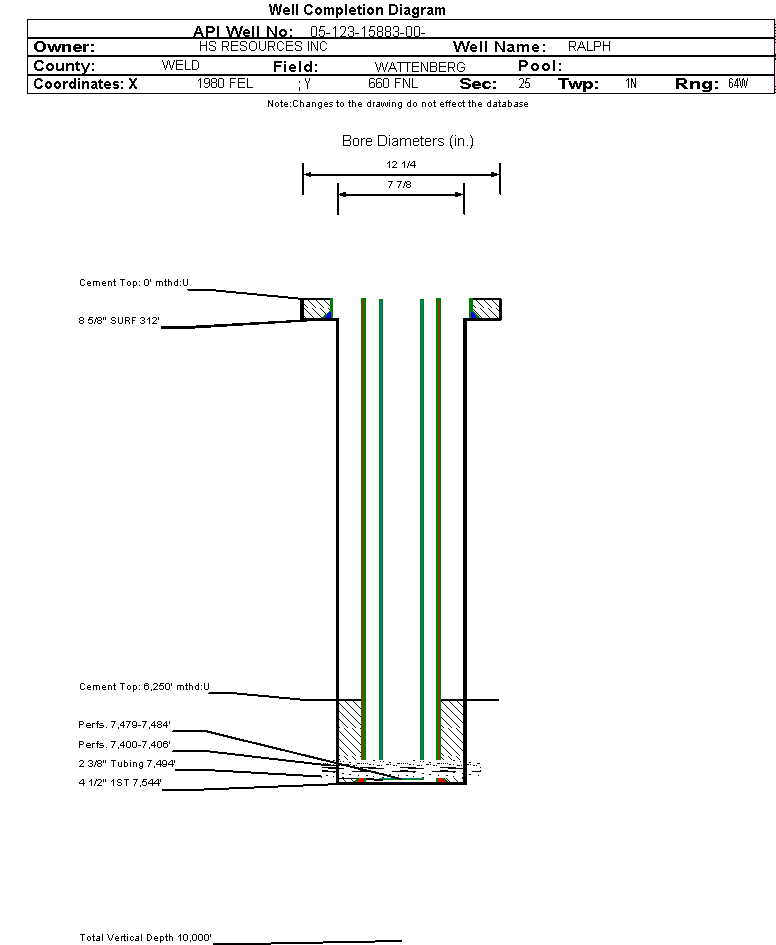

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15883		Well Classification: GW Status: PR - 4/1/2024
Well Name/No:RALPH #A-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2024
FacilityID:248085LocationID:328354
County:WELD #123Location:NWNE 25 1N64W 6
Field:WATTENBERG - #90750Elevation:4958 ft.
Planned Location:660FNL  1980 FELLat/Long: 40.027730 / -104.496690Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.027753 / -104.496735Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2024             Measured TD: 7550 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2024
Wellbore Permit
Permit #:19920701 Expiration Date:7/12/1994
Proposed Depth/Form:7550 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 40, Drill Unit: NWNE
Wellbore Completed
Completion Date:7/22/1992
Spud Date:6/23/1992Spud Date Is:ACTUAL
Measured TD:7550 ft.Measured PB depth:7522 ft.
True Vertical TD:True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 312 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 312 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7544 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 6250 ft., Bottom: 7544 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6621 ft.
D SAND7394 ft.
J SAND7461 ft.

Formation JSND                     Formation Classification:  GW                     Status:  PR - 4/1/2024                  Interval Top: 7479 ft.    Interval Bottom: 7484 ft.

 Completed Information for Formation J SAND
1st Production Date:3/4/1994Choke Size:
Formation Name:J SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/22/1992
Treatment Summary:FRACD W/100000# 2/40 MESH SD + 42672 GAL GELLED FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/5/1994Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 7
GRAVITY_OIL 44
Perforation Data:
Interval Top:7479 ft.# Of Holes:10
Interval Bottom:7484 ft.Hole Size:0.5 in.

Formation DSND                     Formation Classification:  GW                     Status:  AB - 4/5/1994                  Interval Top: 7400 ft.    Interval Bottom: 7406 ft.

 Completed Information for Formation D SAND
1st Production Date:9/7/1992Choke Size:
Formation Name:D SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/22/1992
Treatment Summary:BREAKDOWN W/500G MRS FRAC W/100000# 20/40 & 16000# WEST PROP.
Tubing Size:2.375 in.Tubing Setting Depth:7494 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/7/1992Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 4
CASING_PRESS 60
Perforation Data:
Interval Top:7400 ft.# Of Holes:28
Interval Bottom:7406 ft.Hole Size:0.37 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)244
Total Gas Produced (MCF)510
GOR2090
GOR DeterminationBOE
Average BOE per Day0.904
Average MCFE per Day5.241

 Federal Financial Assurance  i

 Tribal Well  i No
