COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15795		Well Classification: GW Status: PA - 4/5/2023
Well Name/No:SPIKE ST GWS #CC 30-06
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:70/7861-S
Facility Status:PAStatus Date4/5/2023
FacilityID:247997LocationID:328279
County:WELD #123Location:SENW 30 4N63W 6
Field:WATTENBERG - #90750Elevation:4754 ft.
Planned Location:1968FNL  1916 FWLLat/Long: 40.285117 / -104.482932Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.285162 / -104.482894Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

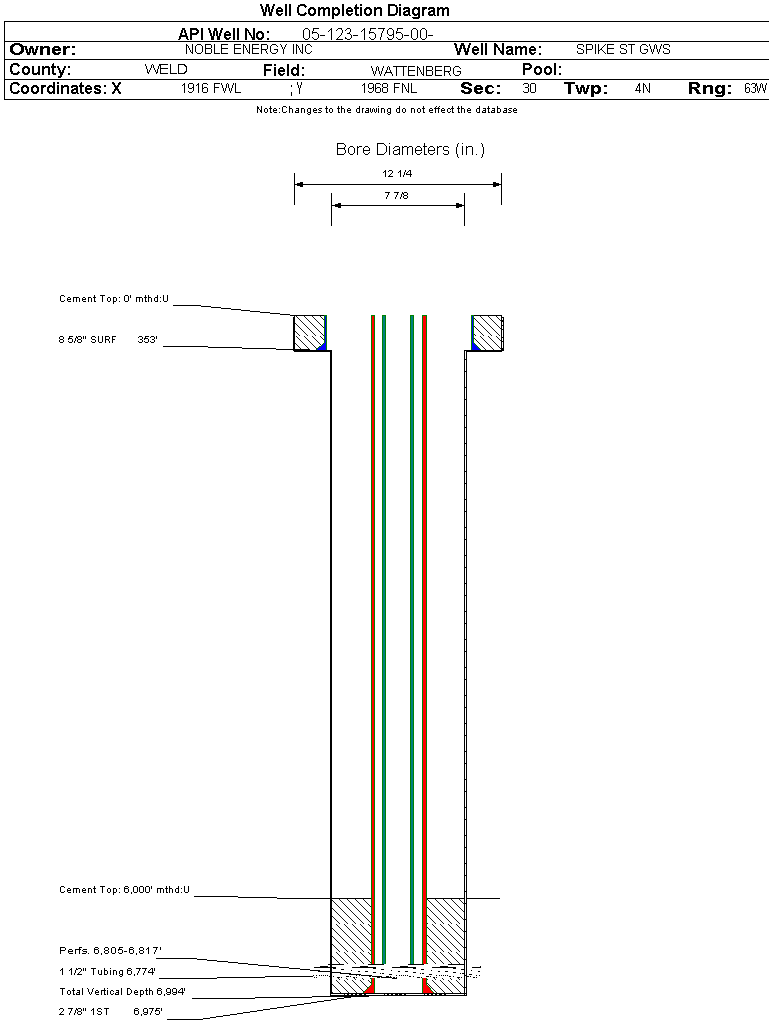

Wellbore #00             Wellbore Classification: GW             Status: PA - 4/5/2023             Measured TD: 6994 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 4/5/2023
Wellbore Permit
Permit #:19920569 Expiration Date:9/30/1992
Proposed Depth/Form:6950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2NW4
Wellbore Completed
Completion Date:5/12/2005
Spud Date:6/29/1992Spud Date Is:ACTUAL
Measured TD:6994 ft.Measured PB depth:6934 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP DEN CCL CBL AND GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 353 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 13 ft., Bottom: 353 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 6986 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 6000 ft., Bottom: 6986 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4195 ft.NN
NIOBRARA6529 ft.NN
CODELL6803 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  AB - 4/5/2023                  Interval Top: 6805 ft.    Interval Bottom: 6817 ft.

 Completed Information for Formation CODELL
1st Production Date:8/18/1992Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/12/2005
Treatment Summary:ORIGINAL COMPLETION: 57,750 GALS TERRA FRAC W/ 151,000# 20-40 SAND. 5/12/05: RE-PERF'D CODL 6805'-6817' (48 HOLES). 5/31/05: RE-FRAC'D CODL W/ 130,830 GAL VISTAR 23/24/25# GEL & 244,499# 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 20
BTU_GAS 1337
CALC_BBLS_H2O 1
CALC_BBLS_OIL 20
CALC_GOR 7250
CALC_MCF_GAS 145
CASING_PRESS 640
GRAVITY_OIL 48.6
MCF_GAS 145
TUBING_PRESS 380
Perforation Data:
Interval Top:6805 ft.# Of Holes:88
Interval Bottom:6817 ft.Hole Size:0.27 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/05/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
