COGIS - WELL SCOUT CARD

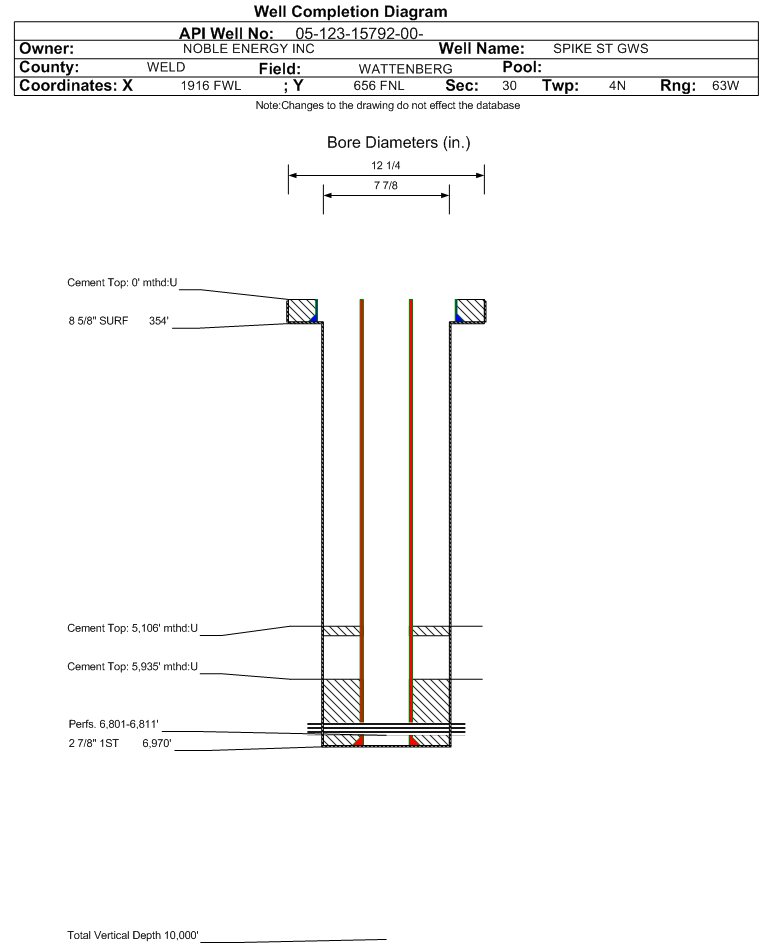

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15792		Well Classification: OW Status: PA - 4/27/2016
Well Name/No:SPIKE ST GWS #CC 30-03
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:70/7861-s
Facility Status:PAStatus Date4/27/2016
FacilityID:247994LocationID:328277
County:WELD #123Location:NENW 30 4N63W 6
Field:WATTENBERG - #90750Elevation:4757 ft.
Basin:DENVER (DJ) BASIN
Planned Location:656FNL  1916 FWLLat/Long: 40.288727 / -104.482862Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.288775 / -104.483007Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/15/2016             Measured TD: 6971 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/15/2016
Wellbore PermitDRIFTED
Permit #:19920566 Expiration Date:9/30/1992
Proposed Depth/Form:6950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: N2NW4
Wellbore Completed
Completion Date:7/3/1992
Spud Date:6/23/1992Spud Date Is:ACTUAL
Measured TD:6971 ft.Measured PB depth:6967 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP. DENSITY, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 354 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 354 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 6970 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 5935 ft., Bottom: 6970 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5256 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 204, Top: 5106 ft., Bottom: 5256 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4235 ft.NN
NIOBRARA6550 ft.NN
CODELL6799 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  AB - 4/27/2016                 Interval Top: 6801 ft.    Interval Bottom: 6811 ft.

 Completed Information for Formation CODELL
1st Production Date:8/21/1992Choke Size:0.125 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:7/3/1992
Treatment Summary:56,196 GALS SATURN 1 W/ 151,000# 20-40 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/25/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 17
CALC_BBLS_H2O 3
CALC_BBLS_OIL 17
CALC_GOR 2235
CALC_MCF_GAS 38
CASING_PRESS 1400
MCF_GAS 38
Perforation Data:
Interval Top:6801 ft.# Of Holes:40
Interval Bottom:6811 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/27/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
