COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15786		Well Classification: GW Status: SI - 3/1/2024
Well Name/No:HSR-MILLER #7-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date3/1/2024
FacilityID:247988LocationID:328272
County:WELD #123Location:SWNE 10 3N66W 6
Field:WATTENBERG - #90750Elevation:4894 ft.
Planned Location:1837FNL  2120 FELLat/Long: 40.241646 / -104.761500Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.241700 / -104.761440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 3/1/2024             Measured TD: 7990 ft.    Vertical TD: 7990 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 3/1/2024
Wellbore Permit
Permit #:20041299 Expiration Date:6/14/2005
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:9/2/2004
Spud Date:6/8/1992Spud Date Is:ACTUAL
Measured TD:7990 ft.Measured PB depth:7475 ft.
True Vertical TD:7990 ft.True Vertical PB depth:7475 ft.
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:AIL, CDL, CN, GR, CBL

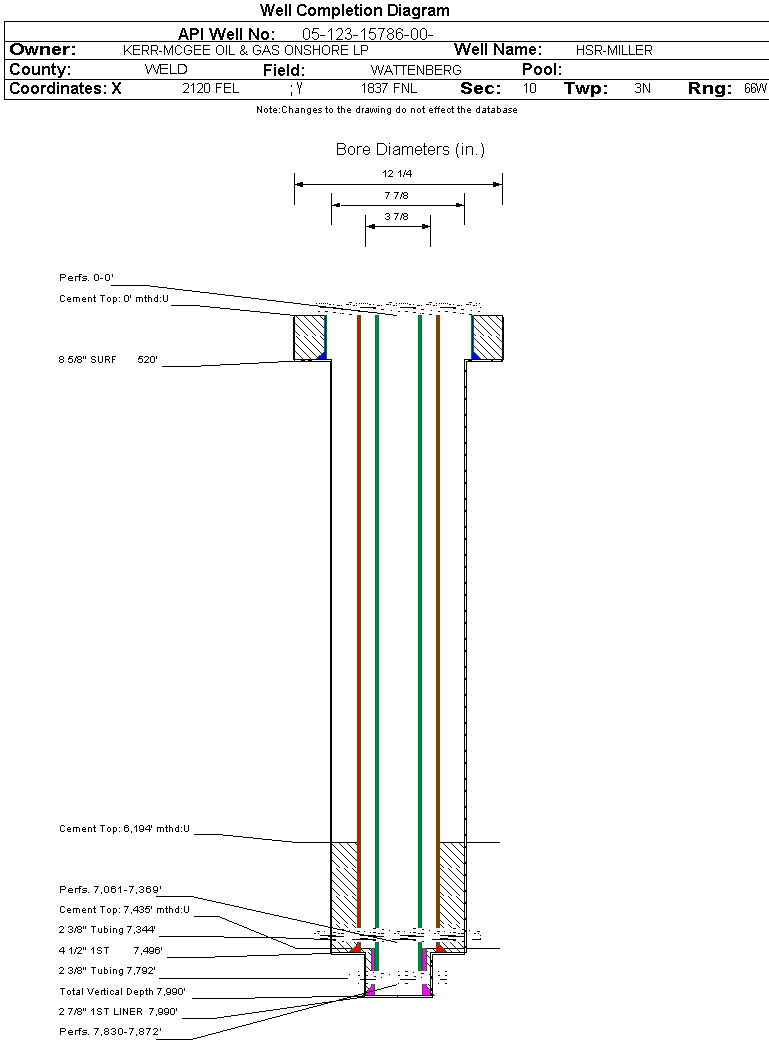

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 520 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 520 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7496 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6176 ft., Bottom: 7496 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7435 ft., Depth: 7990 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 21, Top: 7435 ft., Bottom: 7990 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7060 ft.NN
FORT HAYS7331 ft.NN
CODELL7352 ft.NN
J SAND7815 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 3/1/2024                  Interval Top: 7830 ft.    Interval Bottom: 7872 ft.

 Completed Information for Formation J SAND
1st Production Date:10/24/2004Choke Size:
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/2/2004
Treatment Summary:149,340 GAL FLUID; 4000# 12/20 SAND; 115,500# 30/50 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7830 ft.# Of Holes:108
Interval Bottom:7872 ft.Hole Size:0.21 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 3/1/2024                  Interval Top: 7061 ft.    Interval Bottom: 7369 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/27/1992Choke Size:0.187 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/2/2004
Treatment Summary:7352-7369' FRAC'D W/350,000# 20/40 MESH SAND + 76,098 GAL GELLED FLUID. 7060-7234' FRAC'D W/228,000# 20/40 MESH SAND + 69,336 GAL GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7344 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/30/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 25
CALC_BBLS_H2O 0
CALC_BBLS_OIL 25
CALC_GOR 13000
CALC_MCF_GAS 325
CASING_PRESS 2200
GRAVITY_OIL 60
MCF_GAS 325
TUBING_PRESS 2000
Perforation Data:
Interval Top:7061 ft.# Of Holes:40
Interval Bottom:7369 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 10/24/2004

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/24/2004Choke Size:0.281 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/2/2004
Treatment Summary:COMMINGLED J SAND & NB-CD.
Tubing Size:2.375 in.Tubing Setting Depth:7792 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/24/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 3
CALC_BBLS_H2O 0
CALC_BBLS_OIL 3
CALC_GOR 83667
CALC_MCF_GAS 251
CASING_PRESS 518
GRAVITY_OIL 62
MCF_GAS 251
TUBING_PRESS 246
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY06/12/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
04/30/2028
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
02/29/2024
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
