COGIS - WELL SCOUT CARD

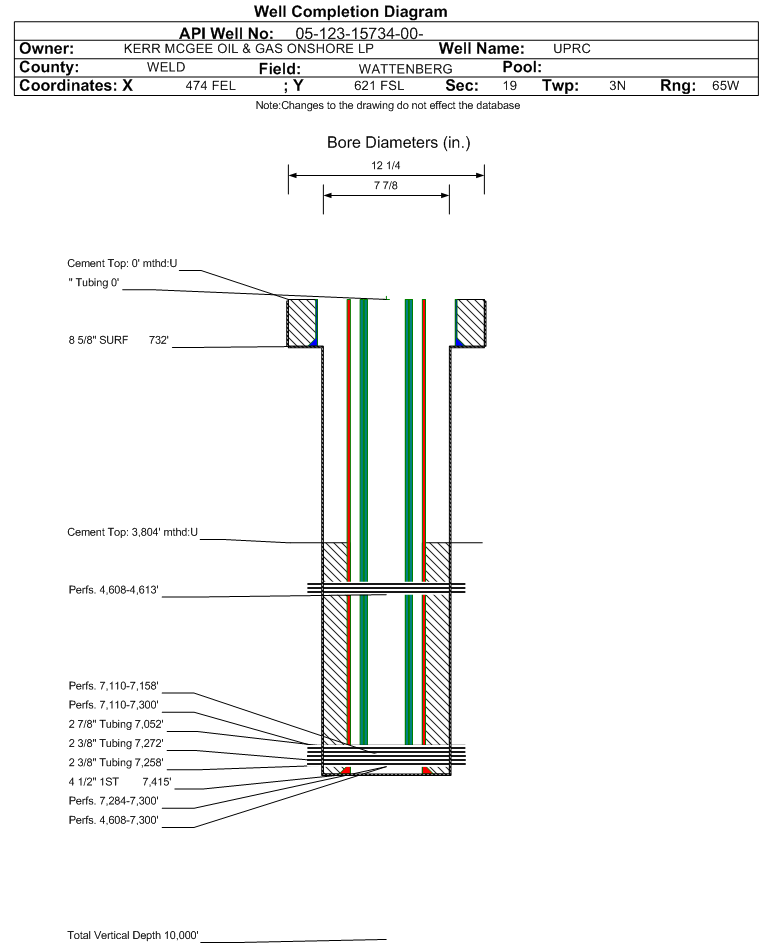

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15734		Well Classification: GW Status: PA - 12/20/2022
Well Name/No:UPRC #19-16J
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/20/2022
FacilityID:247936LocationID:328232
County:WELD #123Location:SESE 19 3N65W 6
Field:WATTENBERG - #90750Elevation:4922 ft.
Planned Location:621FSL  474 FELLat/Long: 40.205387 / -104.698538Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.205396 / -104.698495Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/20/2022             Measured TD: 7435 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/20/2022
Wellbore PermitDRIFTED
Permit #:19920430 Expiration Date:2/5/1993
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2SE
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 493-2 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:5/11/1992
Spud Date:5/6/1992Spud Date Is:ACTUAL
Measured TD:7435 ft.Measured PB depth:7372 ft.
True Vertical TD:True Vertical PB depth:
Log Types:FDC/GR, DIL/GR, CBL
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 732 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 732 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 6635 ft., Bottom: 7415 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 3800 ft., Bottom: 4343 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 4762 ft., Bottom: 4842 ft., Determination Method: CBL
Casing:String Type: S.C. 2.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 4328 ft., Bottom: 4428 ft., Determination Method: CBL
Casing:String Type: S.C. 1.3, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7415 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 4608 ft., Bottom: 4613 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 4371 ft., Depth: 4900 ft., Bottom: 4900 ft., Sacks: 40, Method:
Additional Cement:String Type: 1ST , Top: 4328 ft., Depth: 4428 ft., Bottom: 4428 ft., Sacks: 50, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 4762 ft., Depth: 4800 ft., Bottom: 4842 ft., Sacks: 50, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
PARKMAN3942 ft.NN
SUSSEX4309 ft.NN
NIOBRARA7078 ft.7260 ft.NN
FORT HAYS7260 ft.7283 ft.NN
CODELL7283 ft.7300 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 10/19/2010                Interval Top: 7284 ft.    Interval Bottom: 7300 ft.

 Completed Information for Formation CODELL
1st Production Date:6/1/1992Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2010
Treatment Summary:Codell trifrac Frac'd Codell w/133839 gals Vistar and Slick Water with 245500 lbs Ottawa sand
Formation Treatment
Treatment Date:5/18/1992
Treatment Summary:FRAC W/69,552 GAL 2% KCI WTR W/ 40# GUAR & 190,000# 20/40 MESH SAND,1992. //131,864 GAL VISTAR 28/26 # GEL & 246,500 # 20/40 OTTAWA SAND,2002. // SAND PLUG SET @ 7219', 6/17/2005.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 10
CALC_BBLS_H2O 4
CALC_BBLS_OIL 20
CALC_GOR 11000
CALC_MCF_GAS 212
CASING_PRESS 350
MCF_GAS 106
TUBING_PRESS 175
Perforation Data:
Interval Top:7284 ft.# Of Holes:96
Interval Bottom:7300 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/20/2022                Interval Top: 7110 ft.    Interval Bottom: 7300 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/12/2005Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2010
Treatment Summary:Niobrara and Codell are commingled Nothing happened to Niobrara during Codell refrac
Formation Treatment
Treatment Date:5/18/1992
Treatment Summary:COMMINGLE NIOBRARA & CODELL
Tubing Size:2.375 in.Tubing Setting Depth:7258 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/10/2010Test Method:Flowing
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 7
BTU_GAS 1215
CALC_BBLS_H2O 4
CALC_BBLS_OIL 7
CALC_GOR 15000
CALC_MCF_GAS 105
CASING_PRESS 260
GRAVITY_OIL 50.2
MCF_GAS 105
TUBING_PRESS 250
Perforation Data:
Interval Top:7110 ft.# Of Holes:312
Interval Bottom:7300 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 7/27/2005                 Interval Top: 7110 ft.    Interval Bottom: 7158 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/27/2005Choke Size:0.250 in.
Formation Name:NIOBRARACommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/18/1992
Treatment Summary:PERF'D NBRR 7110'-7128' & 7140'-7158' (216 HOLES), 6/17/05. 1000 GAL 15% HCL FRAC'D NBRR W/59,472 GAL SLICKWATER, 100,170 GAL SILVERSTIM 28# GEL; 239,700# 30/50 OTTAWA SAND & 12,000# 12/20 SB EXCEL EXCEL, 7/11/05.
Tubing Size:2.875 in.Tubing Setting Depth:7052 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/27/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 7
BBLS_OIL 25
BTU_GAS 1269
CALC_BBLS_H2O 7
CALC_BBLS_OIL 25
CALC_GOR 68800
CALC_MCF_GAS 172
CASING_PRESS 150
GRAVITY_OIL 59.4
MCF_GAS 172
Perforation Data:
Interval Top:7110 ft.# Of Holes:216
Interval Bottom:7158 ft.Hole Size:0.42 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 12/20/2022                Interval Top: 4608 ft.    Interval Bottom: 4613 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/18/1994Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/18/1992
Treatment Summary:FRAC W/60,000 WTR W/CLAYTREAT W/30# GUAR& 200,840# 20/40 MESH SAND & 16,000 RESIN COAT FLUSH,1994. // CEMENT SQUEEZE ON 04/19/2002./NO TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4608 ft.# Of Holes:20
Interval Bottom:4613 ft.Hole Size:0.38 in.

Formation SX-CD                   Formation Classification:  GW                   Status:  CM - 4/19/2002                 Interval Top: 4608 ft.    Interval Bottom: 7300 ft.

 Completed Information for Formation SUSSEX-CODELL
1st Production Date:8/18/1994Choke Size:
Formation Name:SUSSEX-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/18/1992
Treatment Summary:SUSSEX TA 4/19/2002.
Tubing Size:2.375 in.Tubing Setting Depth:7272 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/1994Test Method:FLOWING
Hours Tested:4Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 10
CALC_BBLS_OIL 60
CALC_GOR 3600
CALC_MCF_GAS 216
CASING_PRESS 450
TUBING_PRESS 420
Perforation Data:
Interval Top:4608 ft.# Of Holes:52
Interval Bottom:7300 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/20/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
