COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15674		Well Classification: GW Status: PA - 7/28/2020
Well Name/No:HSR-WILDER #15-8A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/28/2020
FacilityID:247876LocationID:328195
County:WELD #123Location:SWSE 8 3N66W 6
Field:WATTENBERG - #90750Elevation:4897 ft.
Planned Location:659FSL  1977 FELLat/Long: 40.233806 / -104.798901Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.233900 / -104.798990Lat/Long Source: Field Measured

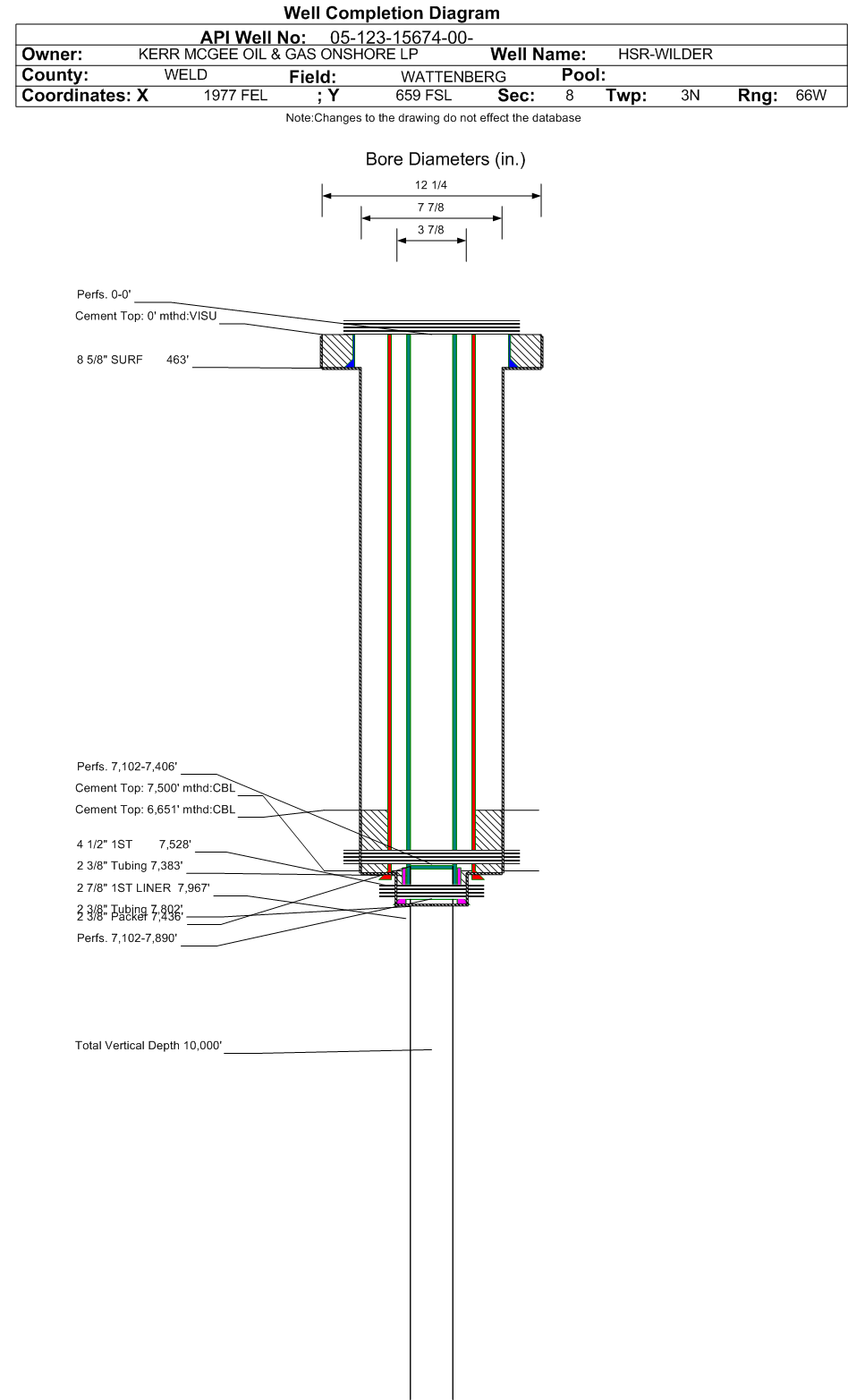

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/28/2020             Measured TD: 7967 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/28/2020
Wellbore Permit
Permit #:19990613 Expiration Date:9/2/2000
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:9/30/1999
Spud Date:4/14/1992Spud Date Is:ACTUAL
Measured TD:7967 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:CDCNGR, ISGR, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 463 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 463 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7528 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 6651 ft., Bottom: 7528 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7456 ft., Depth: 7967 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 7500 ft., Bottom: 7967 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7100 ft.NN
FORT HAYS7367 ft.NN
CODELL7387 ft.NN
J SAND7830 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/28/2020                 Interval Top: 7830 ft.

 Completed Information for Formation J SAND
1st Production Date:10/5/1999Choke Size:
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1999
Treatment Summary:FRAC'D W/560,280# 20/40 MESH; 231,588 GAL GELLED FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 5/2/2004                  Interval Top: 7102 ft.    Interval Bottom: 7890 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/5/1999Choke Size:0.406 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1999
Treatment Summary:COMMINGLED JSAND & NB-CD.
Tubing Size:2.375 in.Tubing Setting Depth:7802 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
CALC_BBLS_OIL 2
CALC_GOR 29500
CALC_MCF_GAS 59
CASING_PRESS 446
GRAVITY_OIL 57.8
MCF_GAS 59
TUBING_PRESS 307
Perforation Data:
Interval Top:7102 ft.# Of Holes:
Interval Bottom:7890 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 7/28/2020                 Interval Top: 7102 ft.    Interval Bottom: 7406 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/8/1992Choke Size:0.313 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1999
Treatment Summary:7388-7406' FRAC'D W/350,000# 20/40 MESH SAND + 75,325 GAL GELLED FLUID. 7102-7268' FRAC'D W/228,000# 20/40 MESH SAND + 69,206 GAL GELLED FLUID, 1992. // REFRAC CODL W/262,180 #20/40 MESH; 90,222 GAL.GELLED FLUID. NOT REPERF'D, 2003.
Tubing Size:2.375 in.Tubing Setting Depth:7383 ft.
Tubing Packer Depth:7456 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/23/2003Test Method:PLUNGER
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 4
CALC_BBLS_OIL 4
CALC_GOR 24250
CALC_MCF_GAS 97
CASING_PRESS 500
GRAVITY_OIL 60
MCF_GAS 97
TUBING_PRESS 325
Perforation Data:
Interval Top:7102 ft.# Of Holes:50
Interval Bottom:7406 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/28/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
