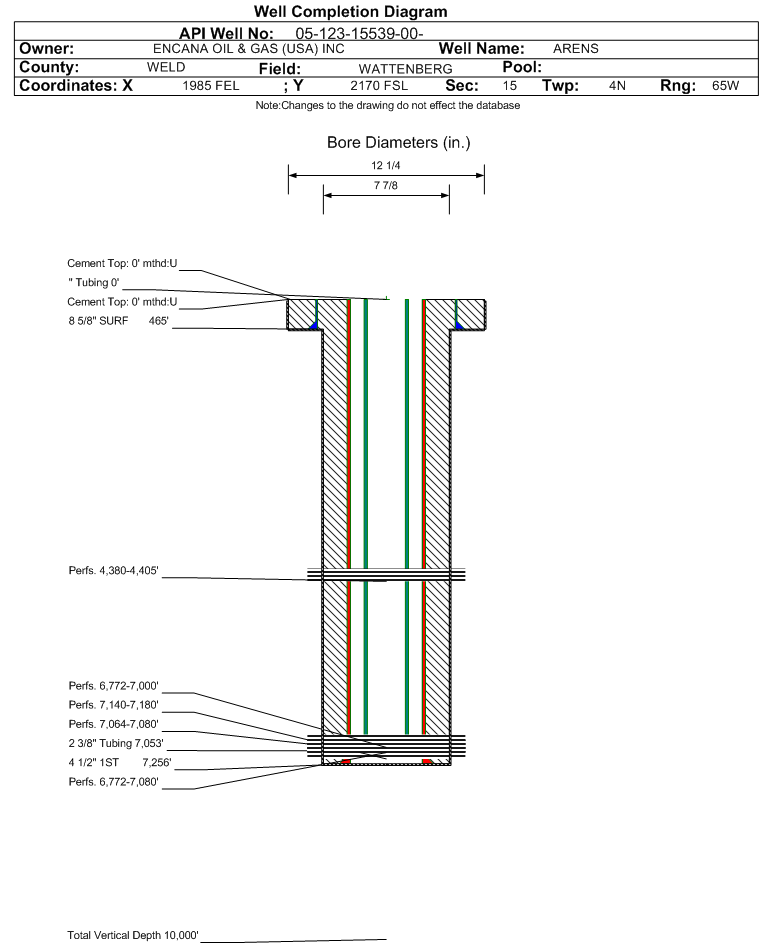

Wellbore #00 Wellbore Classification: GW Status: PR - 4/30/2012 Measured TD: 7266 ft. Vertical TD: 0 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/30/2012 | | Wellbore Permit | | | Permit #: | 20031874 | Expiration Date: | 9/29/2004 | | Proposed Depth/Form: | 7266 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: GRNHN , Formation: GREENHORN , Order: 318A , Unit Acreage: 80, Drill Unit: W/2SE | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 2 , Unit Acreage: 80, Drill Unit: W2SE | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 465 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 465 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7256 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 220, Top: 6342 ft., Bottom: 7256 ft. | | Casing: | String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 4770 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 410, Top: 3720 ft., Bottom: 4770 ft. |
| | |
| Wellbore Completed | | Completion Date: | 3/6/1992 | | Spud Date: | 1/16/1992 | Spud Date Is: | ACTUAL | | Measured TD: | 7266 ft. | Measured PB depth: | 7213 ft. | | True Vertical TD: | 0 ft. | True Vertical PB depth: | | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 465 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 150, Top: 0 ft., Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7256 ft., Weight: , Citings Type: HISTORICAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4374 ft. | | | | | NIOBRARA | 6772 ft. | | | | | FORT HAYS | 7040 ft. | | | | | CODELL | 7064 ft. | | | |
Formation GRNHN Formation Classification: GW Status: TA - 4/30/2012 Interval Top: 7140 ft. Interval Bottom: 7180 ft.| Completed Information for Formation GREENHORN | | 1st Production Date: | 10/10/2003 | Choke Size: | | | Formation Name: | GREENHORN | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/28/2011 | | Treatment Summary: | CIBP set @ 7105' to refrac and test the NB-CD. | | Formation Treatment | | Treatment Date: | 3/6/1992 | | Treatment Summary: | SEE OGCC COMMENTS |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 2 | | BBLS_OIL | 2 | | CALC_BBLS_H2O | 2 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 12000 | | CALC_MCF_GAS | 24 | | CASING_PRESS | 500 | | MCF_GAS | 24 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 7140 ft. | # Of Holes: | 160 | | Interval Bottom: | 7180 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: CM - 11/7/2012 Interval Top: 7064 ft. Interval Bottom: 7080 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 3/6/1992 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/6/2012 | | Treatment Summary: | Frac’d w/ 2720 bbls frac fluid and 194,304# sand |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7064 ft. | # Of Holes: | 32 | | Interval Bottom: | 7080 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: PR - 4/30/2012 Interval Top: 6772 ft. Interval Bottom: 7080 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 3/6/1992 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/6/2012 | | Treatment Summary: | Niobrara: 6772-7000’ - Frac’d w/ 134,609 gal frac fluid and 250,180# sand
Codell Frac: 7064-7080’ - Frac’d w/ 114,240 gal frac fluid and 194,304# sand | | Formation Treatment | | Treatment Date: | 3/6/1992 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7053 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/11/2012 | Test Method: | FLOW | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 39 | | BBLS_OIL | 40 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 39 | | CALC_BBLS_OIL | 40 | | CALC_GOR | 5750 | | CALC_MCF_GAS | 230 | | CASING_PRESS | 590 | | GRAVITY_OIL | 61 | | MCF_GAS | 230 | | TUBING_PRESS | 530 |
| | Perforation Data: | | Interval Top: | 6772 ft. | # Of Holes: | 200 | | Interval Bottom: | 7080 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: GW Status: CM - 9/11/2012 Interval Top: 6772 ft. Interval Bottom: 7000 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 3/6/1992 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/26/2011 | | Treatment Summary: | Frac’d w/ 3205 bbls frac fluid and 250,180# sand
| | Formation Treatment | | Treatment Date: | 3/6/1992 | | Treatment Summary: | PERF'D THE NIOBRARA FROM 6790'-6820', 6970'-7000' W/2 SPF. SET CIBP @7058'. MIX AND PLACE 1 SACK OF CEMENT ON CIBP. SET PKR. SET RBP @ 7030. PLACE 5 GL OF SAND ON RBP. TEST IN FRAC STRING. FRAC'D W/116,088 GAL FRAC FLUID AND 203,320# 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | SHALE | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 19 | | BBLS_OIL | 7 | | CALC_BBLS_H2O | 19 | | CALC_BBLS_OIL | 7 | | CALC_GOR | 13714 | | CALC_MCF_GAS | 95 | | CASING_PRESS | 990 | | MCF_GAS | 96 |
| | Perforation Data: | | Interval Top: | 6772 ft. | # Of Holes: | 168 | | Interval Bottom: | 7000 ft. | Hole Size: | 0.33 in. |
|
Formation SUSX Formation Classification: GW Status: AB - 4/30/2012 Interval Top: 4380 ft. Interval Bottom: 4405 ft.| Completed Information for Formation SUSSEX | | 1st Production Date: | 1/29/1993 | Choke Size: | | | Formation Name: | SUSSEX | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 1/25/2008 | | Treatment Summary: | Squeeze Sussex Perf (1/25/02)
Squeeze w/ 50 sxs premium cement
| | Formation Treatment | | Treatment Date: | 3/6/1992 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation SUSX. |
| | Perforation Data: | | Interval Top: | 4380 ft. | # Of Holes: | 50 | | Interval Bottom: | 4405 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 94 |
| Total Gas Produced (MCF) | 7277 |
| GOR | 77414 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.684 |
| Average MCFE per Day | 21.396 |
| Federal Financial Assurance | i | |
|
|
