COGIS - WELL SCOUT CARD

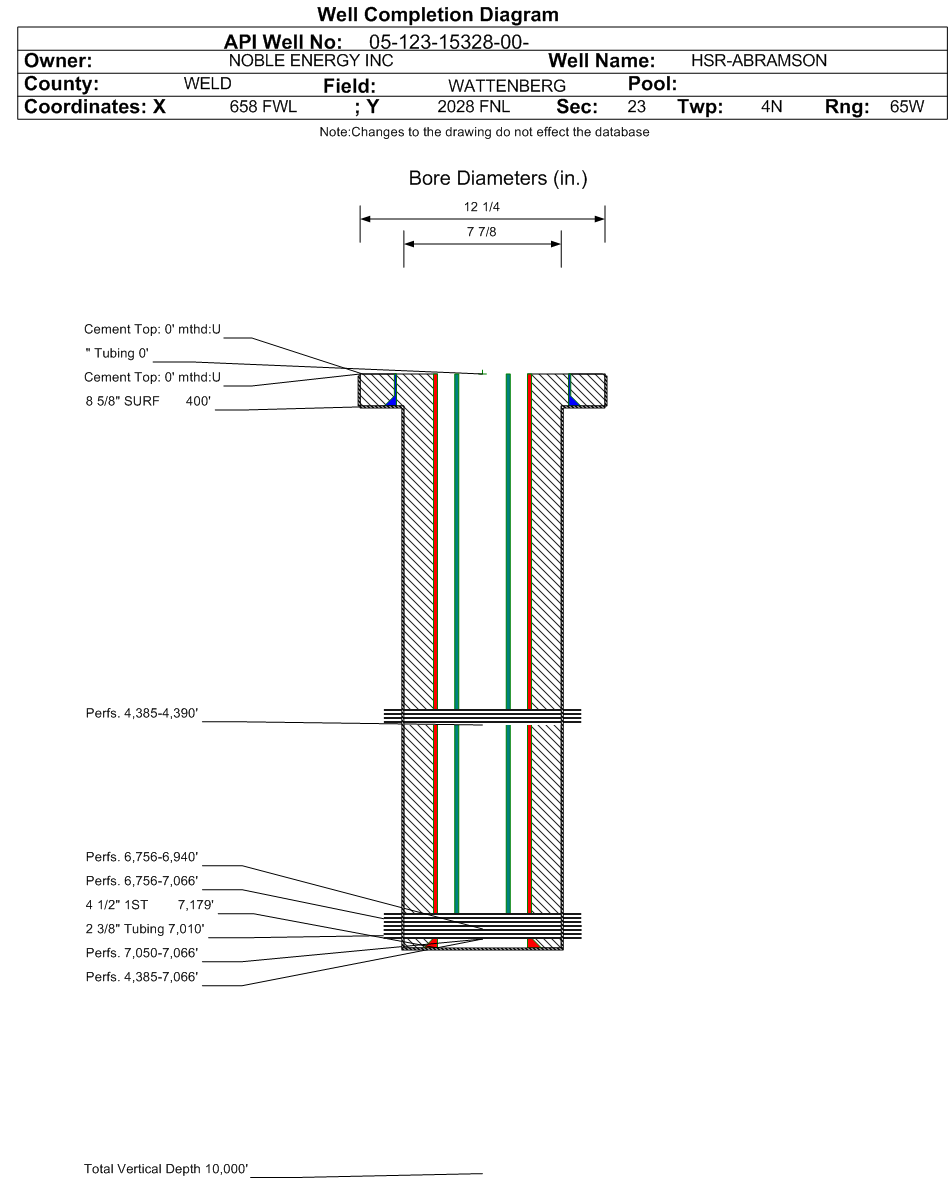

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15328		Well Classification: GW Status: PA - 5/5/2022
Well Name/No:HSR-ABRAMSON #5-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:67683
Facility Status:PAStatus Date5/5/2022
FacilityID:247531LocationID:327927
County:WELD #123Location:SWNW 23 4N65W 6
Field:WATTENBERG - #90750Elevation:4703 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2028FNL  658 FWLLat/Long: 40.299526 / -104.637447Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.299620 / -104.637450Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 5/5/2022             Measured TD: 7193 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 5/5/2022
Wellbore Permit
Permit #:911018 Expiration Date:10/8/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:2/7/1992
Spud Date:1/2/1992Spud Date Is:ACTUAL
Measured TD:7193 ft.Measured PB depth:7121 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 411 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 0 ft., Bottom: 411 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7190 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 6256 ft., Bottom: 7190 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7190 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 315, Top: 3706 ft., Bottom: 5074 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4380 ft.
NIOBRARA6754 ft.
FORT HAYS7026 ft.
CODELL7049 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/25/2020                 Interval Top: 7050 ft.    Interval Bottom: 7066 ft.

 Completed Information for Formation CODELL
1st Production Date:2/7/1992Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/4/2007
Treatment Summary:NEW PERFS FROM 7050-7066. 16 NEW PERFS. 39 TOTAL PERFS. TRIFRAC CODELL W/ 261,000 LBS 20/40, 4000 LBS 20/40 RESIN COATED SAND, 120,000 GALS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7050 ft.# Of Holes:65
Interval Bottom:7066 ft.Hole Size:0.45 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 5/5/2022                  Interval Top: 6756 ft.    Interval Bottom: 7066 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/7/1992Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6756 ft.# Of Holes:85
Interval Bottom:7066 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/25/2020                 Interval Top: 6756 ft.    Interval Bottom: 6940 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/7/1992Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/7/1992
Treatment Summary:NO ADDITIONAL TREATMENT
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6756 ft.# Of Holes:20
Interval Bottom:6940 ft.Hole Size:0.38 in.

Formation NBCSX                   Formation Classification:  GW                   Status:  CM - 3/18/2008                 Interval Top: 4385 ft.    Interval Bottom: 7066 ft.

 Completed Information for Formation NIOBRARA-CODELL-SUSSEX
1st Production Date:1/2/2008Choke Size:0.500 in.
Formation Name:NIOBRARA-CODELL-SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/7/1992
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7010 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/18/2008Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1254
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 12500
CALC_MCF_GAS 75
CASING_PRESS 325
GRAVITY_OIL 51
TUBING_PRESS 325
Perforation Data:
Interval Top:4385 ft.# Of Holes:71
Interval Bottom:7066 ft.Hole Size:0.45 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 5/5/2022                  Interval Top: 4385 ft.    Interval Bottom: 4390 ft.

 Completed Information for Formation SUSSEX
1st Production Date:11/22/1994Choke Size:
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/7/1992
Treatment Summary:NO ADDITIONAL TREATMENT
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4385 ft.# Of Holes:12
Interval Bottom:4390 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/05/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
