COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15309		Well Classification: GW Status: PA - 12/29/2020
Well Name/No:HSR-FRISBIE #16-29A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/29/2020
FacilityID:247512LocationID:311368
County:WELD #123Location:SESE 29 4N65W 6
Field:WATTENBERG - #90750Elevation:4890 ft.
Basin:DENVER (DJ) BASIN
Planned Location:745FSL  749 FELLat/Long: 40.278046 / -104.680258Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.278040 / -104.680570Lat/Long Source: Field Measured

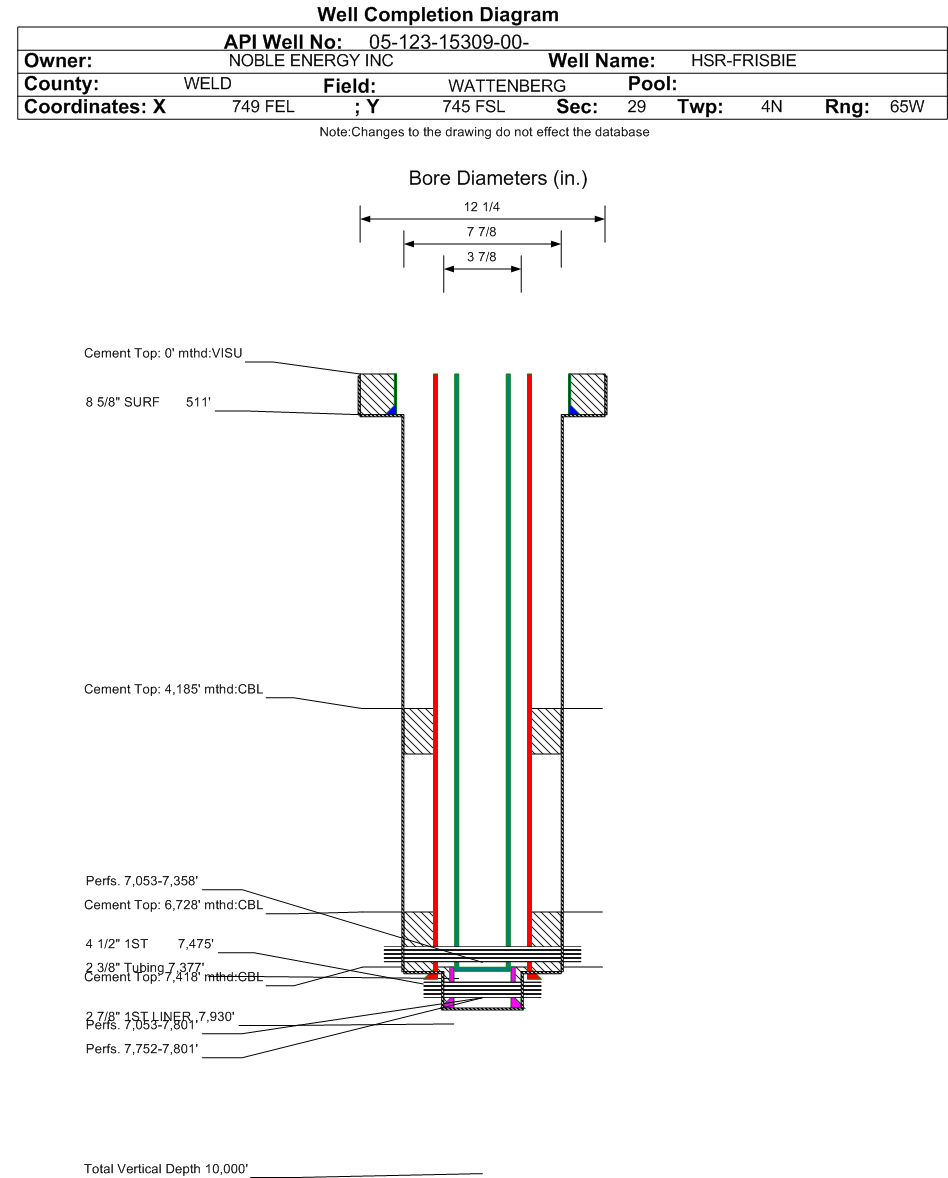

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/29/2020             Measured TD: 7930 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/29/2020
Wellbore Permit
Permit #:010036 Expiration Date:1/8/2002
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NBFHC , Formation: NIOBRARA-FT HAYS-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2SE
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 511 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 370, Top: 0 ft., Bottom: 511 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7475 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 370, Top: 4184 ft., Bottom: 7475 ft.
Wellbore Completed
Completion Date:2/1/2001
Spud Date:10/24/1991Spud Date Is:ACTUAL
Measured TD:7930 ft.Measured PB depth:7905 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SAAILC, SACNLD, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 511 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 511 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7475 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 235, Top: 6728 ft., Bottom: 7475 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4753 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 4185 ft., Bottom: 4753 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7418 ft., Depth: 7930 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 40, Top: 7418 ft., Bottom: 7930 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7050 ft.NN
FORT HAYS7321 ft.NN
CODELL7343 ft.NN
J SAND7740 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/29/2020                Interval Top: 7752 ft.    Interval Bottom: 7801 ft.

 Completed Information for Formation J SAND
1st Production Date:2/10/2001Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7752 ft.# Of Holes:
Interval Bottom:7801 ft.Hole Size:

Formation JNFHC                   Formation Classification:  GW                   Status:  CM - 12/13/2000                Interval Top: 7053 ft.    Interval Bottom: 7801 ft.

 Completed Information for Formation J-NIOBRARA-FT HAYS-CODELL
1st Production Date:N/AChoke Size:0.344 in.
Formation Name:J-NIOBRARA-FT HAYS-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/1/2001
Treatment Summary:FRAC'D J SAND W/560040# 20/40 MESH; 236748 GAL. GELLED FLUID J SAND PERFS: 7752'-7801 COMMINGLED WITH NBFHC
Tubing Size:2.375 in.Tubing Setting Depth:7377 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/31/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 6
CALC_BBLS_OIL 6
CALC_GOR 55167
CALC_MCF_GAS 331
CASING_PRESS 400
GRAVITY_OIL 60
MCF_GAS 331
TUBING_PRESS 225
Perforation Data:
Interval Top:7053 ft.# Of Holes:
Interval Bottom:7801 ft.Hole Size:

Formation NBFHC                   Formation Classification:  GW                   Status:  AB - 12/29/2020                Interval Top: 7053 ft.    Interval Bottom: 7358 ft.

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:11/15/1991Choke Size:1,064.000 in.
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBFHC.
Perforation Data:
Interval Top:7053 ft.# Of Holes:
Interval Bottom:7358 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/29/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
