COGIS - WELL SCOUT CARD

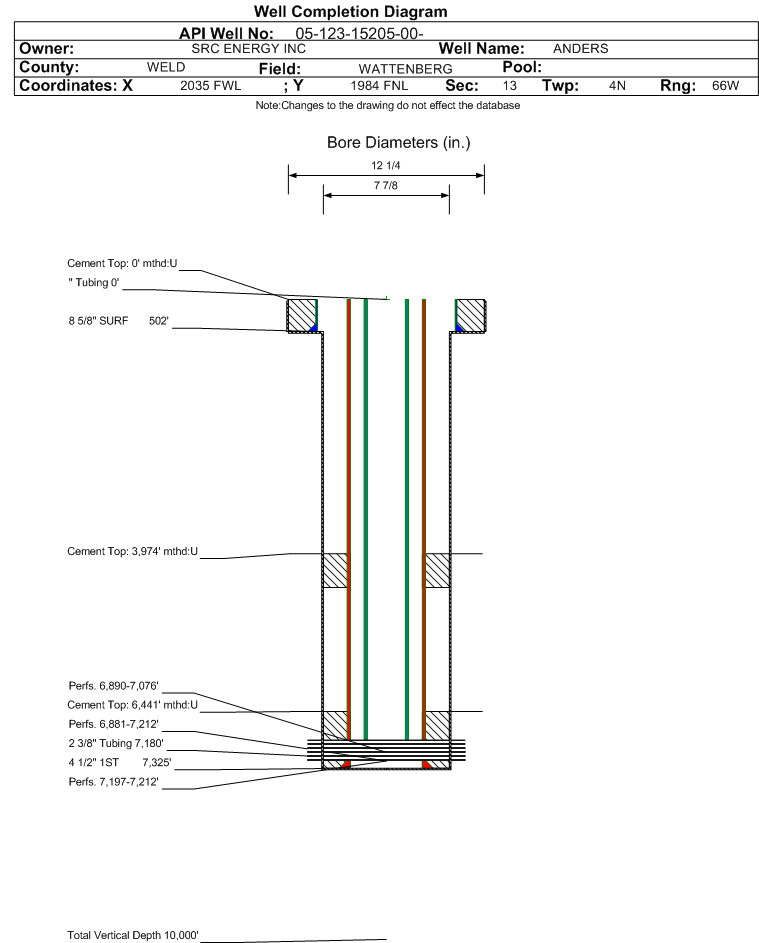

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15205		Well Classification: GW Status: PA - 12/6/2019
Well Name/No:ANDERS #13-6F
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:63177
Facility Status:PAStatus Date12/6/2019
FacilityID:247408LocationID:327828
County:WELD #123Location:SENW 13 4N66W 6
Field:WATTENBERG - #90750Elevation:4717 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1984FNL  2035 FWLLat/Long: 40.313906 / -104.727700Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.313457 / -104.727704Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/6/2019             Measured TD: 7325 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/6/2019
Wellbore Permit
Permit #:910800 Expiration Date:1/3/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2NW
Wellbore Completed
Completion Date:10/23/1991
Measured TD:7325 ft.Measured PB depth:7282 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 502 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 502 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7325 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6440 ft., Bottom: 7325 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4600 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 3974 ft., Bottom: 4500 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3672 ft.
SUSSEX4122 ft.
NIOBRARA6876 ft.
FORT HAYS7174 ft.
CODELL7195 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/4/2008                  Interval Top: 7197 ft.    Interval Bottom: 7212 ft.

 Completed Information for Formation CODELL
1st Production Date:3/24/2008Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/15/2008
Treatment Summary:TRI-FRAC'D CODL W/ 138,978 GALS VISTAR W/246,575# OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7197 ft.# Of Holes:60
Interval Bottom:7212 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/1/2005                  Interval Top: 6890 ft.    Interval Bottom: 7076 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/27/2004Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/23/1991
Treatment Summary:DRILL OUT PLUG AND COMMINGLE W/CODELL, 3/1/05.
Tubing Size:2.375 in.Tubing Setting Depth:7180 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/17/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 5
BTU_GAS 1193
CALC_BBLS_H2O 3
CALC_BBLS_OIL 5
CALC_GOR 34000
CALC_MCF_GAS 170
CASING_PRESS 200
GRAVITY_OIL 61
MCF_GAS 170
TUBING_PRESS 125
Perforation Data:
Interval Top:6890 ft.# Of Holes:216
Interval Bottom:7076 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/6/2019                 Interval Top: 6881 ft.    Interval Bottom: 7212 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.344 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/23/1991
Treatment Summary:COMMINGLE CODL & NBRR
Tubing Size:2.375 in.Tubing Setting Depth:7180 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/4/2008Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 6
BTU_GAS 1223
CALC_GOR 47166
CASING_PRESS 450
GRAVITY_OIL 50
MCF_GAS 283
TUBING_PRESS 420
Perforation Data:
Interval Top:6881 ft.# Of Holes:276
Interval Bottom:7212 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/06/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
