COGIS - WELL SCOUT CARD

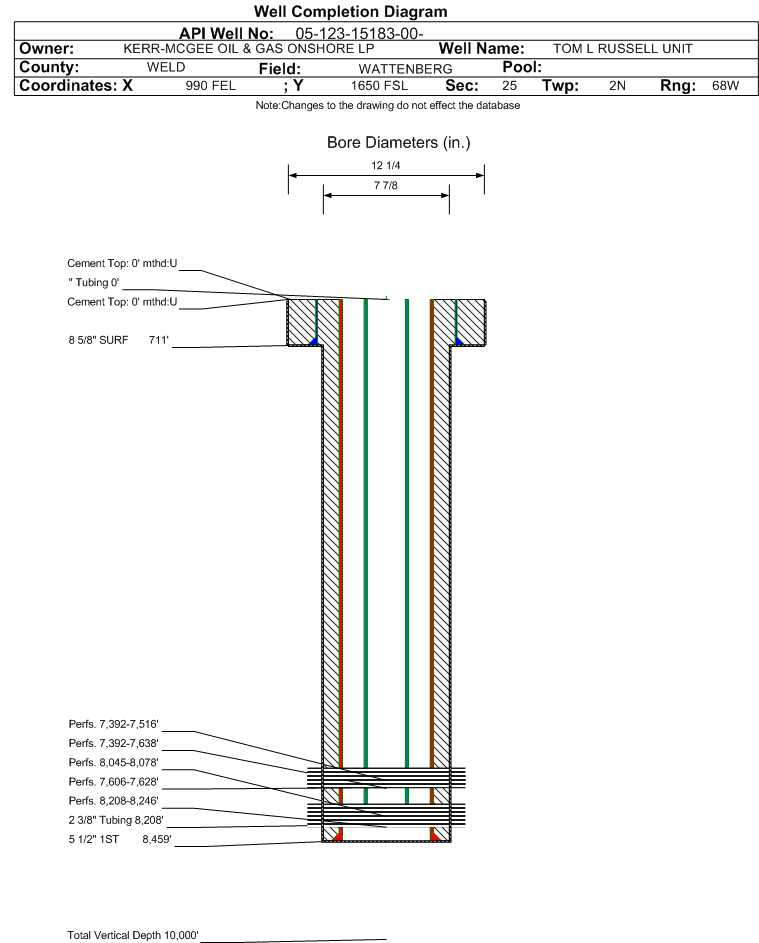

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15183		Well Classification: GW Status: PA - 1/17/2024
Well Name/No:TOM L RUSSELL UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/17/2024
FacilityID:247386LocationID:327812
Municipality/County:FREDERICK / WELD #123Location:NESE 25 2N68W 6
Field:WATTENBERG - #90750Elevation:4989 ft.
Planned Location:1650FSL  990 FELLat/Long: 40.106769 / -104.945795Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.106768 / -104.945802Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 11/4/2011
End Date: 11/4/2011
Reported: 12/7/2011
Prior to rule 205A.b.(2)(A)
Days to report: 33
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 1/17/2024             Measured TD: 8459 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 1/17/2024
Wellbore Permit
Permit #: Expiration Date:8/13/2013
Proposed Depth/Form:8459 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-125 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: , Unit Acreage: , Drill Unit: E2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: E2
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 711 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 550, Top: 0 ft., Bottom: 711 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8459 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 875, Top: 4442 ft., Bottom: 8459 ft.
Wellbore Completed
Completion Date:2/7/1997
Spud Date:9/6/1991Spud Date Is:ACTUAL
Measured TD:8459 ft.Measured PB depth:8415 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL, SP, GR, CAL, CNL, LDT
Log Types:SP-IES, FDC-GR CALIPER, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 711 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 711 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8459 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 875, Top: 4490 ft., Bottom: 8459 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4400 ft.NN
SHANNON5014 ft.NN
NIOBRARA7300 ft.NN
CODELL7606 ft.NN
J SAND8041 ft.NN
DAKOTA8208 ft.NN

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 10/17/1992                Interval Top: 8208 ft.    Interval Bottom: 8246 ft.

 Completed Information for Formation DAKOTA
1st Production Date:11/27/1991Choke Size:
Formation Name:DAKOTACommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:2/7/1997
Treatment Summary:FRAC DOWN CASING. pAD 17,514 GALS W/ 35# GEL. PUMP 26,934 GALS W/ 35# GEL & 170,286# 20-40 SAND. FLUSH W/ 79 BBLS. ATP 3,570 PSI. AIR 27.1 BPM.
Tubing Size:2.375 in.Tubing Setting Depth:8208 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/8/1992Test Method:FLOWING
Hours Tested:1.1Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0.46
BBLS_OIL 0.09
CALC_BBLS_H2O 10
CALC_BBLS_OIL 2
CALC_MCF_GAS 43
CASING_PRESS 1107
MCF_GAS 1.97
TUBING_PRESS 1000
Perforation Data:
Interval Top:8208 ft.# Of Holes:152
Interval Bottom:8246 ft.Hole Size:0.5 in.

Formation JSND                     Formation Classification:  OG                     Status:  AB - 1/17/2024                 Interval Top: 8045 ft.    Interval Bottom: 8078 ft.

 Completed Information for Formation J SAND
1st Production Date:10/17/1992Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/14/2011
Treatment Summary:SET SAND PLUG @ 7680-8095
Formation Treatment
Treatment Date:2/7/1997
Treatment Summary:FRAC DOWN CASING. PUMP 182,298 GALS 35# GEL & 357,850# 20-40 SAND. FLUSH W/ 182 BBLS 2% KCL. ATP 1900 PSI. AIR 35 BPM
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 12
CALC_BBLS_H2O 14
CALC_BBLS_OIL 12
CALC_GOR 62916
CALC_MCF_GAS 755
CASING_PRESS 754
MCF_GAS 755
TUBING_PRESS 607
Perforation Data:
Interval Top:8045 ft.# Of Holes:132
Interval Bottom:8078 ft.Hole Size:

Formation CODL                     Formation Classification:  OG                     Status:  CM - 12/12/2011                Interval Top: 7606 ft.    Interval Bottom: 7628 ft.

 Completed Information for Formation CODELL
1st Production Date:5/7/1996Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/4/2011
Treatment Summary:Re-Frac Codell down 2-7/8" Tbg w/ Pkr ^ Nio w/ 207,014 gal Slickwater w/ 150,698# 40/70, 4,000# SB Excel. HOLE SIZE N/A
Formation Treatment
Treatment Date:2/7/1997
Treatment Summary:DIVERTAFRAC: PUMPED 71 BBLS POLYMER GEL & 213 BBLS GEL W/ 4,500# 20-40 SAND. FLUSHED W/ 106 BBLS 2% KCL. CODL FRAC: PUMPED 386 BBLS GEL & 893 BBLS GEL W/ 175,000 FLUSHED W/ 33 BBLS 2% KCL. MAX PSI: 5660, MAX RATE: 17.66 BPM
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 135
BBLS_OIL 63
CALC_BBLS_H2O 135
CALC_BBLS_OIL 63
CALC_GOR 1174.6
CALC_MCF_GAS 74
CASING_PRESS 794
MCF_GAS 74
TUBING_PRESS 485
Perforation Data:
Interval Top:7606 ft.# Of Holes:88
Interval Bottom:7628 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  OG                   Status:  AB - 1/17/2024                 Interval Top: 7392 ft.    Interval Bottom: 7638 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/17/2011Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/4/2011
Treatment Summary:CDRF-NBREC
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/4/2011Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 3
BTU_GAS 1243
CALC_BBLS_OIL 3
CALC_GOR 4333
CALC_MCF_GAS 13
CASING_PRESS 2000
GRAVITY_OIL 51
MCF_GAS 13
Perforation Data:
Interval Top:7392 ft.# Of Holes:146
Interval Bottom:7638 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OG                     Status:  CM - 12/14/2011                Interval Top: 7392 ft.    Interval Bottom: 7516 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/17/2011Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/4/2011
Treatment Summary:Frac Niobrara B & C down 2-7/8" Tbg w/ Pkr ^ Nio w/ 250 gal 15% HCl & 194,756 gal Slickwater w/ 108,002# 40/70, 4,000# SB Excel.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7392 ft.# Of Holes:58
Interval Bottom:7516 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/17/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
