COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15114		Well Classification: GW Status: PA - 5/17/2023
Well Name/No:MEGAN H #16-2J
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/17/2023
FacilityID:247317LocationID:327755
County:WELD #123Location:NENW 16 3N65W 6
Field:WATTENBERG - #90750Elevation:4847 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1320FNL  1280 FWLLat/Long: 40.229067 / -104.673367Lat/Long Source: Calculated From Footages
As Drilled Location:1283 FNL  1642 FWLLat/Long: 40.229129 / -104.671869Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

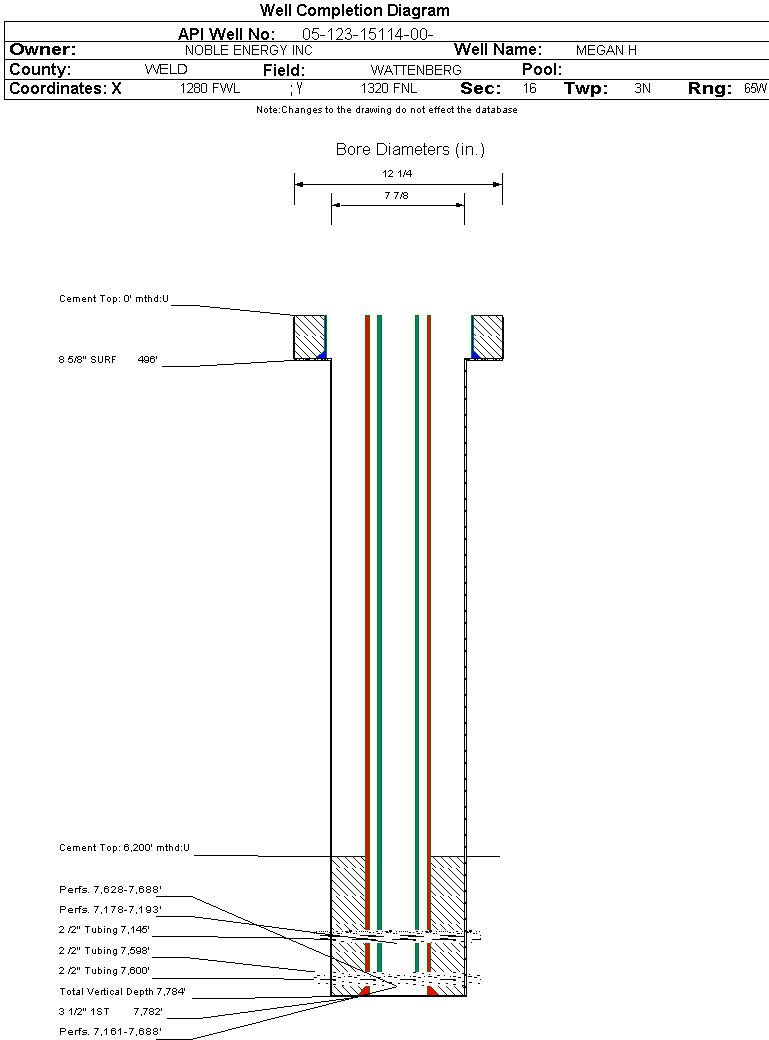

Wellbore #00             Wellbore Classification: GW             Status: PA - 5/17/2023             Measured TD: 7784 ft.    Vertical TD: 7784 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 5/17/2023
Wellbore Permit
Permit #:19910623 Expiration Date:3/18/2002
Proposed Depth/Form:7193 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 318A , Unit Acreage: 160, Drill Unit: NW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:9/13/1991
Spud Date:8/18/1991Spud Date Is:ACTUAL
Measured TD:7784 ft.Measured PB depth:7779 ft.
True Vertical TD:7784 ft.True Vertical PB depth:7779 ft.
Log Types:CBL, CDL, DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 496 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 496 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7592 ft., Weight: 9.3 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 3610 ft., Bottom: 7592 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4392 ft.NN
NIOBRARA6870 ft.NN
CODELL7178 ft.NN
J SAND7626 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 5/17/2023                 Interval Top: 7628 ft.    Interval Bottom: 7688 ft.

 Completed Information for Formation J SAND
1st Production Date:9/13/1991Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/13/1991
Treatment Summary:137,772 GAL FLUID & 405,000# 20/40 SAND,8/30/1991.UNDER RBP SET @ 7590', 8/9/04, WILL COMMINGLE LATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 2
CALC_BBLS_H2O 12
CALC_BBLS_OIL 2
CALC_GOR 92000
CALC_MCF_GAS 184
CASING_PRESS 925
MCF_GAS 184
TUBING_PRESS 775
Perforation Data:
Interval Top:7628 ft.# Of Holes:48
Interval Bottom:7688 ft.Hole Size:0.32 in.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 5/17/2023                 Interval Top: 7178 ft.    Interval Bottom: 7193 ft.

 Completed Information for Formation CODELL
1st Production Date:6/6/2001Choke Size:
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/13/1991
Treatment Summary:130,032 GALS VISTAR FLUID & 270,260# 20/40 SAND,5/2/2001. // REPERF CODELL 7179'-7193' (56 HOLES) REFRAC CODELL W/133,182 GAL VISTAR 24/25/26# GEL & 246,280# 20/40 SAND, 8/19/04
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 7
BTU_GAS 1112
CALC_BBLS_H2O 3
CALC_BBLS_OIL 7
CALC_GOR 25714
CALC_MCF_GAS 180
CASING_PRESS 300
GRAVITY_OIL 60.8
MCF_GAS 180
TUBING_PRESS 220
Perforation Data:
Interval Top:7178 ft.# Of Holes:116
Interval Bottom:7193 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/28/2006                 Interval Top: 7161 ft.    Interval Bottom: 7688 ft.

 Completed Information for Formation J-CODELL
1st Production Date:5/16/2002Choke Size:0.375 in.
Formation Name:J-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/13/1991
Treatment Summary:COMMINGLE CODELL & J SAND
Tubing Size:2.0625 in.Tubing Setting Depth:7598 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/28/2006Test Method:FLOWING
Hours Tested:12Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 2
BTU_GAS 1270
CALC_BBLS_H2O 30
CALC_BBLS_OIL 4
CALC_GOR 20000
CALC_MCF_GAS 80
CASING_PRESS 440
GRAVITY_OIL 60
MCF_GAS 40
TUBING_PRESS 220
Perforation Data:
Interval Top:7161 ft.# Of Holes:
Interval Bottom:7688 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/17/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
