COGIS - WELL SCOUT CARD

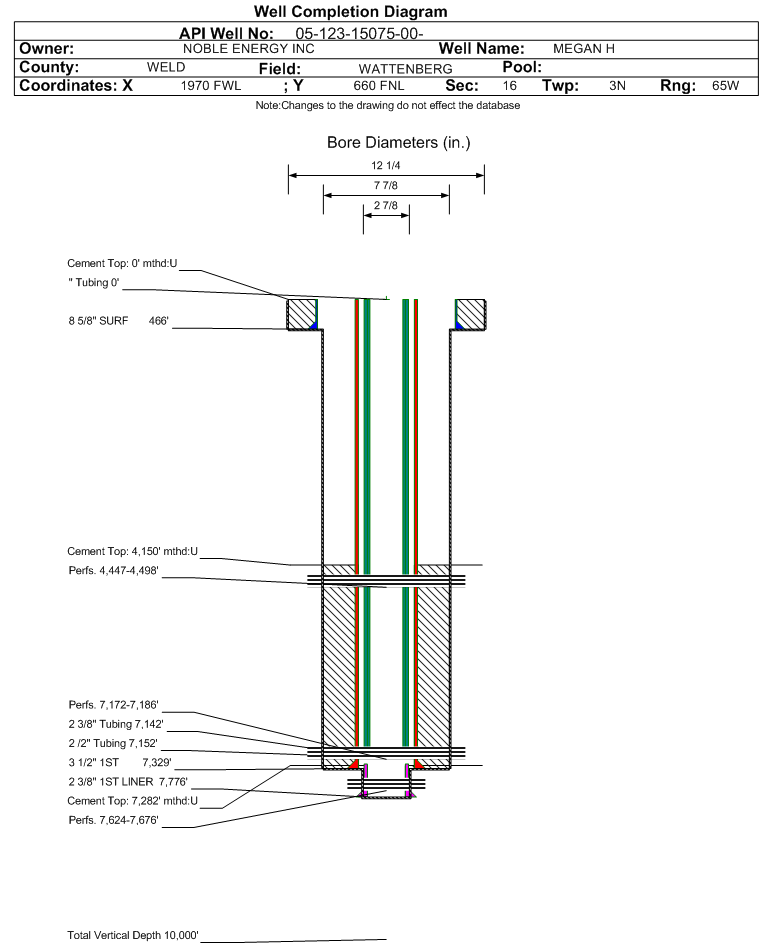

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15075		Well Classification: OW Status: PA - 1/13/2025
Well Name/No:MEGAN H #16-03
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/13/2025
FacilityID:247278LocationID:327724
County:WELD #123Location:NENW 16 3N65W 6
Field:WATTENBERG - #90750Elevation:4832 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1970 FWLLat/Long: 40.230867 / -104.670907Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.230886 / -104.670719Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 1/13/2025             Measured TD: 7777 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 1/13/2025
Wellbore Permit
Permit #:20061136 Expiration Date:4/12/2007
Proposed Depth/Form:7780 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NW
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:7/20/1991
Spud Date:7/15/1991Spud Date Is:ACTUAL
Measured TD:7777 ft.Measured PB depth:7313 ft.
True Vertical TD:True Vertical PB depth:
Log Types:MICROLOG, CFD-GR, GR/SONIC/COLLAR
Log Types:CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 466 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 240, Top: 0 ft., Bottom: 466 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 7329 ft., Weight: 9.3 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 4150 ft., Bottom: 7329 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 4447 ft., Weight: 9.3 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4447 ft., Bottom: 4498 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 3452 ft., Weight: 9.3 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 3120 ft., Bottom: 3471 ft., Determination Method: CALC
Casing:String Type: 1ST LINER, Hole Size: 2.875 in., Size: 2.375 in., Top: 7260 ft., Depth: 7776 ft., Weight: 4.7 , Citings Type: ACTUAL
Cement:Sacks: 4, Top: 7282 ft., Bottom: 7776 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 4447 ft., Depth: , Bottom: 4498 ft., Sacks: 200, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 3452 ft., Depth: , Bottom: 3471 ft., Sacks: 150, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
SUSSEX4392 ft.NN
NIOBRARA6865 ft.NN
CODELL7170 ft.NN
J SAND7624 ft.

Formation JSND                     Formation Classification:  OW                     Status:  AB - 1/13/2025                 Interval Top: 7624 ft.    Interval Bottom: 7676 ft.

 Completed Information for Formation J SAND
1st Production Date:10/21/2006Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/9/2006
Treatment Summary:FRAC'D WIH 132,132 GALS OF SILVERSTEM 24# GEL LOADING AND 435,480# OF 20/40 SAND AND 12,000# OF 16-30 SB EXCEL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 0
BTU_GAS 1195
CALC_BBLS_H2O 20
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 136
CASING_PRESS 360
GRAVITY_OIL 63
MCF_GAS 136
TUBING_PRESS 170
Perforation Data:
Interval Top:7624 ft.# Of Holes:112
Interval Bottom:7676 ft.Hole Size:0.18 in.

Formation CODL                     Formation Classification:  OW                     Status:  AB - 1/13/2025                 Interval Top: 7172 ft.    Interval Bottom: 7186 ft.

 Completed Information for Formation CODELL
1st Production Date:9/20/1991Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/20/1991
Treatment Summary:6/2002:132,522 GAL VISTAR 28/26# GEL & 245,140# 20/40 OTTAWA SAND. 9/1991:72,940 GALS MY-T-FRAC W/ 200,000# 20/40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 17
CALC_BBLS_H2O 4
CALC_BBLS_OIL 34
CALC_GOR 19000
CALC_MCF_GAS 644
CASING_PRESS 1000
MCF_GAS 322
TUBING_PRESS 1000
Perforation Data:
Interval Top:7172 ft.# Of Holes:56
Interval Bottom:7186 ft.Hole Size:

Formation SUSX                     Formation Classification:  OW                     Status:  AB - 2/1/2017                  Interval Top: 4447 ft.    Interval Bottom: 4498 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/22/1992Choke Size:0.281 in.
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:9/20/1991
Treatment Summary:SQUEEZE W/200 SX CLASS G 15.8# CEMENT ON 5/14/02
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 2
CALC_BBLS_H2O 20
CALC_BBLS_OIL 2
CALC_GOR 315000
CALC_MCF_GAS 630
CASING_PRESS 500
MCF_GAS 630
Perforation Data:
Interval Top:4447 ft.# Of Holes:60
Interval Bottom:4498 ft.Hole Size:0.32 in.

Formation SX-CD                   Formation Classification:  OW                   Status:  CM - 5/14/2002

 Completed Information for Formation SUSSEX-CODELL
1st Production Date:8/18/1992Choke Size:0.281 in.
Formation Name:SUSSEX-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/20/1991
Treatment Summary:SEE INDIVIDUAL FORMATIONS FOR DETAILS. SUSX IS ABD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/18/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 5
CALC_BBLS_H2O 8
CALC_BBLS_OIL 5
CALC_GOR 110000
CALC_MCF_GAS 550
CASING_PRESS 400
MCF_GAS 550
No Perforation Data was found for formation SX-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/13/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
