COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15022		Well Classification: GW Status: PA - 1/20/2023
Well Name/No:HSR JANA #11-6A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/20/2023
FacilityID:247225LocationID:327683
County:WELD #123Location:NESW 6 3N65W 6
Field:WATTENBERG - #90750Elevation:4980 ft.
Planned Location:1950FSL  1980 FWLLat/Long: 40.252466 / -104.708508Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.252403 / -104.708474Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/20/2023             Measured TD: 7985 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/20/2023
Wellbore Permit
Permit #:20000271 Expiration Date:3/20/2001
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SW
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:8/1/2000
Spud Date:5/25/1991Spud Date Is:ACTUAL
Measured TD:7985 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:CDCNGR, ISGR, CBL

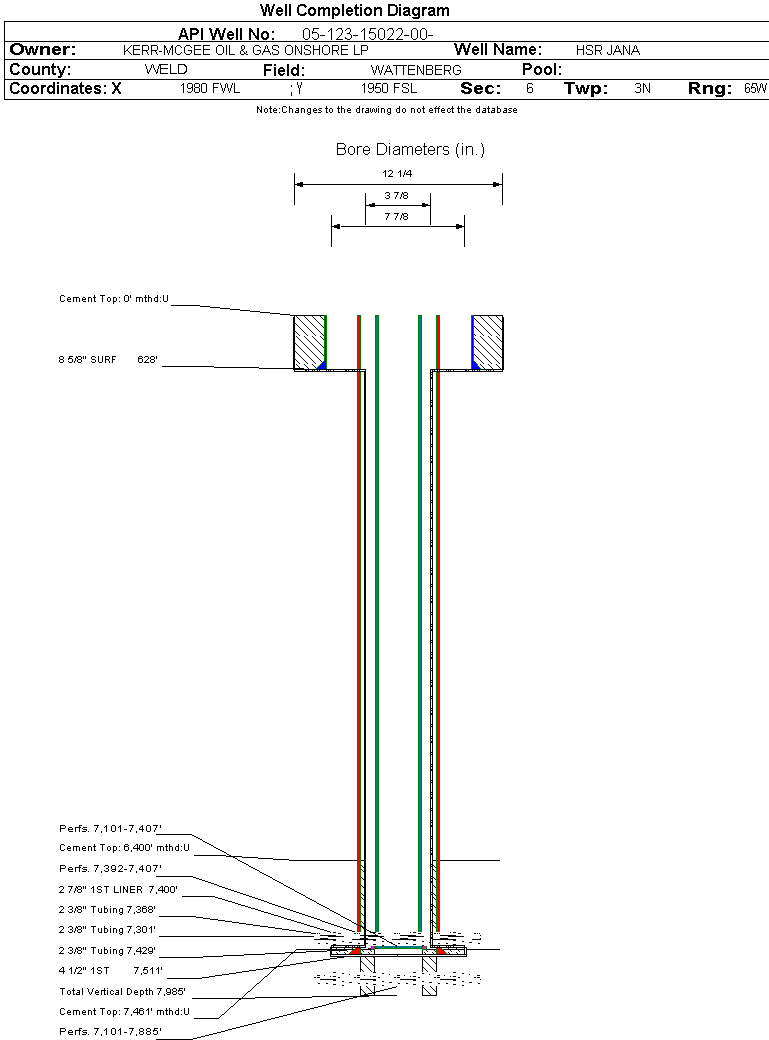

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 639 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 639 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7511 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 6370 ft., Bottom: 7511 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7461 ft., Depth: 7980 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 30, Top: 7461 ft., Bottom: 7986 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7100 ft.NN
FORT HAYS7378 ft.NN
CODELL7390 ft.NN
J SAND7845 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/20/2023                 Interval Top: 7865 ft.    Interval Bottom: 7885 ft.

 Completed Information for Formation J SAND
1st Production Date:9/16/2000Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/1/2000
Treatment Summary:FRAC'D J SAND W/385,560# 20/40 MESH; 165,144 GAL. GELLED FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7865 ft.# Of Holes:60
Interval Bottom:7885 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/26/2001                 Interval Top: 7392 ft.    Interval Bottom: 7407 ft.

 Completed Information for Formation CODELL
1st Production Date:6/14/1991Choke Size:0.156 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/1/2000
Treatment Summary:311,000# 20/40 MESH SAND + 70,898 GALS. GELLED FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7301 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/17/1991Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 33
CALC_BBLS_OIL 33
CALC_GOR 10485
CALC_MCF_GAS 346
CASING_PRESS 2350
GRAVITY_OIL 60
MCF_GAS 346
TUBING_PRESS 2000
Perforation Data:
Interval Top:7392 ft.# Of Holes:30
Interval Bottom:7407 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 9/16/2000                 Interval Top: 7101 ft.    Interval Bottom: 7885 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:8/9/2000Choke Size:0.219 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:8/1/2000
Treatment Summary:COMMINGLE J SAND WITH NIOBRARA-CODELL
Tubing Size:2.375 in.Tubing Setting Depth:7429 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2000Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 9
CALC_BBLS_OIL 9
CALC_GOR 53000
CALC_MCF_GAS 477
CASING_PRESS 660
GRAVITY_OIL 60
MCF_GAS 477
TUBING_PRESS 535
Perforation Data:
Interval Top:7101 ft.# Of Holes:
Interval Bottom:7885 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/20/2023                 Interval Top: 7101 ft.    Interval Bottom: 7407 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/18/1992Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/1/2000
Treatment Summary:7392'-7407' 311,000# 20/40 MESH SAND + 70,898 GALS. GELLED FLUID // 7101'-7278' 228,000# 20/40 MESH SAND + 70,292 GALS. GELLED FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 13
CALC_BBLS_OIL 13
CALC_GOR 18769
CALC_MCF_GAS 244
CASING_PRESS 1500
GRAVITY_OIL 60
MCF_GAS 244
TUBING_PRESS 1250
Perforation Data:
Interval Top:7101 ft.# Of Holes:50
Interval Bottom:7407 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/20/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
