COGIS - WELL SCOUT CARD

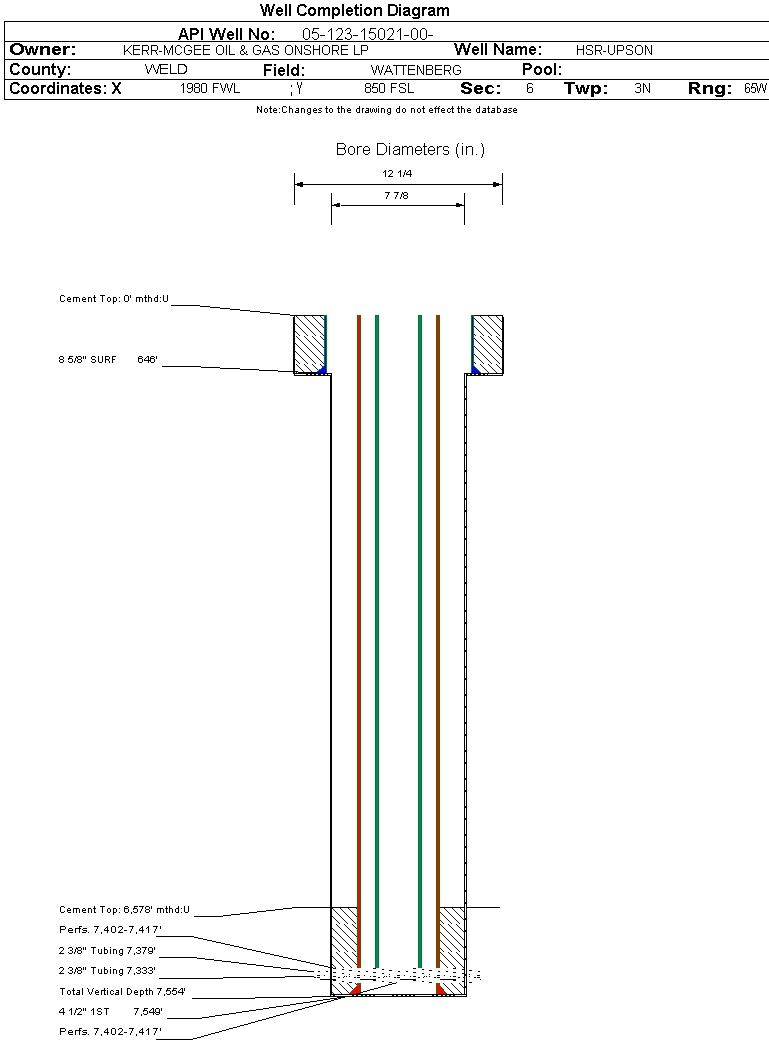

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15021		Well Classification: GW Status: PA - 10/26/2022
Well Name/No:HSR-UPSON #14-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/26/2022
FacilityID:247224LocationID:327682
County:WELD #123Location:SESW 6 3N65W 6
Field:WATTENBERG - #90750Elevation:4986 ft.
Planned Location:850FSL  1980 FWLLat/Long: 40.249446 / -104.708558Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.249294 / -104.708308Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/26/2022             Measured TD: 7554 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/26/2022
Wellbore Permit
Permit #:19910378 Expiration Date:9/13/1991
Proposed Depth/Form:7546 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:4/20/1992
Measured TD:7554 ft.Measured PB depth:7413 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 657 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: 657 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7546 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 6570 ft., Bottom: 7546 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7116 ft.NN
FORT HAYS7378 ft.NN
CODELL7400 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 11/15/2022                Interval Top: 7402 ft.    Interval Bottom: 7417 ft.

 Completed Information for Formation CODELL
1st Production Date:6/14/1991Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:11/17/2022Treatment End Date:N/A
Treatment Summary:The Codell formation was completed during the initial well completion done in 1991. Please see Completion Report doc #6373569 for additional details.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:4/20/1992
Treatment Summary:350,000# 20/40 MESH SAND + 75,800 GALS. GELLED WATER.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 30
CALC_BBLS_OIL 30
CALC_GOR 11300
CALC_MCF_GAS 339
CASING_PRESS 2800
GRAVITY_OIL 60
MCF_GAS 339
TUBING_PRESS 2500
Perforation Data:
Interval Top:7402 ft.# Of Holes:23
Interval Bottom:7417 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/26/2022                Interval Top: 7118 ft.    Interval Bottom: 7417 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/20/1992Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:11/17/2022Treatment End Date:N/A
Treatment Summary:The Niobrara and Codell formations were first commingled upon the completion of the Niobrara in 1992. Per Completed Interval Report doc #1395086, the NB-CD was recompleted in 2006 and remained commingled. Please note the perforation depths reported with doc #1395086 for the 2006 NB-CD recompletion are incorrect and have been corrected with this Form 5A submission.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:2/9/2006
Treatment Summary:119,778 GALS FLUID & 261,060 LBS 20/40 SAND (& SEE SCANNED DOC #637356 FOR TREATMENT IN 1992)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 3
CALC_BBLS_OIL 3
CALC_GOR 42000
CALC_MCF_GAS 125
CASING_PRESS 294
GRAVITY_OIL 56.5
MCF_GAS 125
TUBING_PRESS 241
Perforation Data:
Interval Top:7118 ft.# Of Holes:71
Interval Bottom:7417 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 11/17/2022                Interval Top: 7118 ft.    Interval Bottom: 7286 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:11/17/2022Treatment End Date:N/A
Treatment Summary:The Niobrara formation was completed and commingle with the Codell in 1992. Please see Completion Report doc #637356 for additional details.
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7118 ft.# Of Holes:20
Interval Bottom:7286 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/26/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
