COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-15002		Well Classification: DA Status: PA - 7/16/2002
Well Name/No:KETTL #4-23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:DIVERSIFIED OPERATING CORPORATION - 24461
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:55988
Facility Status:PAStatus Date7/16/2002
FacilityID:247205LocationID:408635
County:WELD #123Location:NWNW 23 6N61W 6
Field:GREASEWOOD - #32300Elevation:4701 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  600 FWLLat/Long: 40.479426 / -104.183234Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 7/16/2002             Measured TD: 6868 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 7/16/2002
Wellbore Permit
Permit #:910323 Expiration Date:8/28/1991
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 40, Drill Unit: NWNW

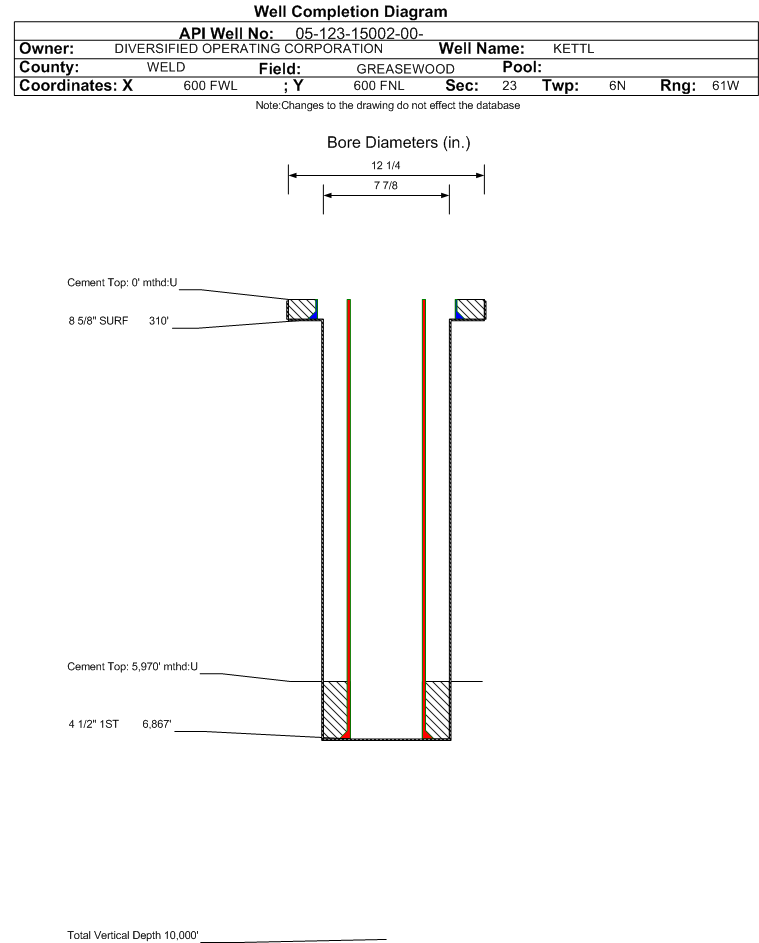

Wellbore Completed
Completion Date:5/16/1991
Spud Date:5/3/1991Spud Date Is:ACTUAL
Measured TD:6868 ft.Measured PB depth:6820 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 310 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: 0 ft., Bottom: 310 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6867 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 5970 ft., Bottom: 6867 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6082 ft.
FORT HAYS6302 ft.
CARLILE6346 ft.
BENTONITE6646 ft.
D SAND6752 ft.
J SAND6821 ft.

Formation DSND                     Formation Classification:  GW                     Status:  AB - 7/16/2002                 Interval Top: 6752 ft.

 Completed Information for Formation D SAND
1st Production Date:5/16/1991Choke Size:2,364.000 in.
Formation Name:D SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSND.
No Perforation Data was found for formation DSND.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/16/2002
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
