COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14773		Well Classification: GW Status: PA - 9/23/2020
Well Name/No:SAUER #33-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:63295
Facility Status:PAStatus Date9/23/2020
FacilityID:246976LocationID:327497
County:WELD #123Location:SESW 33 5N65W 6
Field:WATTENBERG - #90750Elevation:4662 ft.
Basin:DENVER (DJ) BASIN
Planned Location:810FSL  1980 FWLLat/Long: 40.350655 / -104.670768Lat/Long Source: Calculated From Footages
As Drilled Location:805 FSL  1973 FWLLat/Long: 40.350690 / -104.670780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/23/2020             Measured TD: 7185 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/23/2020
Wellbore PermitDRIFTED
Permit #:901144 Expiration Date:1/24/1994
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2SW

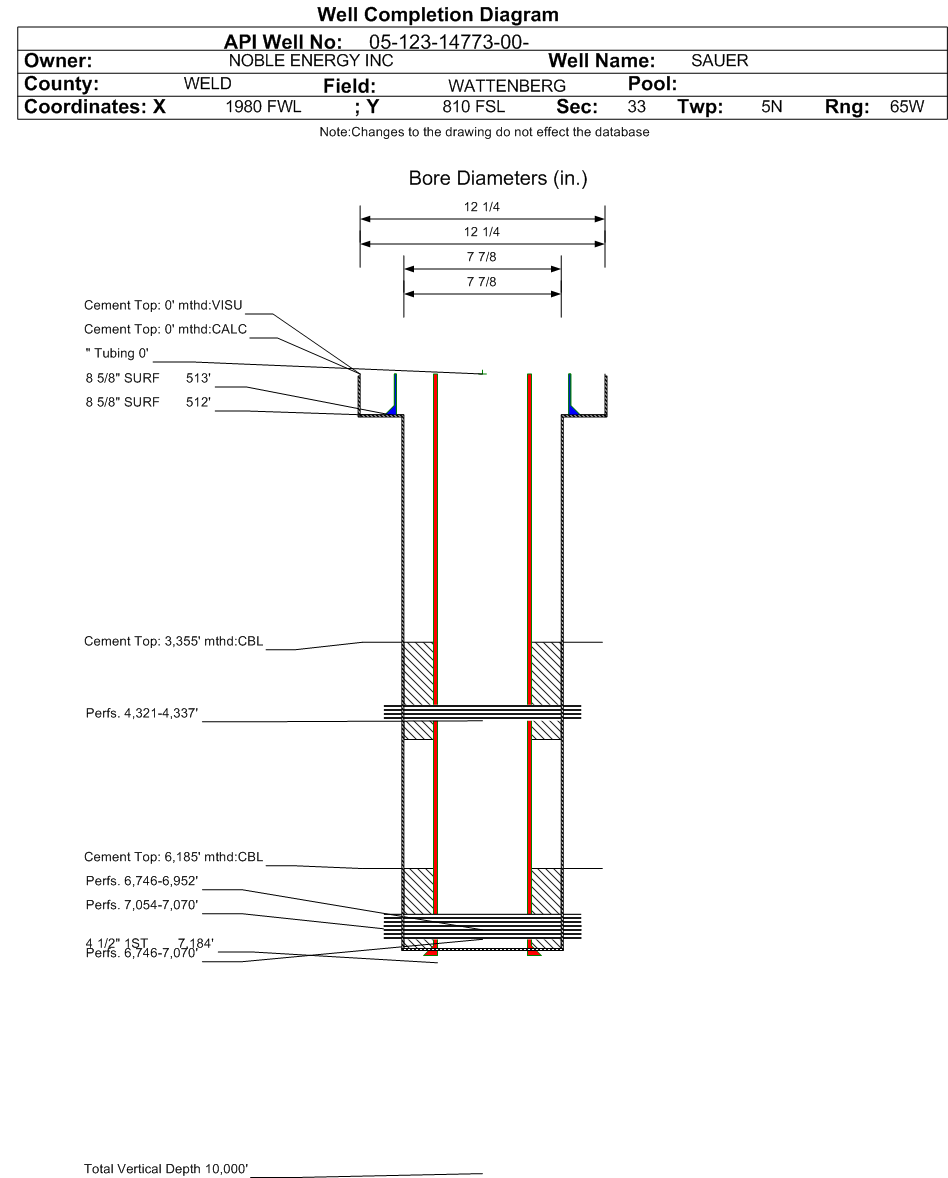

Wellbore Completed
Completion Date:11/30/1990
Measured TD:7185 ft.Measured PB depth:7116 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 513 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 513 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7184 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 6185 ft., Bottom: 7184 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4560 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 3355 ft., Bottom: 4570 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3712 ft.
SUSSEX4318 ft.
NIOBRARA6723 ft.
FORT HAYS7029 ft.
CODELL7053 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/13/2020                 Interval Top: 7054 ft.    Interval Bottom: 7070 ft.

 Completed Information for Formation CODELL
1st Production Date:11/30/1990Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/1990
Treatment Summary:131,754 GAL VISTAR 28/26# GEL & 246,800# 20/40 OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 10
CALC_BBLS_H2O 1
CALC_BBLS_OIL 11
CALC_GOR 19
CALC_MCF_GAS 223
CASING_PRESS 250
MCF_GAS 195
TUBING_PRESS 140
Perforation Data:
Interval Top:7054 ft.# Of Holes:105
Interval Bottom:7070 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/23/2020                 Interval Top: 6746 ft.    Interval Bottom: 7070 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/30/1990Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/1990
Treatment Summary:COMMINGLE CODL-NB
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 2
BTU_GAS 1265
CALC_GOR 61000
CASING_PRESS 600
GRAVITY_OIL 60
MCF_GAS 122
TUBING_PRESS 400
Perforation Data:
Interval Top:6746 ft.# Of Holes:285
Interval Bottom:7070 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/13/2020                 Interval Top: 6746 ft.    Interval Bottom: 6952 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/30/1990Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/21/2008
Treatment Summary:FRAC'D NB W/187,278 GALS SLICKWATER AND VISTAR W/235,877 LBS OTTAWA SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6746 ft.# Of Holes:180
Interval Bottom:6952 ft.Hole Size:0.42 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 1/23/2002                 Interval Top: 4321 ft.    Interval Bottom: 4337 ft.

 Completed Information for Formation SUSSEX
1st Production Date:1/20/1994Choke Size:
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4321 ft.# Of Holes:27
Interval Bottom:4337 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/23/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
