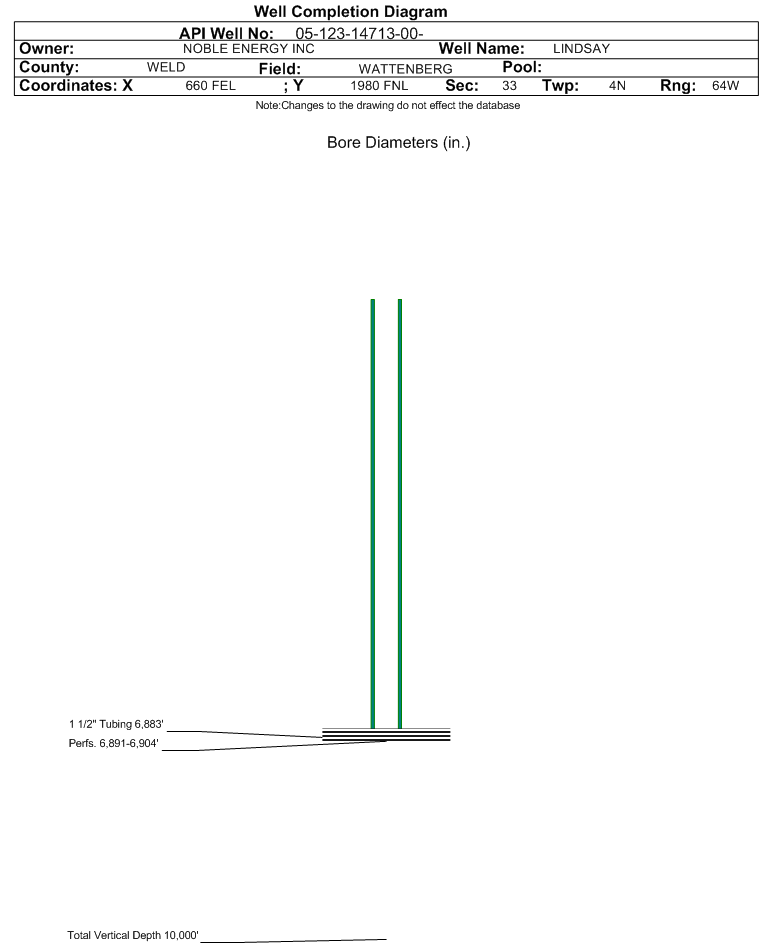

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14713		Well Classification: GW Status: PA - 11/3/2022
Well Name/No:LINDSAY #C33-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68209
Facility Status:PAStatus Date11/3/2022
FacilityID:246916LocationID:327450
County:WELD #123Location:SENE 33 4N64W 6
Field:WATTENBERG - #90750Elevation:4707 ft.
Planned Location:1980FNL  660 FELLat/Long: 40.270697 / -104.548964Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.270783 / -104.548872Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/3/2022             Measured TD:

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/3/2022
Wellbore Permit
Permit #:900962 Expiration Date:12/28/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2NE
Wellbore Completed
Completion Date:N/A
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 307 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 307 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 7042 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 255, Top: 6148 ft., Bottom: 7042 ft., Determination Method: CBL

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/25/2004                 Interval Top: 6891 ft.    Interval Bottom: 6904 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/25/2004
Treatment Summary:REPERF CODELL 6891' - 6904' ( 52 HOLES ) REFRAC CODELL W/131,838 GAL VISTAR 24/25/26# GEL & 245,700# 20/40 SAND, 4/19/04
Tubing Size:1.5 in.Tubing Setting Depth:6883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/2004Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 10
BTU_GAS 1365
CALC_BBLS_H2O 4
CALC_BBLS_OIL 10
CALC_GOR 11800
CALC_MCF_GAS 118
CASING_PRESS 650
GRAVITY_OIL 57
MCF_GAS 118
TUBING_PRESS 200
Perforation Data:
Interval Top:6891 ft.# Of Holes:72
Interval Bottom:6904 ft.Hole Size:0.25 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/3/2022

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 6/25/2004

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
No Perforation Data was found for formation NBRR.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/03/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
