Facility Detail

COGIS - WELL SCOUT CARD

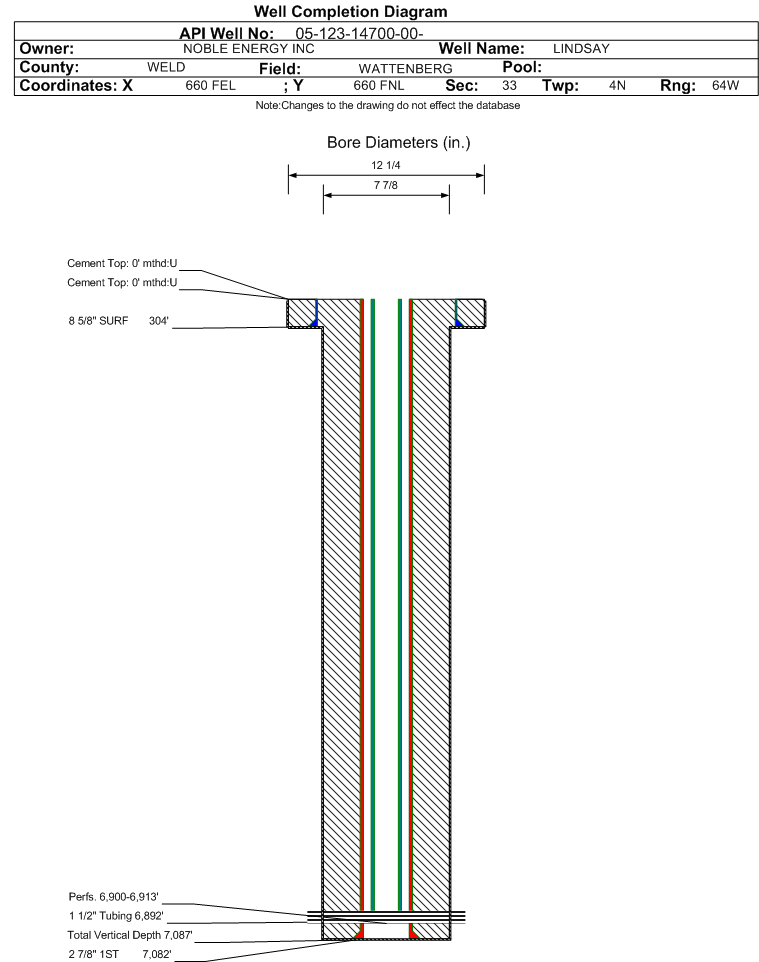

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14700		Well Classification: GW Status: PA - 3/24/2023
Well Name/No:LINDSAY #C33-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68209
Facility Status:PAStatus Date3/24/2023
FacilityID:246903LocationID:327440
County:WELD #123Location:NENE 33 4N64W 6
Field:WATTENBERG - #90750Elevation:4731 ft.
Planned Location:660FNL  660 FELLat/Long: 40.274317 / -104.548924Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.274392 / -104.548878Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/24/2023             Measured TD: 7087 ft.    Vertical TD: 7087 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/24/2023
Wellbore Permit
Permit #:900937 Expiration Date:12/26/1990
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: N2NE
Wellbore Completed
Completion Date:9/17/1990
Measured TD:7087 ft.Measured PB depth:7051 ft.
True Vertical TD:7087 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 304 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 304 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 7082 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 270, Top: 6149 ft., Bottom: 7082 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4250 ft.
NIOBRARA6608 ft.
CODELL6900 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 3/24/2023                 Interval Top: 6900 ft.    Interval Bottom: 6913 ft.

 Completed Information for Formation CODELL
1st Production Date:9/15/1990Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/17/1990
Treatment Summary:SEE SCANNED DOCUMENTS 01209507
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 8
BTU_GAS 1275
CALC_BBLS_H2O 3
CALC_BBLS_OIL 8
CALC_GOR 14250
CALC_MCF_GAS 114
CASING_PRESS 370
GRAVITY_OIL 60
MCF_GAS 114
TUBING_PRESS 160
Perforation Data:
Interval Top:6900 ft.# Of Holes:74
Interval Bottom:6913 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/24/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
