COGIS - WELL SCOUT CARD

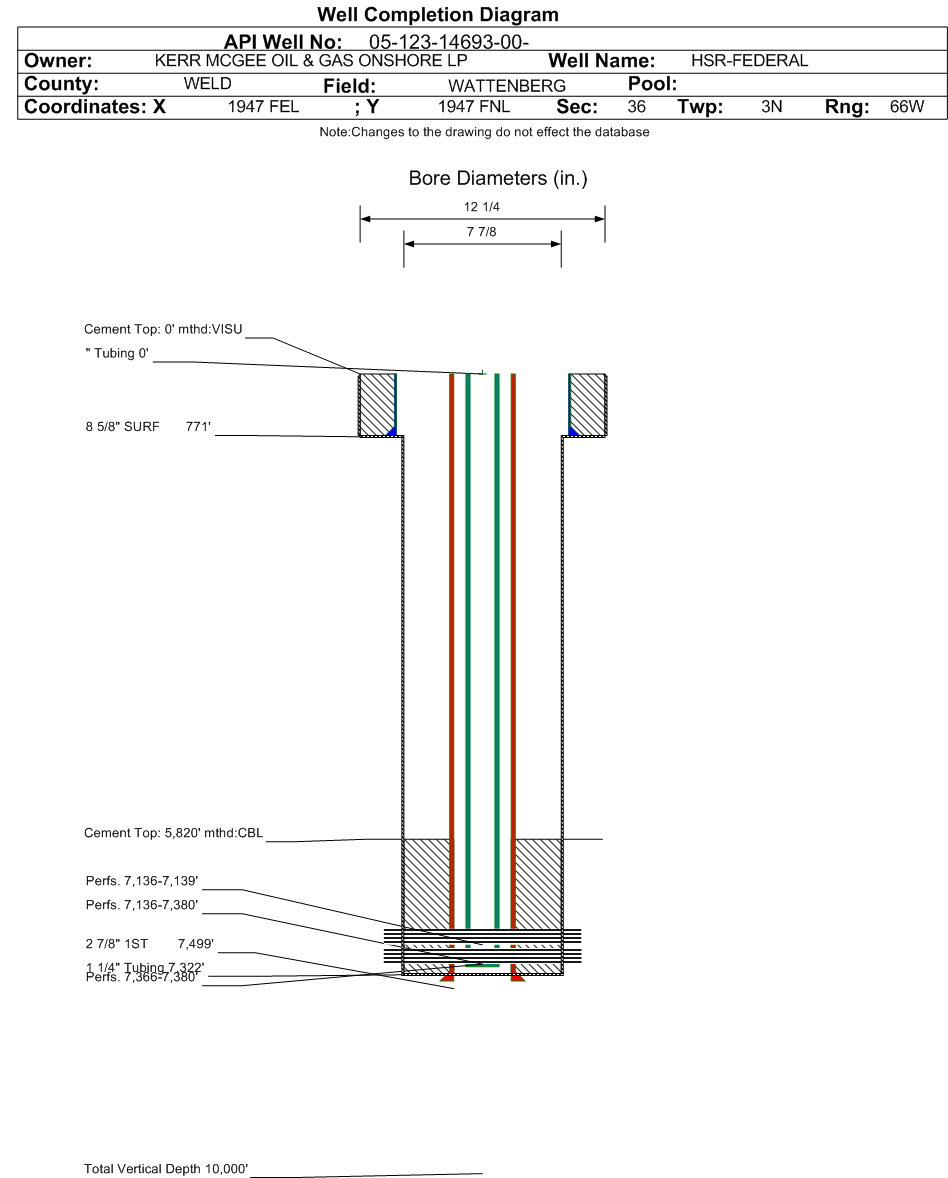

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14693		Well Classification: OW Status: PA - 8/22/2019
Well Name/No:HSR-FEDERAL #7-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:87/4204-S
Facility Status:PAStatus Date8/22/2019
FacilityID:246896LocationID:336109
County:WELD #123Location:SWNE 36 3N66W 6
Field:WATTENBERG - #90750Elevation:4983 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1947FNL  1947 FELLat/Long: 40.183830 / -104.722860Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 40.183810 / -104.722850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 8/22/2019             Measured TD: 7516 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 8/22/2019
Wellbore PermitDRIFTED
Permit #:19941091 Expiration Date:2/18/1995
Proposed Depth/Form:7950 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: W2NE4
Wellbore Completed
Completion Date:9/13/1994
Spud Date:8/28/1994Spud Date Is:ACTUAL
Measured TD:7516 ft.Measured PB depth:7430 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; CDEN/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 771 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 539, Top: 0 ft., Bottom: 771 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 2.875 in., Top: 0 ft., Depth: 7499 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 5820 ft., Bottom: 7499 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS100 ft.NN
SUSSEX4650 ft.NN
NIOBRARA7090 ft.NN
FORT HAYS7340 ft.NN
CODELL7364 ft.NN
CARLILE7381 ft.NN
GREENHORN7450 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 1/15/2010                 Interval Top: 7366 ft.    Interval Bottom: 7380 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/15/2009
Treatment Summary:120,973 GAL DYNAFLOW 2 W/261,240# 20/40 & 4,000# 20/40 SB EXCEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7366 ft.# Of Holes:62
Interval Bottom:7380 ft.Hole Size:0.16 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/22/2019                 Interval Top: 7136 ft.    Interval Bottom: 7380 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/7/2010Choke Size:0.000 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/13/1994
Treatment Summary:
Tubing Size:1.25 in.Tubing Setting Depth:7322 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/15/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1.12
BBLS_OIL 23
BTU_GAS 1341
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 8167
CALC_MCF_GAS 49
CASING_PRESS 1171
GRAVITY_OIL 55
MCF_GAS 161
TUBING_PRESS 966
Perforation Data:
Interval Top:7136 ft.# Of Holes:65
Interval Bottom:7380 ft.Hole Size:0.16 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 1/15/2010                 Interval Top: 7136 ft.    Interval Bottom: 7139 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/13/1994
Treatment Summary:NO ADDITIONAL TREATMENT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7136 ft.# Of Holes:3
Interval Bottom:7139 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/22/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
