COGIS - WELL SCOUT CARD

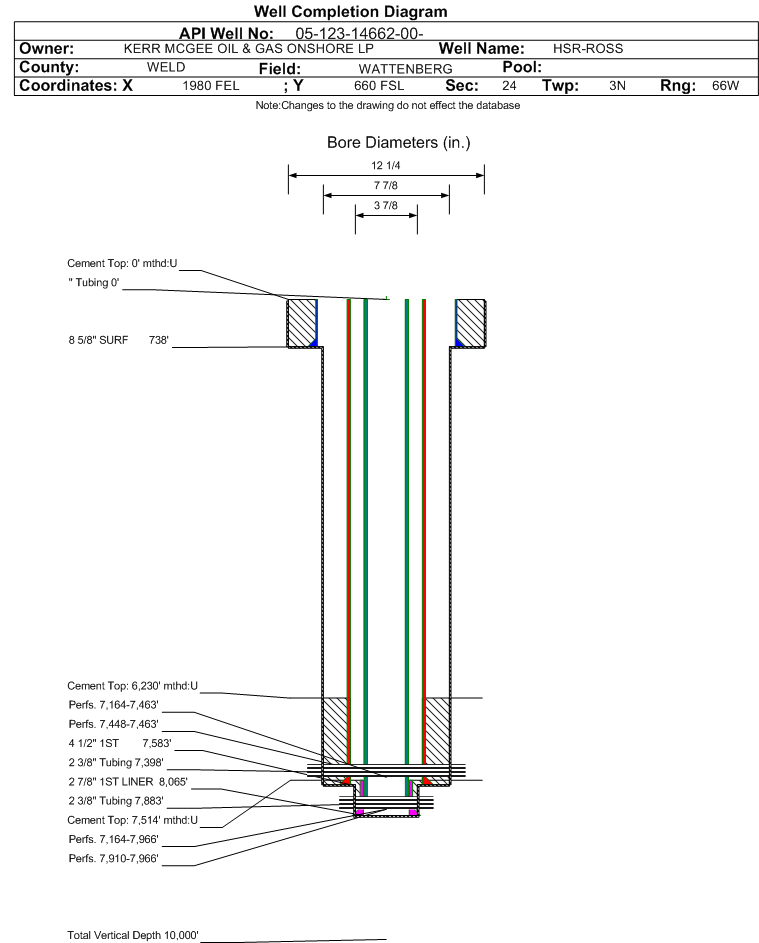

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14662		Well Classification: GW Status: PA - 8/11/2022
Well Name/No:HSR-ROSS #15-24A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/11/2022
FacilityID:246865LocationID:327419
County:WELD #123Location:SWSE 24 3N66W 6
Field:WATTENBERG - #90750Elevation:5035 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  1980 FELLat/Long: 40.205357 / -104.722898Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.205342 / -104.722842Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/11/2022             Measured TD: 8065 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/11/2022
Wellbore Permit
Permit #:20010346 Expiration Date:2/22/2002
Proposed Depth/Form:8050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SE
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:6/19/2001
Spud Date:8/23/1990Spud Date Is:ACTUAL
Measured TD:8065 ft.Measured PB depth:8034 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:CDCNGR, IGRS, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 749 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 749 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7583 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 6230 ft., Bottom: 7583 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7514 ft., Depth: 8065 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 35, Top: 7514 ft., Bottom: 8065 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4669 ft.NN
NIOBRARA7163 ft.NN
FORT HAYS7424 ft.NN
CODELL7446 ft.NN
J SAND7900 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/11/2022                 Interval Top: 7910 ft.    Interval Bottom: 7966 ft.

 Completed Information for Formation J SAND
1st Production Date:N/AChoke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/19/2001
Treatment Summary:FRAC'D J SAND W/386,440# 20/40 MESH; 165,160 GALS GELLED FLUID. NO TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7910 ft.# Of Holes:
Interval Bottom:7966 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 7/31/2001                 Interval Top: 7448 ft.    Interval Bottom: 7463 ft.

 Completed Information for Formation CODELL
1st Production Date:11/8/1990Choke Size:0.187 in.
Formation Name:CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:6/19/2001
Treatment Summary:FRAC'D W/24,000# 100 MESH; 349,000# 20/40 MESH; 78,330 GALS GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7398 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/1990Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 37
CALC_BBLS_H2O 0
CALC_BBLS_OIL 37
CALC_GOR 6649
CALC_MCF_GAS 246
CASING_PRESS 1750
GRAVITY_OIL 60
MCF_GAS 246
TUBING_PRESS 1500
Perforation Data:
Interval Top:7448 ft.# Of Holes:16
Interval Bottom:7463 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 7/31/2001                 Interval Top: 7164 ft.    Interval Bottom: 7966 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/28/2001Choke Size:0.219 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:6/19/2001
Treatment Summary:COMMINGLED J SAND WITH NB-CD
Tubing Size:2.375 in.Tubing Setting Depth:7883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2001Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 7
CALC_BBLS_H2O 0
CALC_BBLS_OIL 7
CALC_GOR 42429
CALC_MCF_GAS 297
CASING_PRESS 590
GRAVITY_OIL 60
MCF_GAS 297
TUBING_PRESS 370
Perforation Data:
Interval Top:7164 ft.# Of Holes:
Interval Bottom:7966 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/11/2022                 Interval Top: 7164 ft.    Interval Bottom: 7463 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/19/2001
Treatment Summary:SEE CODL. NBRR: FRAC'D W/228,600# 20/40 MESH SAND + 65,650 GAL GELLED FLUID. NO NBRR TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 24
CALC_BBLS_H2O 0
CALC_BBLS_OIL 24
CALC_GOR 4292
CALC_MCF_GAS 103
CASING_PRESS 750
GRAVITY_OIL 60
MCF_GAS 103
TUBING_PRESS 550
Perforation Data:
Interval Top:7164 ft.# Of Holes:
Interval Bottom:7463 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/11/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
