COGIS - WELL SCOUT CARD

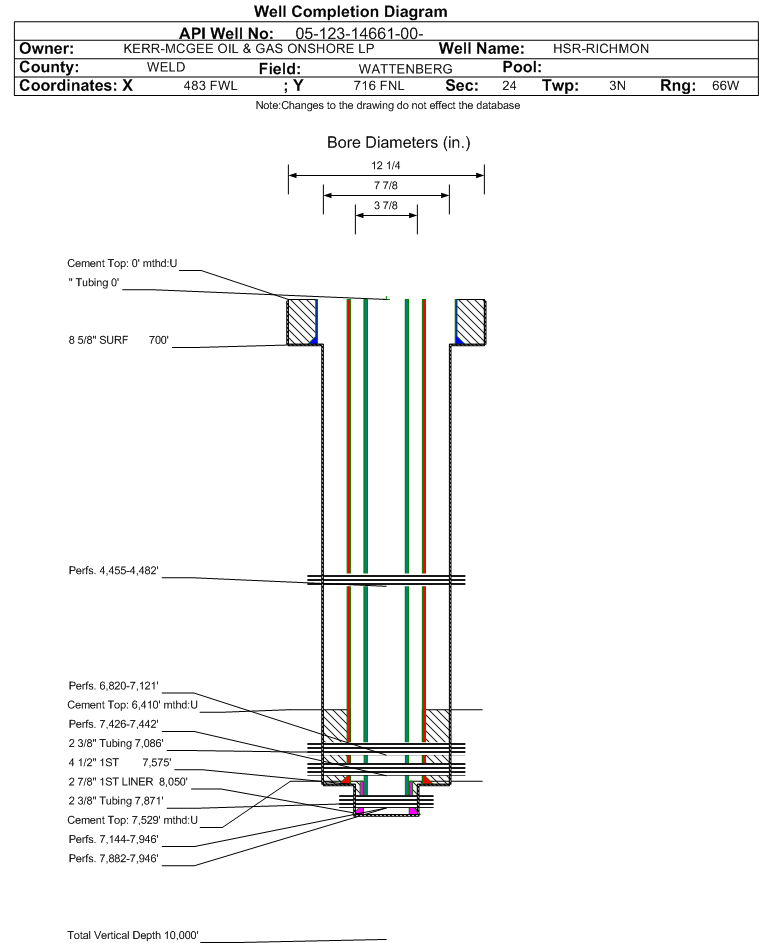

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14661		Well Classification: GW Status: SI - 8/1/2020
Well Name/No:HSR-RICHMON #4-24
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2020
FacilityID:246864LocationID:336108
County:WELD #123Location:NWNW 24 3N66W 6
Field:WATTENBERG - #90750Elevation:5004 ft.
Planned Location:716FNL  483 FWLLat/Long: 40.215927 / -104.733199Lat/Long Source: Calculated From Footages
As Drilled Location:711 FNL  497 FWLLat/Long: 40.215990 / -104.732990Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2020             Measured TD: 8050 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2020
Wellbore Permit
Permit #:20020467 Expiration Date:3/5/2003
Proposed Depth/Form:8030 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NW
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:5/29/2002
Spud Date:8/9/1990Spud Date Is:ACTUAL
Measured TD:8050 ft.Measured PB depth:8018 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:SACNLD, SAAILC, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 710 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: 710 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7575 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 6410 ft., Bottom: 7575 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7529 ft., Depth: 8051 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 21, Top: 7529 ft., Bottom: 8051 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4642 ft.NN
NIOBRARA7144 ft.NN
FORT HAYS7403 ft.NN
CODELL7426 ft.NN
GREENHORN7508 ft.NN
J SAND7881 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  SI - 8/1/2020                  Interval Top: 7882 ft.    Interval Bottom: 7946 ft.

 Completed Information for Formation J SAND
1st Production Date:6/10/2002Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/29/2002
Treatment Summary:FRAC'D JSAND W/503,400# 20/40 MESH; 210,168 GALS GELLED FLUID. NO TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7882 ft.# Of Holes:
Interval Bottom:7946 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 7/13/2002                 Interval Top: 7426 ft.    Interval Bottom: 7442 ft.

 Completed Information for Formation CODELL
1st Production Date:10/9/1990Choke Size:0.156 in.
Formation Name:CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:5/29/2002
Treatment Summary:7426-7442' FRAC'D W/24,000# 100 MESH; 238,000# 20/40 MESH; 64,500 GAL GELLED FLUID.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/23/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 42
CALC_BBLS_H2O 0
CALC_BBLS_OIL 42
CALC_GOR 11238
CALC_MCF_GAS 472
CASING_PRESS 2300
GRAVITY_OIL 60
MCF_GAS 472
TUBING_PRESS 2150
Perforation Data:
Interval Top:7426 ft.# Of Holes:17
Interval Bottom:7442 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 7/13/2002                 Interval Top: 7144 ft.    Interval Bottom: 7946 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/10/2002Choke Size:0.281 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:5/29/2002
Treatment Summary:COMMINGLED J SAND WITH NB-CD.
Tubing Size:2.375 in.Tubing Setting Depth:7871 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/13/2002Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 11
CALC_BBLS_H2O 0
CALC_BBLS_OIL 11
CALC_GOR 15364
CALC_MCF_GAS 169
CASING_PRESS 570
GRAVITY_OIL 60
MCF_GAS 169
TUBING_PRESS 160
Perforation Data:
Interval Top:7144 ft.# Of Holes:
Interval Bottom:7946 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 8/1/2020                  Interval Top: 6820 ft.    Interval Bottom: 7121 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:2/5/2010Choke Size:0.438 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/12/2010
Treatment Summary:NB PERF 6820 - 7018 HOLES 73 SIZE .38 CD PERF 7111-7121 HOLES 30 SIZE 0.38 RE-FRAC NB W/ 500 GAL 15% HCI & 168,390 GAL VISTAR HYBRID W/ 255,400# 20/40 & 4,080# 20/40 SB EXCEL.
Tubing Size:2.375 in.Tubing Setting Depth:7086 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 11
BTU_GAS 1266
CALC_BBLS_H2O 0
CALC_BBLS_OIL 9
CALC_GOR 6667
CALC_MCF_GAS 60
CASING_PRESS 1036
GRAVITY_OIL 47
MCF_GAS 60
TUBING_PRESS 9937
Perforation Data:
Interval Top:6820 ft.# Of Holes:103
Interval Bottom:7121 ft.Hole Size:0.38 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 12/29/2009                Interval Top: 4455 ft.    Interval Bottom: 4482 ft.

 Completed Information for Formation SUSSEX
1st Production Date:N/AChoke Size:
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/29/2009
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4455 ft.# Of Holes:16
Interval Bottom:4482 ft.Hole Size:0.38 in.
Primary Well Designation:
Reported Plugged      i
            All DesignationsDate
Reported PluggedY05/29/2025
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
07/31/2020
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
