COGIS - WELL SCOUT CARD

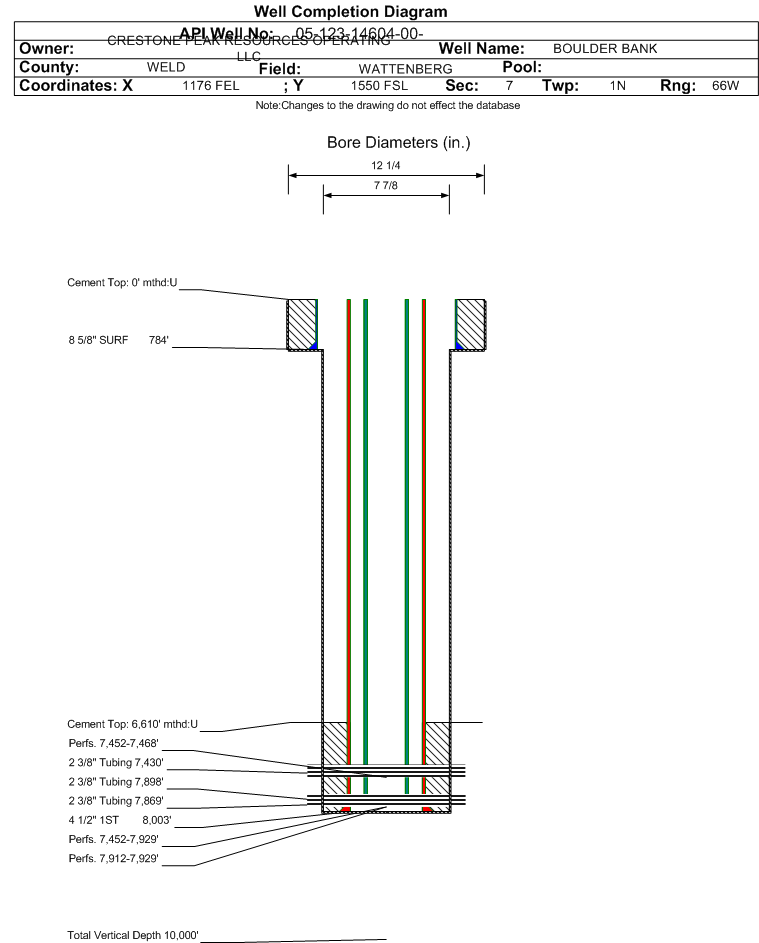

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14604		Well Classification: GW Status: PA - 3/8/2019
Well Name/No:BOULDER BANK #3-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/8/2019
FacilityID:246807LocationID:336420
County:WELD #123Location:NESE 7 1N66W 6
Field:WATTENBERG - #90750Elevation:4926 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1550FSL  1176 FELLat/Long: 40.062588 / -104.814760Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.062764 / -104.814685Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 7/12/2018             Measured TD: 8007 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 7/12/2018
Wellbore Permit
Permit #:19900410 Expiration Date:10/30/1997
Proposed Depth/Form:8016 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:8/10/1990
Spud Date:4/29/1990Spud Date Is:ACTUAL
Measured TD:8007 ft.Measured PB depth:7957 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-INDUCTION, GR-CNL/FDC, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 784 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 784 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8003 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 6610 ft., Bottom: 8003 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4594 ft.
NIOBRARA7089 ft.
FORT HAYS7413 ft.
CODELL7457 ft.
J SAND7908 ft.
SKULL CREEK7944 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 3/8/2019                  Interval Top: 7912 ft.    Interval Bottom: 7929 ft.

 Completed Information for Formation J SAND
1st Production Date:8/10/1990Choke Size:0.281 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/10/1990
Treatment Summary:FRAC: 550,000# 20/40 & 200,000 GAL GEL
Tubing Size:2.375 in.Tubing Setting Depth:7869 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/12/1990Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 95
BBLS_OIL 25
CALC_GOR 54760
CASING_PRESS 1690
MCF_GAS 1369
TUBING_PRESS 1690
Perforation Data:
Interval Top:7912 ft.# Of Holes:68
Interval Bottom:7929 ft.Hole Size:0.375 in.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 3/8/2019                  Interval Top: 7452 ft.    Interval Bottom: 7468 ft.

 Completed Information for Formation CODELL
1st Production Date:12/15/1996Choke Size:0.750 in.
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/10/1990
Treatment Summary:FRAC'D W/109,000 GALS SATURN III LPII 35 LHT/HC/D CONTAINING 12,500# 100 MESH, 392,000# 20/40 SD AND 3000# 12/20 TDC RESIN COATED SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7430 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/1997Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 29
CALC_GOR 4517
CASING_PRESS 450
GRAVITY_OIL 44.4
MCF_GAS 131
TUBING_PRESS 100
Perforation Data:
Interval Top:7452 ft.# Of Holes:32
Interval Bottom:7468 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/18/1997                 Interval Top: 7452 ft.    Interval Bottom: 7929 ft.

 Completed Information for Formation J-CODELL
1st Production Date:2/17/1997Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7898 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/18/1997Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 17
BTU_GAS 1202
CALC_GOR 27824
CASING_PRESS 270
GRAVITY_OIL 47.9
MCF_GAS 473
TUBING_PRESS 127
Perforation Data:
Interval Top:7452 ft.# Of Holes:100
Interval Bottom:7929 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/08/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
