COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-123-14432		Well Classification: OW	Status: PA - 4/14/2021
Well Name/No:	HSR-FEDERAL #15-36 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	KERR MCGEE OIL & GAS ONSHORE LP - 47120 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	COC 49190
Facility Status:	PA	Status Date	4/14/2021
FacilityID:	246635	LocationID:	336303
County:	WELD #123	Location:	SWSE 36 3N66W 6
Field:	WATTENBERG - #90750	Elevation:	4993 ft.
Planned Location:	660FSL 1980 FEL	Lat/Long: 40.176327 / -104.723008	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 40.176511 / -104.723061	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

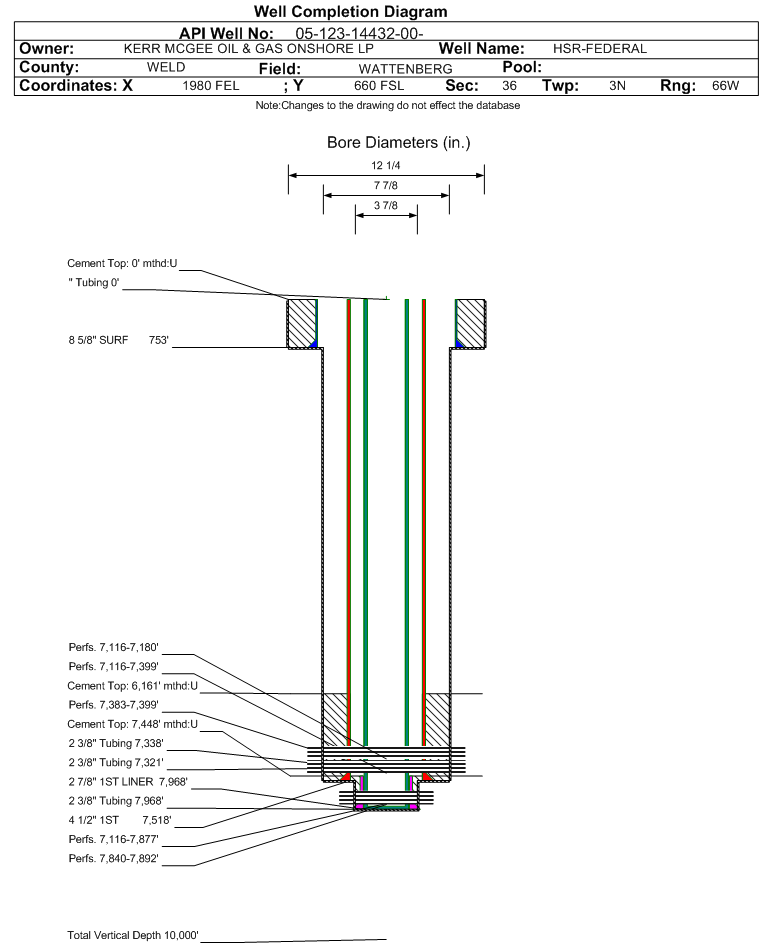

Wellbore #00 Wellbore Classification: OW Status: PA - 4/14/2021 Measured TD: 7999 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW PA - 4/14/2021
Wellbore Permit
Permit #:	20031108	Expiration Date:	6/24/2004
Proposed Depth/Form:	8000 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SE4
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	N/A
Spud Date:	3/21/1990	Spud Date Is:	ACTUAL
Measured TD:	7999 ft.	Measured PB depth:	7967 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:	CDL-GR, ISP-GR, CBL
Log Types:
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 753 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 340, Top: 0 ft., Bottom: 753 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7518 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 180, Top: 6161 ft., Bottom: 7518 ft., Determination Method: CBL
Casing:	String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 1521 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 215, Top: 502 ft., Bottom: 1520 ft., Determination Method: CBL
Casing:	String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7448 ft., Depth: 7968 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:	Sacks: 35, Top: 7448 ft., Bottom: 7968 ft., Determination Method: CBL
Additional Cement:	String Type: 1ST , Top: 502 ft., Depth: 1521 ft., Bottom: 1520 ft., Sacks: 215, Method: 1 INCH
Formation	Interval Top	Log Bottom	Cored	DSTs
NIOBRARA	7113 ft.	7358 ft.	N	N
FORT HAYS	7358 ft.	7382 ft.	N	N
CODELL	7382 ft.	7399 ft.	N	N
GREENHORN	7469 ft.
J SAND	7821 ft.	7840 ft.	N	N

Formation JSND Formation Classification: GW Status: AB - 4/14/2021 Interval Top: 7840 ft. Interval Bottom: 7892 ft.

Completed Information for Formation J SAND

1st Production Date:	12/31/2003	Choke Size:
Formation Name:	J SAND	Commingled:
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	3/31/2010
Treatment Summary:	SET SAND PLUG @ 7620'. OUR INTENT IS TO REMOVE THE SAND PLUG TO COMMINGLE WELL IN THE NEXT SIX MONTHS.
Formation Treatment
Treatment Date:	12/31/2003
Treatment Summary:	115,460# 30/50 MESH SAND; 151,032 GALLONS GELLED FLUID

Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
No Initial Test Data was found for formation JSND.

Perforation Data:
Interval Top:	7840 ft.	# Of Holes:	78
Interval Bottom:	7892 ft.	Hole Size:	0.21 in.

Formation CODL Formation Classification: GW Status: CM - 10/13/2011 Interval Top: 7383 ft. Interval Bottom: 7399 ft.

Completed Information for Formation CODELL

1st Production Date:	5/18/1990	Choke Size:	0.140 in.
Formation Name:	CODELL	Commingled:
Production Method:	FLOWING
Open Hole Completion:

Formation Treatment
Treatment Date:	12/31/2003
Treatment Summary:	24,000# 100 MESH; 500,000# 20-40 MESH SAND; 87,370 GALS GELLED FLUID

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7321 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/30/1990	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	31
CALC_BBLS_H2O	0
CALC_BBLS_OIL	31
CALC_GOR	4839
CALC_MCF_GAS	150
CASING_PRESS	1600
GRAVITY_OIL	60
MCF_GAS	150
TUBING_PRESS	950

Perforation Data:
Interval Top:	7383 ft.	# Of Holes:	32
Interval Bottom:	7399 ft.	Hole Size:	0.38 in.

Formation JNBCD Formation Classification: GW Status: CM - 1/1/2004 Interval Top: 7116 ft. Interval Bottom: 7877 ft.

Completed Information for Formation J-NIOBRARA-CODELL

1st Production Date:	1/1/2004	Choke Size:	0.250 in.
Formation Name:	J-NIOBRARA-CODELL	Commingled:
Production Method:	PLUNGER LIFT
Open Hole Completion:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7968 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	1/1/2004	Test Method:	PLUNGER
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	3
CALC_BBLS_H2O	0
CALC_BBLS_OIL	3
CALC_GOR	84667
CALC_MCF_GAS	254
CASING_PRESS	500
GRAVITY_OIL	45.8
MCF_GAS	254
TUBING_PRESS	200

Perforation Data:
Interval Top:	7116 ft.	# Of Holes:	123
Interval Bottom:	7877 ft.	Hole Size:	0.21 in.

Formation NB-CD Formation Classification: GW Status: AB - 4/14/2021 Interval Top: 7116 ft. Interval Bottom: 7399 ft.

Completed Information for Formation NIOBRARA-CODELL

1st Production Date:	4/28/2010	Choke Size:
Formation Name:	NIOBRARA-CODELL	Commingled:	No
Production Method:
Open Hole Completion:

Formation Treatment
Treatment Date:	4/12/2010
Treatment Summary:	NBRR PERF 7116-7180 HOLES 13 SIZE 0.38. CODL PERFF 7383-7399 HOLES 64 SIZE 0.38. REPEFRF CODL 7383-7399 HOLES 32 SIZE 0.38. REFRAC CODL W/201,621 GAL SW & 150,640# 40/70 SAND & 4,000# 20/40 SB EXCEL.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7338 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	5/9/2010	Test Method:	FLOWING
Hours Tested:		Gas Type:	SHALE
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	39
BTU_GAS	1248
CALC_BBLS_H2O	0
CALC_BBLS_OIL	29
CALC_GOR	4586
CALC_MCF_GAS	133
CASING_PRESS	1675
GRAVITY_OIL	54
MCF_GAS	87
TUBING_PRESS	625

Perforation Data:
Interval Top:	7116 ft.	# Of Holes:	77
Interval Bottom:	7399 ft.	Hole Size:	0.38 in.

Formation NBRR Formation Classification: GW Status: CM - 9/16/1991 Interval Top: 7116 ft. Interval Bottom: 7180 ft.

Completed Information for Formation NIOBRARA

1st Production Date:	8/31/1991	Choke Size:
Formation Name:	NIOBRARA	Commingled:
Production Method:	FLOWING
Open Hole Completion:

Formation Treatment
Treatment Date:	12/31/2003
Treatment Summary:	214,000# 20-40 MESH; 54,234 GALS GELLED WATER

Test Type	Measure
Tubing Size:		Tubing Setting Depth:
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	9/2/1991	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	SHALE
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	43
CALC_BBLS_H2O	0
CALC_BBLS_OIL	43
CALC_GOR	3512
CALC_MCF_GAS	151
CASING_PRESS	900
GRAVITY_OIL	60
MCF_GAS	151
TUBING_PRESS	625

Perforation Data:
Interval Top:	7116 ft.	# Of Holes:	13
Interval Bottom:	7180 ft.	Hole Size:	0.38 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	Y	04/14/2021
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

May 2024 - April 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000
