COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14341		Well Classification: GW Status: PA - 10/17/2018
Well Name/No:HSR-ZELDIN #14-34A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/17/2018
FacilityID:246544LocationID:336174
County:WELD #123Location:SESW 34 3N66W 6
Field:WATTENBERG - #90750Elevation:4986 ft.
Planned Location:660FSL  1980 FWLLat/Long: 40.176147 / -104.765490Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.176180 / -104.765580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/17/2018             Measured TD: 8043 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/17/2018
Wellbore PermitDRIFTED
Permit #:20021854 Expiration Date:10/7/2003
Proposed Depth/Form:8030 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: S2SW
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:11/27/2002
Spud Date:7/23/1989Spud Date Is:ACTUAL
Measured TD:8043 ft.Measured PB depth:8001 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL/ DIFL/GR, CNL/GR
Log Types:SAAILC, SACNLD, CBL

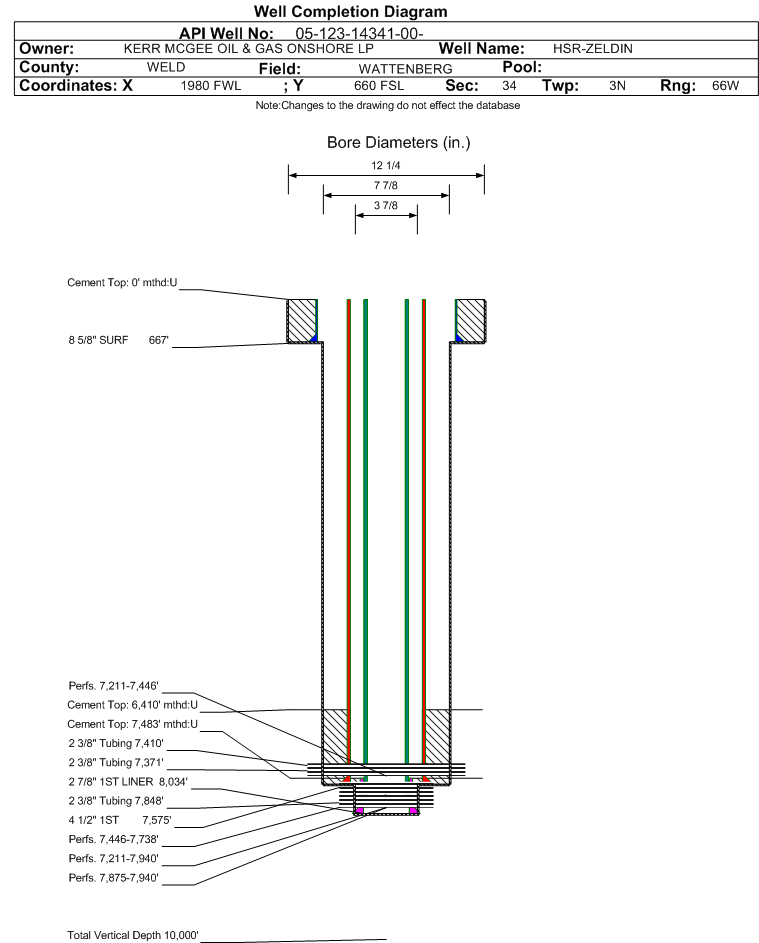

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 667 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 667 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7575 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 6410 ft., Bottom: 7575 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7483 ft., Depth: 8034 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 21, Top: 7483 ft., Bottom: 8034 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS100 ft.NN
SUSSEX4150 ft.NN
NIOBRARA7162 ft.NN
FORT HAYS7410 ft.NN
CODELL7432 ft.NN
GREENHORN7518 ft.NN
J SAND7874 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 10/17/2018                Interval Top: 7875 ft.    Interval Bottom: 7940 ft.

 Completed Information for Formation J SAND
1st Production Date:7/19/2003Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/2002
Treatment Summary:115,560# 20-40 MESH; 110,166 GALS SAND-LADEN FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7875 ft.# Of Holes:
Interval Bottom:7940 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/25/1994                 Interval Top: 7446 ft.    Interval Bottom: 7738 ft.

 Completed Information for Formation CODELL
1st Production Date:11/17/1989Choke Size:0.125 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/2002
Treatment Summary:ORIGINAL COMPLETION: FRAC DOWN CASING W/ 24,000# 100 MESH; 500,000# 20-40 MESH; PLUS 87,460 GALS FLUID. 6/94: CM'D W/ NBRR. 9/01: CODL REPERF'D 7338'-7446'. 1/03: NB-CD CM'D W/ JSND
Tubing Size:2.375 in.Tubing Setting Depth:7371 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/1989Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 35
CALC_BBLS_H2O 0
CALC_BBLS_OIL 35
CALC_GOR 3800
CALC_MCF_GAS 133
CASING_PRESS 1300
MCF_GAS 133
TUBING_PRESS 750
Perforation Data:
Interval Top:7446 ft.# Of Holes:
Interval Bottom:7738 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 1/19/2003                 Interval Top: 7211 ft.    Interval Bottom: 7940 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:1/19/2003Choke Size:0.250 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER LIFT
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/2002
Treatment Summary:CM'D W/ NB-CD
Tubing Size:2.375 in.Tubing Setting Depth:7848 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/19/2003Test Method:PLUNGER LIFT
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 6
CALC_BBLS_H2O 0
CALC_BBLS_OIL 6
CALC_GOR 60000
CALC_MCF_GAS 360
CASING_PRESS 600
GRAVITY_OIL 60
MCF_GAS 360
TUBING_PRESS 400
Perforation Data:
Interval Top:7211 ft.# Of Holes:
Interval Bottom:7940 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/17/2018                Interval Top: 7211 ft.    Interval Bottom: 7446 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:6/25/1994Choke Size:0.343 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/2002
Treatment Summary:ORIGINAL COMPLETION: CODL - SEE INDIVIDUAL FORMATION DATA; NBRR (7211'-7219', 18 HOLES); BOTH FORMATIONS FRAC'D W/ 196,400# 20-40 MESH SAND + 63,332 GALS GELLED FLUID. 9/01: FRAC'D W/ 121,338 GALS GELLED FLUID, 261,370# 20/40 UNIMIN-BRIGHTON & CODL REPERF'D. 1/03: CM'D W/ JSND
Tubing Size:2.375 in.Tubing Setting Depth:7410 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2001Test Method:PLUNGER
Hours Tested:5.8Gas Type:SHALE
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 9
CALC_BBLS_H2O 0
CALC_BBLS_OIL 9
CALC_GOR 7667
CALC_MCF_GAS 69
CASING_PRESS 592
MCF_GAS 69
TUBING_PRESS 375
Perforation Data:
Interval Top:7211 ft.# Of Holes:
Interval Bottom:7446 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/17/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
