COGIS - WELL SCOUT CARD

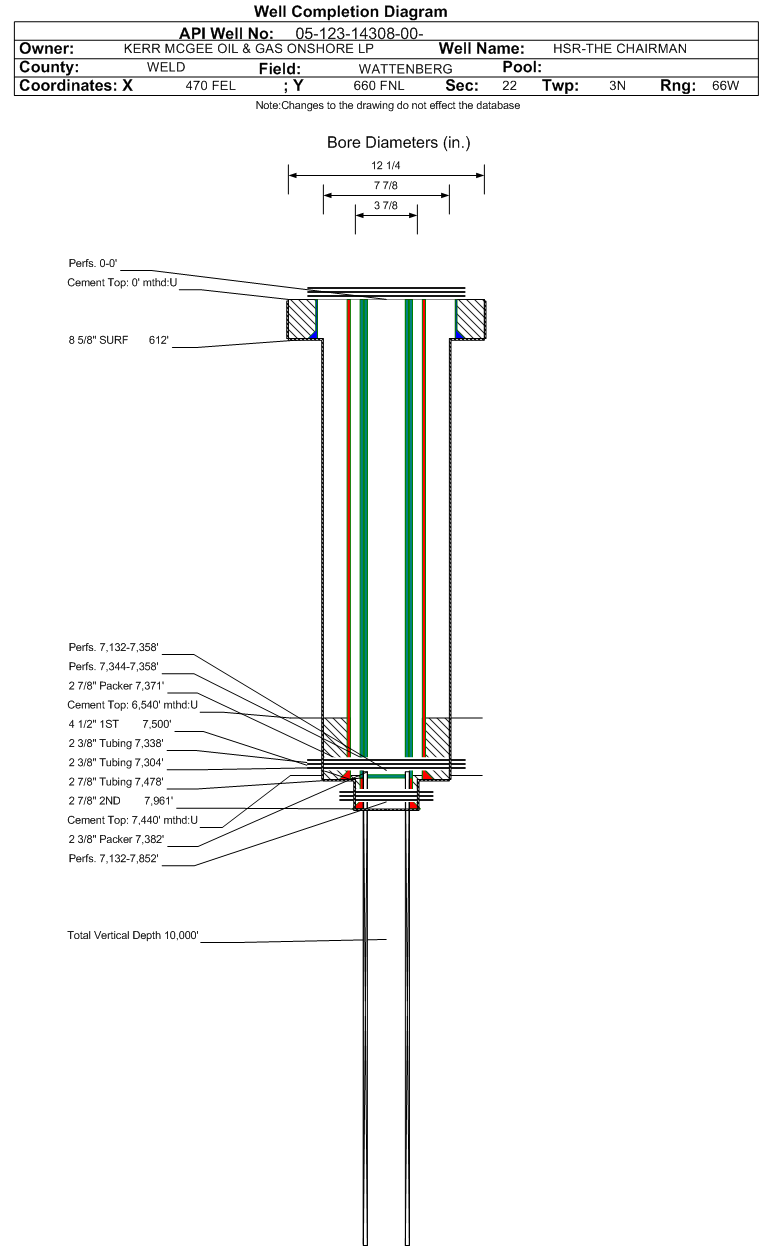

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14308		Well Classification: GW Status: SI - 7/1/2020
Well Name/No:HSR-THE CHAIRMAN #1-22A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2020
FacilityID:246511LocationID:327202
County:WELD #123Location:NENE 22 3N66W 6
Field:WATTENBERG - #90750Elevation:4903 ft.
Planned Location:660FNL  470 FELLat/Long: 40.216027 / -104.755570Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.216082 / -104.755458Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 7/1/2020             Measured TD: 7961 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 7/1/2020
Wellbore Permit
Permit #:19980429 Expiration Date:5/4/1999
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407 , Unit Acreage: 80, Drill Unit: E2NE
Formation And Spacing:Code: JNBCD , Formation: J-NIOBRARA-CODELL , Order: 232 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:N/A
Spud Date:7/8/1989Spud Date Is:ACTUAL
Measured TD:7961 ft.Measured PB depth:7927 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:FDCN, ISP/C-, CBL
Log Types:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 612 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 285, Top: 0 ft., Bottom: 612 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7500 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 6540 ft., Bottom: 7500 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 3.875 in., Size: 2.875 in., Top: 7440 ft., Depth: 7961 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 7440 ft., Bottom: 7961 ft., Determination Method: CALC
Additional Cement:String Type: 1ST , Top: 4090 ft., Depth: 4814 ft., Bottom: 4824 ft., Sacks: 350, Method: 1 INCH
Additional Cement:String Type: 1ST , Top: 716 ft., Depth: 1200 ft., Bottom: 1284 ft., Sacks: 175, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7130 ft.NN
FORT HAYS7319 ft.NN
CODELL7340 ft.NN
GREENHORN7424 ft.NN
J SAND7800 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/16/2002                 Interval Top: 7344 ft.    Interval Bottom: 7358 ft.

 Completed Information for Formation CODELL
1st Production Date:1/5/1990Choke Size:0.250 in.
Formation Name:CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:6/1/1998
Treatment Summary:FRAC'D W/24,000# 100 MESH SAND; 500,000# 20/40 MESH SAND; 88,550 GAL GELLED FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7304 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/1990Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 10
CALC_BBLS_H2O 0
CALC_BBLS_OIL 10
CALC_GOR 6500
CALC_MCF_GAS 65
CASING_PRESS 2250
GRAVITY_OIL 60
MCF_GAS 65
TUBING_PRESS 1200
Perforation Data:
Interval Top:7344 ft.# Of Holes:15
Interval Bottom:7358 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 2/16/2002                 Interval Top: 7132 ft.    Interval Bottom: 7852 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:1/16/2002Choke Size:0.375 in.
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:6/1/1998
Treatment Summary:COMMINGLED JNBCD
Tubing Size:2.375 in.Tubing Setting Depth:7338 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2002Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 10
CALC_BBLS_OIL 10
CALC_GOR 31300
CALC_MCF_GAS 313
CASING_PRESS 425
GRAVITY_OIL 60
MCF_GAS 313
TUBING_PRESS 260
Perforation Data:
Interval Top:7132 ft.# Of Holes:
Interval Bottom:7852 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  SI - 7/1/2020                  Interval Top: 7132 ft.    Interval Bottom: 7358 ft.

 Completed Information for Formation J SAND
1st Production Date:6/3/1998Choke Size:0.218 in.
Formation Name:J SANDCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:6/1/1998
Treatment Summary:FRAC'D JSND W/ 294,489 GALS FRACGEL 25,30,28,25,22 HT & 560,000# 20/40 OTTAWA SAND.(WAS SHUT IN FOR CODL REFRAC IN 2002).
Tubing Size:2.875 in.Tubing Setting Depth:7478 ft.
Tubing Packer Depth:7391 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/1998Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 12
CALC_BBLS_H2O 0
CALC_BBLS_OIL 12
CALC_GOR 72000
CALC_MCF_GAS 864
GRAVITY_OIL 60
MCF_GAS 864
TUBING_PRESS 1000
Perforation Data:
Interval Top:7132 ft.# Of Holes:31
Interval Bottom:7358 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  SI - 5/1/2017

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/7/1993Choke Size:0.375 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:PLUNGER
Open Hole Completion:
Formation Treatment
Treatment Date:6/1/1998
Treatment Summary:(SEE CODL) NB: FRAC'D W/164,000# 20/40 MESH SAND + 52,641 GAL GELLED FLUID,1993. // REFRAC CODL W/261,000# 20/40 MESH & 86,222 GAL.GELLED FLUID. REPERF CODL 7344' - 7354', 2002.
Tubing Size:2.375 in.Tubing Setting Depth:7338 ft.
Tubing Packer Depth:7402 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/2002Test Method:PLUNGER
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 4
CALC_BBLS_OIL 4
CALC_GOR 24750
CALC_MCF_GAS 99
CASING_PRESS 425
GRAVITY_OIL 60
MCF_GAS 99
TUBING_PRESS 260
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
06/30/2020
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
