COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14210		Well Classification: GW Status: PA - 8/23/2021
Well Name/No:HARLESS PM C #17-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:67784
Facility Status:PAStatus Date8/23/2021
FacilityID:246413LocationID:327135
County:WELD #123Location:NWNE 17 4N64W 6
Field:WATTENBERG - #90750Elevation:4730 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  1980 FELLat/Long: 40.318006 / -104.572065Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.317337 / -104.572244Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/23/2021             Measured TD: 7108 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/23/2021
Wellbore Permit
Permit #:890061 Expiration Date:9/30/1989
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:6/24/1989
Spud Date:6/19/1989Spud Date Is:ACTUAL
Measured TD:7108 ft.Measured PB depth:7098 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL

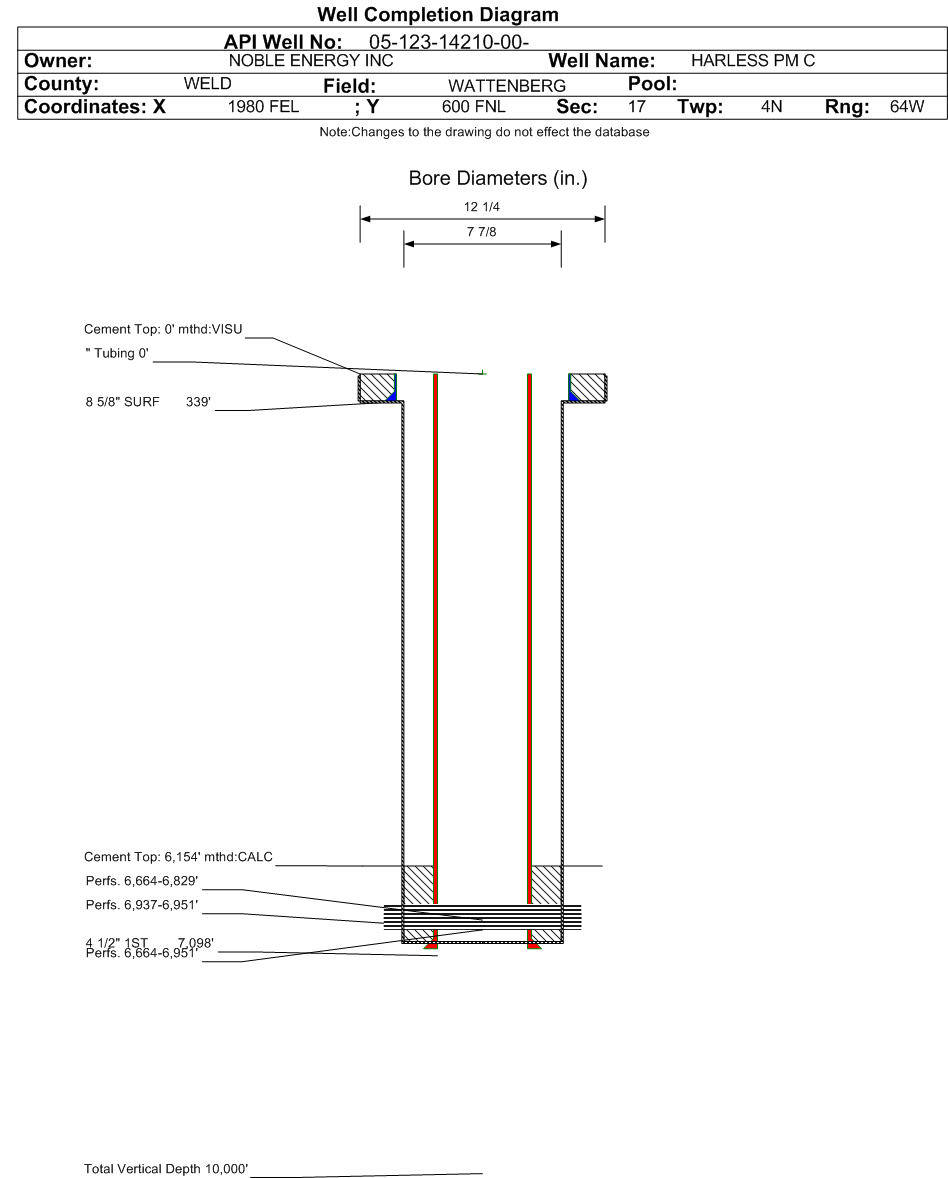

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 339 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 170, Top: 0 ft., Bottom: 339 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7098 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 6144 ft., Bottom: 7098 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7098 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 576 ft., Determination Method: VISU
Additional Cement:String Type: SURF , Top: 0 ft., Depth: 562 ft., Bottom: 576 ft., Sacks: 250, Method: 1 INCH
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6732 ft.
CODELL6935 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/19/2020                 Interval Top: 6937 ft.    Interval Bottom: 6951 ft.

 Completed Information for Formation CODELL
1st Production Date:7/14/1989Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/25/2007
Treatment Summary:TRI-FRAC CODELL W/128,352 GAL VISTAR 28# AND 249,280# 20/40 OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 19
CALC_BBLS_H2O 13
CALC_BBLS_OIL 19
CALC_GOR 16000
CALC_MCF_GAS 295
CASING_PRESS 500
MCF_GAS 295
TUBING_PRESS 200
Perforation Data:
Interval Top:6937 ft.# Of Holes:65
Interval Bottom:6951 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 8/23/2021                 Interval Top: 6664 ft.    Interval Bottom: 6951 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:7/14/1989Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/28/1989
Treatment Summary:COMMINGLE NBRR/CODELL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 5
BTU_GAS 1266
CALC_GOR 21200
CASING_PRESS 330
MCF_GAS 106
TUBING_PRESS 180
Perforation Data:
Interval Top:6664 ft.# Of Holes:240
Interval Bottom:6951 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/19/2020                 Interval Top: 6664 ft.    Interval Bottom: 6829 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/14/1989Choke Size:
Formation Name:NIOBRARACommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/28/1989
Treatment Summary:CLEAN OUT SAND PLUG AND COMMINGLE WITH CODELL, 6/02/05.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 16
BTU_GAS 1259
CALC_BBLS_H2O 0
CALC_BBLS_OIL 16
CALC_GOR 8563
CALC_MCF_GAS 137
CASING_PRESS 570
GRAVITY_OIL 54
MCF_GAS 137
TUBING_PRESS 210
Perforation Data:
Interval Top:6664 ft.# Of Holes:175
Interval Bottom:6829 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/23/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
