COGIS - WELL SCOUT CARD

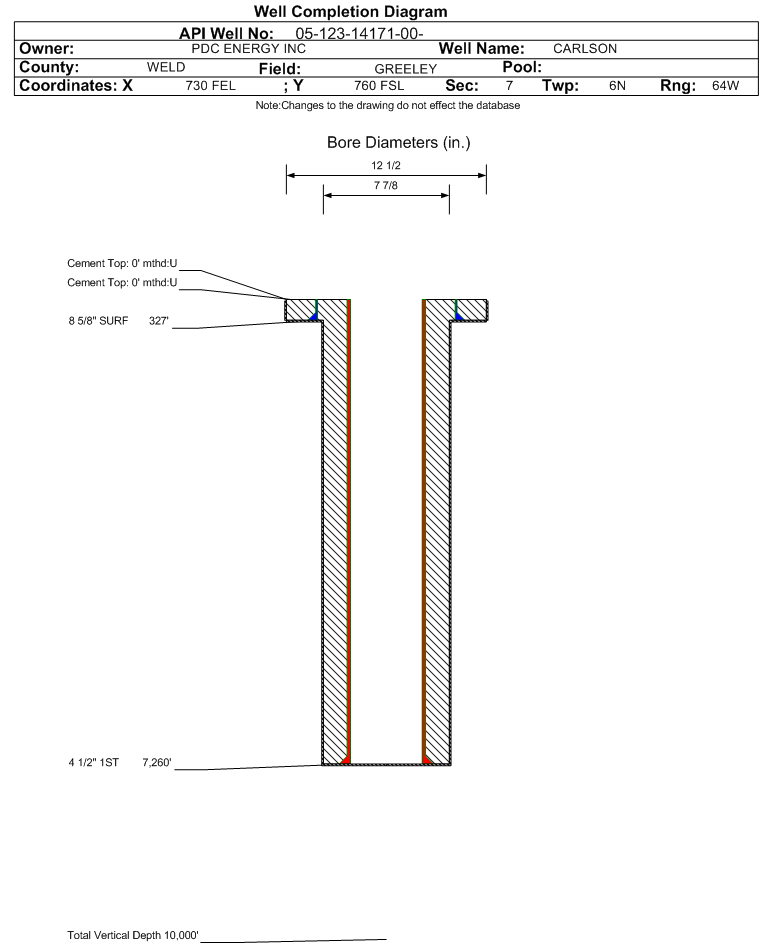

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14171		Well Classification: GW Status: PA - 11/16/2023
Well Name/No:CARLSON #44-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:58429
Facility Status:PAStatus Date11/16/2023
FacilityID:246374LocationID:327108
County:WELD #123Location:SESE 7 6N64W 6
Field:GREELEY - #32760Elevation:4725 ft.
Basin:DENVER (DJ) BASIN
Planned Location:760FSL  730 FELLat/Long: 40.495274 / -104.586657Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.495360 / -104.586330Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/16/2023             Measured TD: 7315 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/16/2023
Wellbore Permit
Permit #:881237 Expiration Date:4/10/1989
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: PRKM , Formation: PARKMAN , Order: 0 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:12/30/1988
Spud Date:12/15/1988Spud Date Is:ACTUAL
Measured TD:7315 ft.Measured PB depth:3758 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 327 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 327 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7260 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 1150 ft., Bottom: 7260 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN3668 ft.
NIOBRARA6693 ft.
FORT HAYS6978 ft.
CODELL7014 ft.

Formation PRKM                     Formation Classification:  GW                     Status:  AB - 3/1/1989                  Interval Top: 3668 ft.

 Completed Information for Formation PARKMAN
1st Production Date:12/31/1988Choke Size:0.000 in.
Formation Name:PARKMANCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation PRKM.
No Perforation Data was found for formation PRKM.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/16/2023

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/6/1989Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/16/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
