Wellbore #00 Wellbore Classification: OW Status: SI - 10/1/2022 Measured TD: 7380 ft. Vertical TD: 7380 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW SI - 10/1/2022 | | Wellbore Permit | | | Permit #: | 881188 | Expiration Date: | 3/28/1989 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit: |
| | |

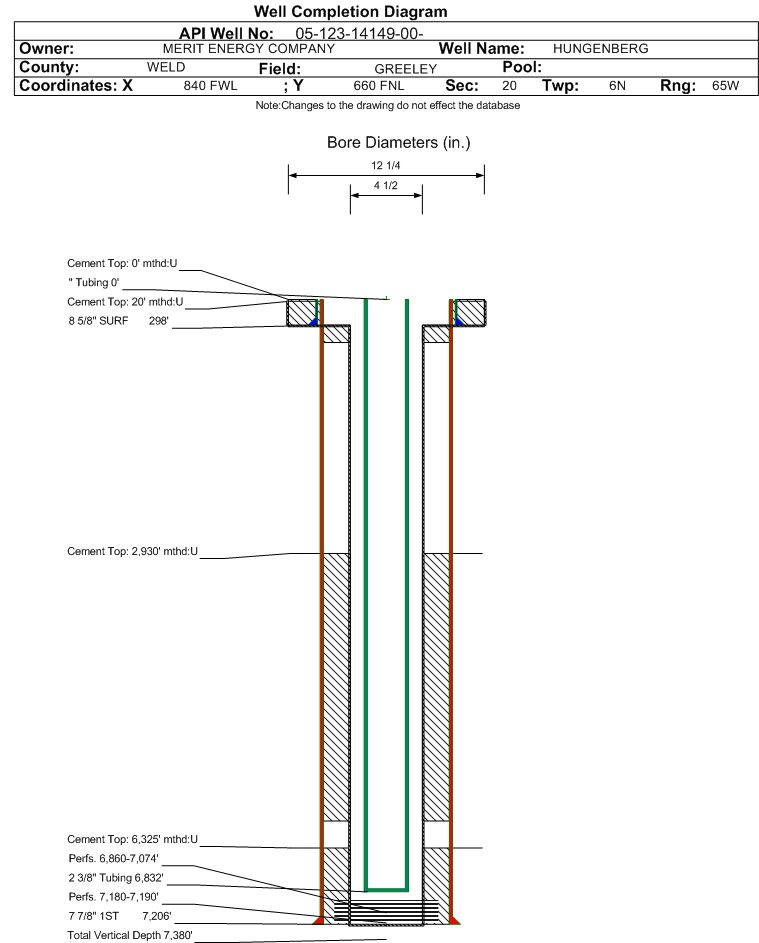

| Wellbore Completed | | Completion Date: | 12/2/1988 | | Spud Date: | 11/22/1988 | Spud Date Is: | ACTUAL | | Measured TD: | 7380 ft. | Measured PB depth: | 7206 ft. | | True Vertical TD: | 7380 ft. | True Vertical PB depth: | 7206 ft. | | Log Types: | CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 298 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 298 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 4.5 in., Size: 7.875 in., Top: 0 ft., Depth: 7206 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 6325 ft., Bottom: 7206 ft., Determination Method: | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6014 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 2930 ft., Bottom: 6014 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 492 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 520, Top: 20 ft., Bottom: 496 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 20 ft., Depth: 6014 ft., Bottom: 6014 ft., Sacks: 1120, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3780 ft. | | N | N | | NIOBRARA | 6865 ft. | 7059 ft. | N | N | | FORT HAYS | 7140 ft. | | N | N | | CODELL | 7180 ft. | | N | N | | CARLILE | 7197 ft. | | N | N |
Formation CODL Formation Classification: OW Status: AB - 1/1/2012 Interval Top: 7180 ft. Interval Bottom: 7190 ft.| Completed Information for Formation CODELL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/2/1988 | | Treatment Summary: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 7180 ft. | # Of Holes: | | | Interval Bottom: | 7190 ft. | Hole Size: | |
|
Formation NBRR Formation Classification: OW Status: SI - 10/1/2022 Interval Top: 6860 ft. Interval Bottom: 7074 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 1/14/2009 | Choke Size: | 0.000 in. | | Formation Name: | NIOBRARA | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/14/2009 | | Treatment Summary: | FRAC'D W/ 4,173 BBLS FRAC FLUID & 238,500 # OTTAWA 30/50 SAND & 12,000 # SB EXCEL 12/20 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6832 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/14/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | SHALE | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 18 | | BBLS_OIL | 36 | | BTU_GAS | 1288 | | CALC_GOR | 8056 | | CASING_PRESS | 250 | | GRAVITY_OIL | 53 | | MCF_GAS | 290 | | TUBING_PRESS | 200 |
| | Perforation Data: | | Interval Top: | 6860 ft. | # Of Holes: | 348 | | Interval Bottom: | 7074 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
03/01/2024 |
| Defined Inactive (SI ) | Y | Defined Inactive
09/30/2022 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
