COGIS - WELL SCOUT CARD

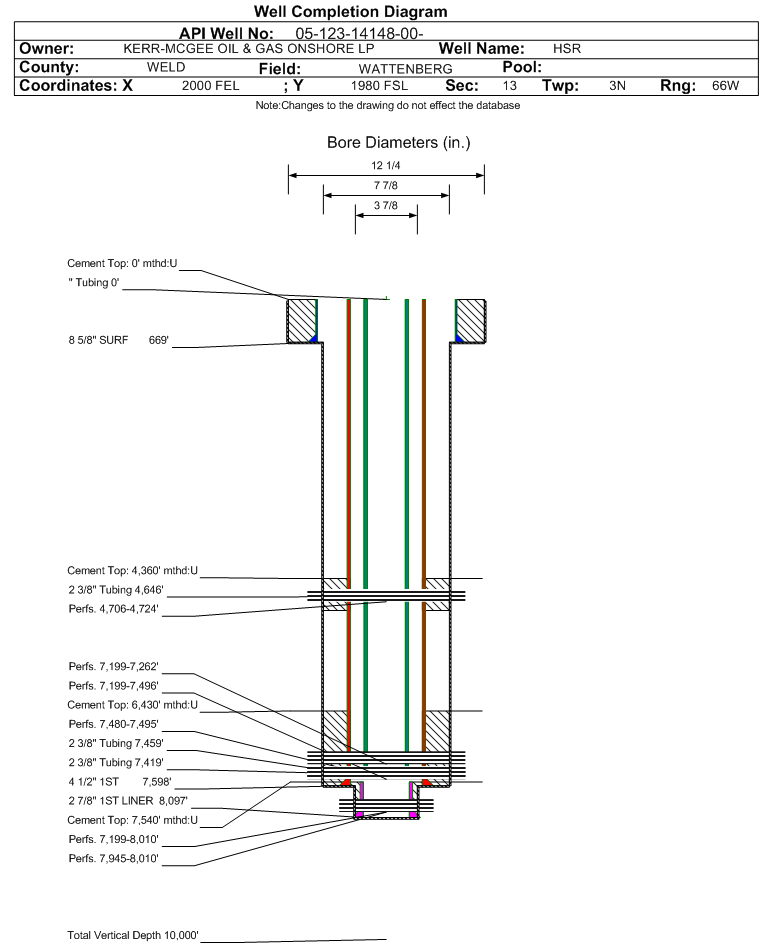

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-14148		Well Classification: GW Status: PA - 10/6/2023
Well Name/No:HSR #10-13A
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/6/2023
FacilityID:246351LocationID:327094
County:WELD #123Location:NWSE 13 3N66W 6
Field:WATTENBERG - #90750Elevation:5047 ft.
Planned Location:1980FSL  2000 FELLat/Long: 40.223417 / -104.722899Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.223559 / -104.722834Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/6/2023             Measured TD: 8097 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/6/2023
Wellbore Permit
Permit #:20011454 Expiration Date:7/24/2002
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2SE
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:10/15/2001
Spud Date:12/1/1988Spud Date Is:ACTUAL
Measured TD:8097 ft.Measured PB depth:8064 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SFL/GR; CBL; DEN/CNL/GR
Log Types:CDCNGR, IGRS, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 679 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 679 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7608 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 6450 ft., Bottom: 7608 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4724 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4706 ft., Bottom: 4724 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 3.875 in., Size: 2.875 in., Top: 7540 ft., Depth: 8097 ft., Weight: 6.5 , Citings Type: ACTUAL
Cement:Sacks: 35, Top: 7540 ft., Bottom: 8097 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4870 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 4380 ft., Bottom: 4800 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4626 ft.NN
NIOBRARA7198 ft.NN
FORT HAYS7457 ft.NN
CODELL7478 ft.NN
GREENHORN7560 ft.NN
J SAND7940 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 10/6/2023                 Interval Top: 7945 ft.    Interval Bottom: 8010 ft.

 Completed Information for Formation J SAND
1st Production Date:10/30/2001Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/2012
Treatment Summary:REMOVED SAND PLUG SET @ 7600-7602 TO COMMINGLE WITH NB/CD
Formation Treatment
Treatment Date:4/20/2010
Treatment Summary:SET SAND PLUG @ 7600.
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:FRAC'D J SAND W/500,100# 20/40 MESH; 211434 GALS GELLED FLUID. NO J SAND TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:7945 ft.# Of Holes:96
Interval Bottom:8010 ft.Hole Size:0.21 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 12/3/2001                 Interval Top: 7480 ft.    Interval Bottom: 7495 ft.

 Completed Information for Formation CODELL
1st Production Date:1/12/1990Choke Size:0.187 in.
Formation Name:CODELLCommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:7480-7495' FRAC'D W/24,000# 20/40 MESH SAND + 500,000# 20/40 MESH SAND + 87,440 GAL FLUID.
Tubing Size:2.375 in.Tubing Setting Depth:7419 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/19/1990Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 61
CALC_BBLS_H2O 0
CALC_BBLS_OIL 61
CALC_GOR 5083
CALC_MCF_GAS 61
CASING_PRESS 3000
GRAVITY_OIL 60
MCF_GAS 61
TUBING_PRESS 3000
Perforation Data:
Interval Top:7480 ft.# Of Holes:16
Interval Bottom:7495 ft.Hole Size:0.38 in.

Formation JNBCD                   Formation Classification:  OW                   Status:  CM - 3/1/2012                  Interval Top: 7199 ft.    Interval Bottom: 8010 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/30/2001Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/2012
Treatment Summary:REMOVED SAND PLUG SET @ 7600-7602 TO COMMINGLE WITH NB/CD. RETURNED DOWN LINE ON 2/15/2012.
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:COMMINGLED J-NBRR-CODL. (SEE INDIV FORMATIONS FOR TREATMENTS).
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/26/2012Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 2
BTU_GAS 1227
CALC_BBLS_H2O 0
CALC_BBLS_OIL 2
CALC_GOR 49500
CALC_MCF_GAS 99
CASING_PRESS 561
GRAVITY_OIL 62
MCF_GAS 99
TUBING_PRESS 460
Perforation Data:
Interval Top:7199 ft.# Of Holes:174
Interval Bottom:8010 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/6/2023                 Interval Top: 7199 ft.    Interval Bottom: 7496 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/14/2010Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/30/2010
Treatment Summary:NBRR PEF 7199-7262 HOLES 15. CODL PERF 7480-7496 HOLES 63 SIZE 0.38. REPERF CODL 7480-7496 HOLES 48 SIZE 0.38. REFRAC CODL W/ 167641 GAL SW & 116360# 40/70 SAND AND 4000# SB EXCEL.
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:COMMINGLED NBRR & CODL..SEE INDIV FORMATIONS FOR TREATMENT DETAILS.
Tubing Size:2.375 in.Tubing Setting Depth:7459 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/9/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 8
BTU_GAS 1240
CALC_BBLS_H2O 0
CALC_BBLS_OIL 5
CALC_GOR 23600
CALC_MCF_GAS 118
CASING_PRESS 428
GRAVITY_OIL 60
MCF_GAS 116
TUBING_PRESS 359
Perforation Data:
Interval Top:7199 ft.# Of Holes:78
Interval Bottom:7496 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 12/3/2001                 Interval Top: 7199 ft.    Interval Bottom: 7262 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:7/26/1993Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:7199-7262' FRAC'D W/228,900# 20/40 MESH SAND + 64,410 GAL GELLED FLUID. NO NBRR TEST.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7199 ft.# Of Holes:17
Interval Bottom:7262 ft.Hole Size:0.38 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 7/14/1993                 Interval Top: 4706 ft.    Interval Bottom: 4724 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/22/1990Choke Size:0.187 in.
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/15/2001
Treatment Summary:4076-4724' FRAC'D W/240,000# 20/40 MESH & 53,250 GALS GELLED WATER.
Tubing Size:2.375 in.Tubing Setting Depth:4646 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/11/1990Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 7
CALC_BBLS_H2O 0
CALC_BBLS_OIL 7
CALC_GOR 8429
CALC_MCF_GAS 59
CASING_PRESS 650
GRAVITY_OIL 60
MCF_GAS 59
TUBING_PRESS 500
Perforation Data:
Interval Top:4706 ft.# Of Holes:36
Interval Bottom:4724 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/06/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
