COGIS - WELL SCOUT CARD

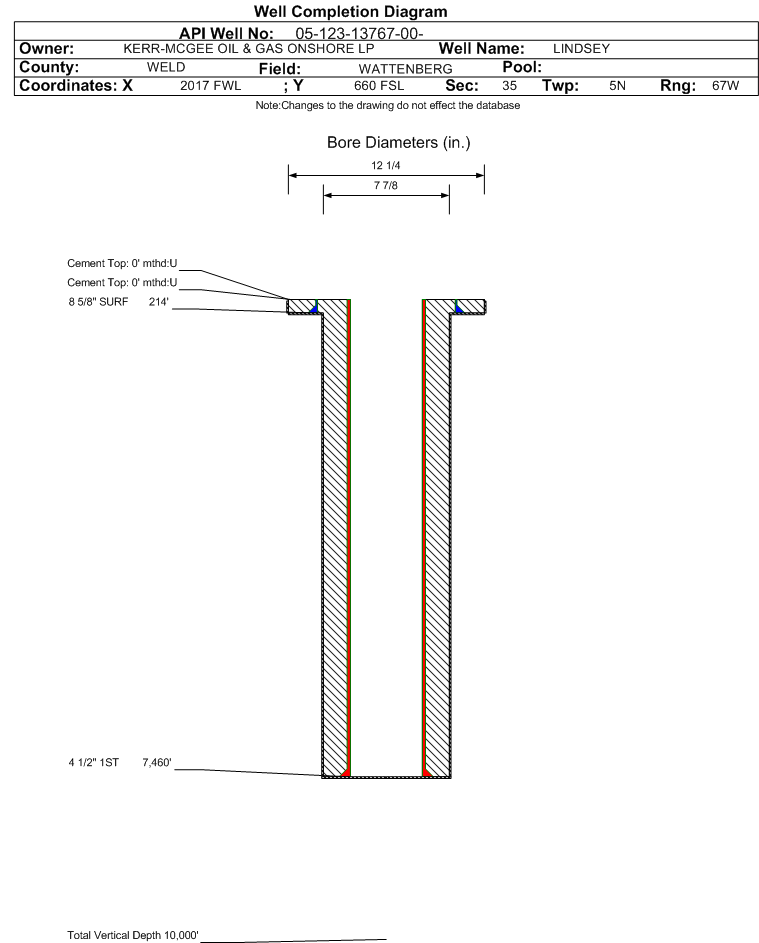

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13767		Well Classification: GW Status: PA - 10/14/2025
Well Name/No:LINDSEY #1-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:62732
Facility Status:PAStatus Date10/14/2025
FacilityID:245971LocationID:326849
Municipality/County:MILLIKEN / WELD #123Location:SESW 35 5N67W 6
Field:WATTENBERG - #90750Elevation:4868 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  2017 FWLLat/Long: 40.350714 / -104.862624Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.350653 / -104.862572Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/14/2025             Measured TD: 7520 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/14/2025
Wellbore PermitDRIFTED
Permit #:871043 Expiration Date:4/14/1988
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:2/26/1988
Measured TD:7520 ft.Measured PB depth:7443 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 214 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 185, Top: 0 ft., Bottom: 214 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7460 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 6462 ft., Bottom: 7460 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7014 ft.
CODELL7342 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/5/1988                  Interval Top: 7342 ft.

 Completed Information for Formation CODELL
1st Production Date:2/26/1988Choke Size:2,000.000 in.
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
No Perforation Data was found for formation CODL.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/14/2025

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/14/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
10/30/2025
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
