COGIS - WELL SCOUT CARD

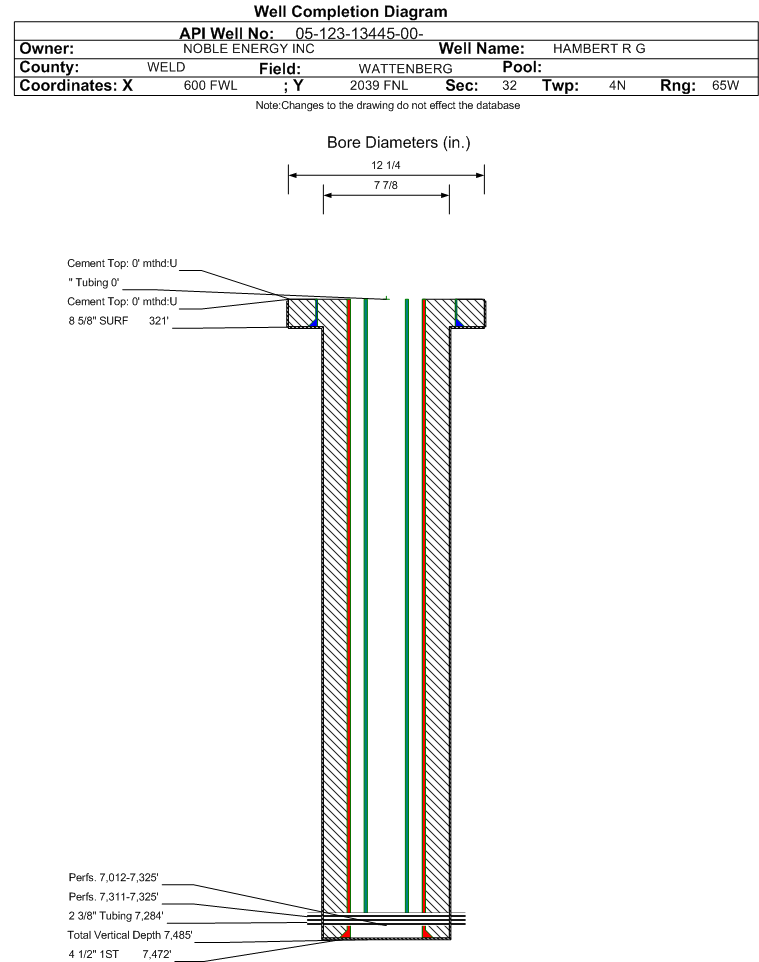

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13445		Well Classification: GW Status: PA - 12/28/2020
Well Name/No:HAMBERT R G #32-5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68567
Facility Status:PAStatus Date12/28/2020
FacilityID:245650LocationID:336567
County:WELD #123Location:SWNW 32 4N65W 6
Field:WATTENBERG - #90750Elevation:4895 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2039FNL  600 FWLLat/Long: 40.270506 / -104.694478Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.270610 / -104.694540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/28/2020             Measured TD: 7485 ft.    Vertical TD: 7485 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/28/2020
Wellbore Permit
Permit #:870237 Expiration Date:8/14/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:8/7/1987
Measured TD:7485 ft.Measured PB depth:7472 ft.
True Vertical TD:7485 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 321 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 321 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 321 ft., Weight: 24 , Citings Type: HISTORICAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 321 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7472 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 6601 ft., Bottom: 7472 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7472 ft., Weight: 11.6 , Citings Type: HISTORICAL
Cement:Sacks: 220, Top: 6600 ft., Bottom: 7472 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4700 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4260 ft., Bottom: 4558 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7472 ft., Weight: 11.6 , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 4238 ft., Bottom: 4684 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1593 ft.
SUSSEX4498 ft.
NIOBRARA7010 ft.
FORT HAYS7285 ft.
CODELL7309 ft.
CARLILE7325 ft.
GREENHORN7366 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 7/18/2008                 Interval Top: 7309 ft.    Interval Bottom: 7325 ft.

 Completed Information for Formation CODELL
1st Production Date:8/8/1987Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/28/2008
Treatment Summary:TRI-FRAC'D THE CODELL W/ 139,944 GALS VISTAR AND 247,000#'S OTTAWA SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7309 ft.# Of Holes:64
Interval Bottom:7325 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/28/2020                Interval Top: 7012 ft.    Interval Bottom: 7325 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/8/1987Choke Size:0.438 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/7/1987
Treatment Summary:COMMINGLE THE NIOBRARA AND CODELL. WELL TURNED ON 7/02/08.
Tubing Size:2.375 in.Tubing Setting Depth:7284 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/18/2008Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 9
BTU_GAS 1243
CALC_BBLS_H2O 2
CALC_BBLS_OIL 9
CALC_GOR 19556
CALC_MCF_GAS 176
CASING_PRESS 630
GRAVITY_OIL 64
MCF_GAS 176
TUBING_PRESS 580
Perforation Data:
Interval Top:7012 ft.# Of Holes:74
Interval Bottom:7325 ft.Hole Size:

Formation NBRR                     Formation Classification:                       Status:  CM - 7/18/2008                 Interval Top: 7012 ft.    Interval Bottom: 7193 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/8/1987Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7012 ft.# Of Holes:10
Interval Bottom:7193 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/28/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
