Wellbore #00 Wellbore Classification: GW Status: SI - 8/21/2024 Measured TD: 7361 ft. Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 8/21/2024 | Wellbore Permit | DRIFTED | Permit #: | 20040100 | Expiration Date: | 2/3/2005 | Proposed Depth/Form: | 7770 ft. | Surface Mineral Owner Same: | No | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: , Unit Acreage: 80, Drill Unit: W2NE | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232 , Unit Acreage: 320, Drill Unit: N2 |
| | |

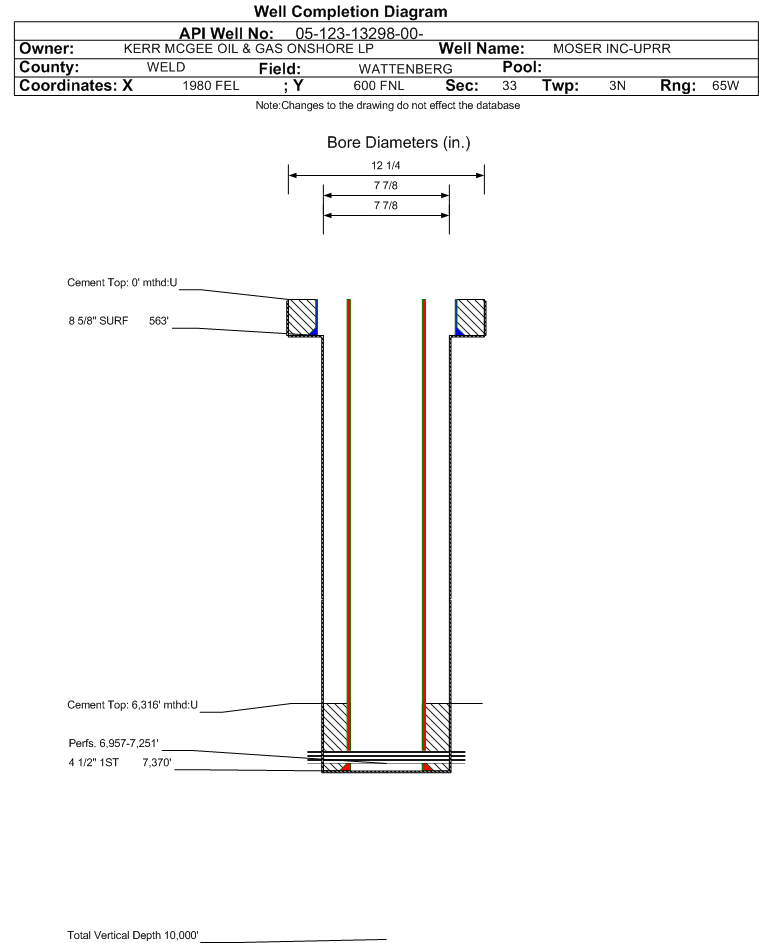

Wellbore Completed | Completion Date: | N/A | Spud Date: | 12/26/1986 | Spud Date Is: | ACTUAL | Measured TD: | 7361 ft. | Measured PB depth: | 7351 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | DIGL, SOL-DSN, MICROLOG, CAL, GAMMA | Log Types: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 563 ft., Weight: 24 , Citings Type: ACTUAL | Cement: | Sacks: 275, Top: 0 ft., Bottom: 563 ft., Determination Method: VISU | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7370 ft., Weight: 15.1 , Citings Type: ACTUAL | Cement: | Sacks: 225, Top: 6316 ft., Bottom: 7370 ft., Determination Method: CBL | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4676 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 350, Top: 3454 ft., Bottom: 4676 ft., Determination Method: CBL | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 1215 ft., Weight: , Citings Type: ACTUAL | Cement: | Sacks: 377, Top: 335 ft., Bottom: 1218 ft., Determination Method: CALC | Formation | Interval Top | Log Bottom | Cored | DSTs | SUSSEX | 4415 ft. | | N | N | NIOBRARA | 6948 ft. | | N | N | FORT HAYS | 7226 ft. | | N | N | CODELL | 7241 ft. | | N | N | CARLILE | 7255 ft. | | N | N | GREENHORN | 7296 ft. | | N | N |
Formation CODL Formation Classification: GW Status: CM - 9/9/2024 Interval Top: 7251 ft. Interval Bottom: 7423 ft. Completed Information for Formation CODELL | 1st Production Date: | 12/12/1998 | Choke Size: | | Formation Name: | CODELL | Commingled: | | Production Method: | | Open Hole Completion: | |
| Tubing Size: | | Tubing Setting Depth: | | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | No Initial Test Data was found for formation CODL. |
| Perforation Data: | Interval Top: | 7251 ft. | # Of Holes: | 18 | Interval Bottom: | 7423 ft. | Hole Size: | |
|
Formation NB-CD Formation Classification: GW Status: AB - 5/10/2024 Interval Top: 6957 ft. Interval Bottom: 7423 ft. Completed Information for Formation NIOBRARA-CODELL | 1st Production Date: | 12/12/1986 | Choke Size: | | Formation Name: | NIOBRARA-CODELL | Commingled: | | Production Method: | | Open Hole Completion: | |
| Formation Treatment | Treatment Date: | 1/17/1987 | Treatment Summary: | SPEARHEAD 1500 GAL 7.5% HCL; FRAC W/150,670 GAL 3% KCL GEL; 7500# 100 MESH; 400,000# 20/40; ISIP 4000, 15 MIN 3730# ATP 5400# @36 BPI. |
| Tubing Size: | | Tubing Setting Depth: | | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | N/A | Test Method: | | Hours Tested: | | Gas Type: | | Gas Disposal: | | |
Test Type | Measure |
---|
BBLS_H2O | 0 | BBLS_OIL | 44 | CALC_BBLS_OIL | 150 | CALC_GOR | 6136 | CALC_MCF_GAS | 925 | CASING_PRESS | 2400 | GRAVITY_OIL | 57 | MCF_GAS | 270 |
| Perforation Data: | Interval Top: | 6957 ft. | # Of Holes: | 18 | Interval Bottom: | 7423 ft. | Hole Size: | 0.375 in. |
|
Formation NBRR Formation Classification: GW Status: CM - 9/9/2024 Interval Top: 6957 ft. Interval Bottom: 7121 ft. Completed Information for Formation NIOBRARA | 1st Production Date: | 12/12/1986 | Choke Size: | | Formation Name: | NIOBRARA | Commingled: | | Production Method: | | Open Hole Completion: | |
| Tubing Size: | | Tubing Setting Depth: | | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | No Initial Test Data was found for formation NBRR. |
| Perforation Data: | Interval Top: | 6957 ft. | # Of Holes: | 18 | Interval Bottom: | 7121 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
Reported Plugged | Y | 05/10/2024 |
Out Of Service Repurposed | N | |
Out Of Service | Y | Plugging Due Date 12/31/2030 |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 0 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 0.000 |
Average MCFE per Day | 0.000 |
Federal Financial Assurance | i | |
|
|
