COGIS - WELL SCOUT CARD

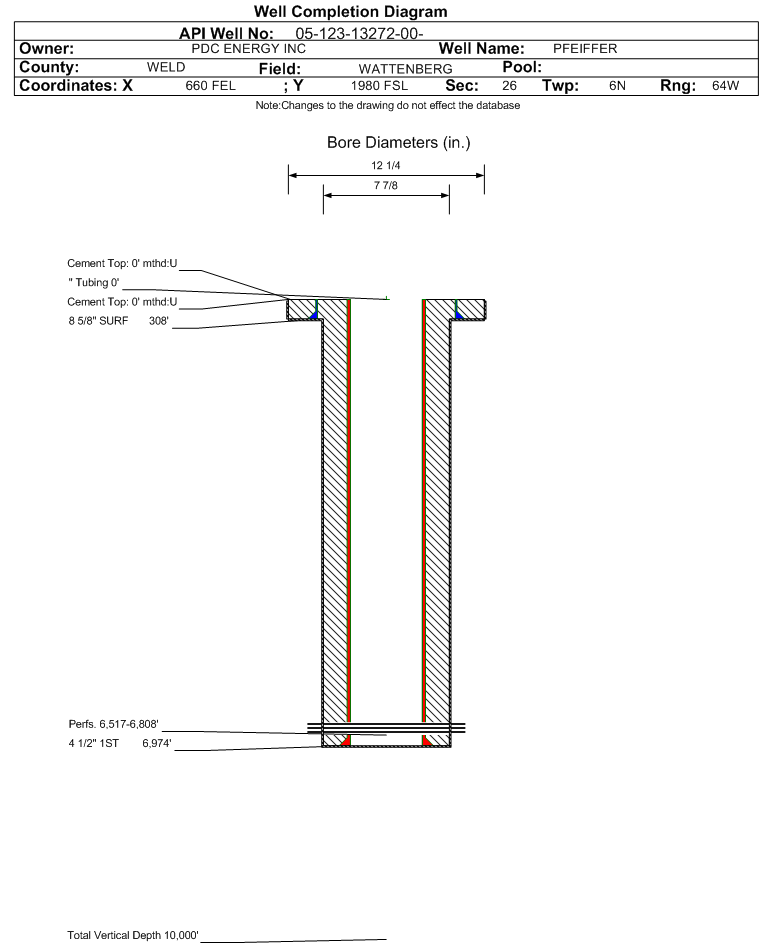

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13272		Well Classification: GW Status: PA - 1/31/2022
Well Name/No:PFEIFFER #9-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68342
Facility Status:PAStatus Date1/31/2022
FacilityID:245477LocationID:323612
County:WELD #123Location:NESE 26 6N64W 6
Field:WATTENBERG - #90750Elevation:4625 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 40.455435 / -104.510304Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.455581 / -104.510191Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 1/31/2022             Measured TD: 6974 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 1/31/2022
Wellbore Permit
Permit #:860825 Expiration Date:4/7/1978
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:12/23/1986
Measured TD:6974 ft.Measured PB depth:6961 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 308 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 308 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6974 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 5850 ft., Bottom: 6974 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5210 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1263, Top: 0 ft., Bottom: 5220 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6515 ft.
CODELL6794 ft.

Formation CODL                     Formation Classification:                       Status:  CM - 3/1/2021                  Interval Top: 6794 ft.    Interval Bottom: 6808 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:6794 ft.# Of Holes:4
Interval Bottom:6808 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 1/31/2022                 Interval Top: 6517 ft.    Interval Bottom: 6808 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/23/1986
Treatment Summary:FRAC W/275,100# 20/40 SAND - 138,228 GALS. FRAC FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 10
CALC_BBLS_H2O 2
CALC_BBLS_OIL 10
CALC_GOR 6
CALC_MCF_GAS 56
CASING_PRESS 675
MCF_GAS 56
TUBING_PRESS 550
Perforation Data:
Interval Top:6517 ft.# Of Holes:16
Interval Bottom:6808 ft.Hole Size:

Formation NBRR                     Formation Classification:                       Status:  CM - 3/1/2021                  Interval Top: 6517 ft.    Interval Bottom: 6706 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6517 ft.# Of Holes:12
Interval Bottom:6706 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/31/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
