COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13257		Well Classification: GW Status: PA - 10/28/2024
Well Name/No:DARLING #6-27 EG
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:55816
Facility Status:PAStatus Date10/28/2024
FacilityID:245462LocationID:323602
County:WELD #123Location:NENW 27 6N65W 6
Field:WATTENBERG - #90750Elevation:4708 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1980 FWLLat/Long: 40.462494 / -104.651758Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.462580 / -104.651750Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/28/2024             Measured TD: 7138 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/28/2024
Wellbore Permit
Permit #:860772 Expiration Date:3/20/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 160, Drill Unit: 27-6N-65W: NW/4
Wellbore Completed
Completion Date:11/26/1986
Spud Date:11/21/1986Spud Date Is:ACTUAL
Measured TD:7138 ft.Measured PB depth:7124 ft.
True Vertical TD:True Vertical PB depth:
Log Types:Gamma Ray CCL/CBL

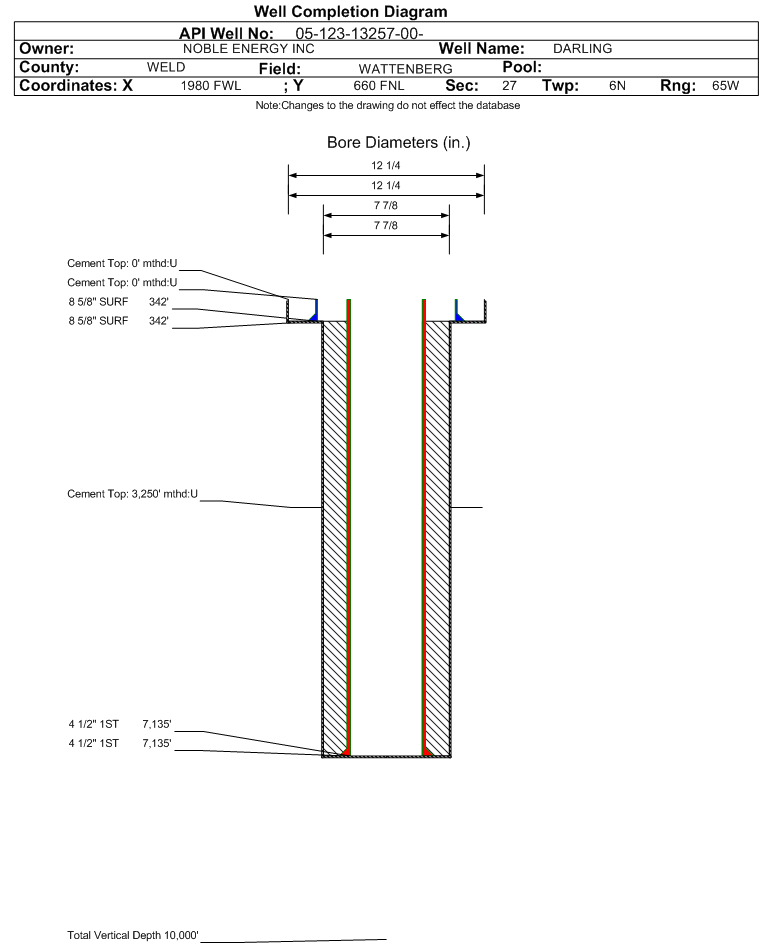

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 342 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 342 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7135 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 5594 ft., Bottom: 7135 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 4288 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 305, Top: 3250 ft., Bottom: 4288 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 762 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 76 ft., Bottom: 762 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6771 ft.
FORT HAYS7008 ft.
CODELL7046 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 4/16/2025                 Interval Top: 7048 ft.    Interval Bottom: 7064 ft.

 Completed Information for Formation CODELL
1st Production Date:12/23/1986Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7048 ft.# Of Holes:69
Interval Bottom:7064 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/28/2024                Interval Top: 6794 ft.    Interval Bottom: 7064 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/23/1986Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6794 ft.# Of Holes:78
Interval Bottom:7064 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 4/16/2025                 Interval Top: 6794 ft.    Interval Bottom: 6932 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/23/1986Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6794 ft.# Of Holes:9
Interval Bottom:6932 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/28/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
