COGIS - WELL SCOUT CARD

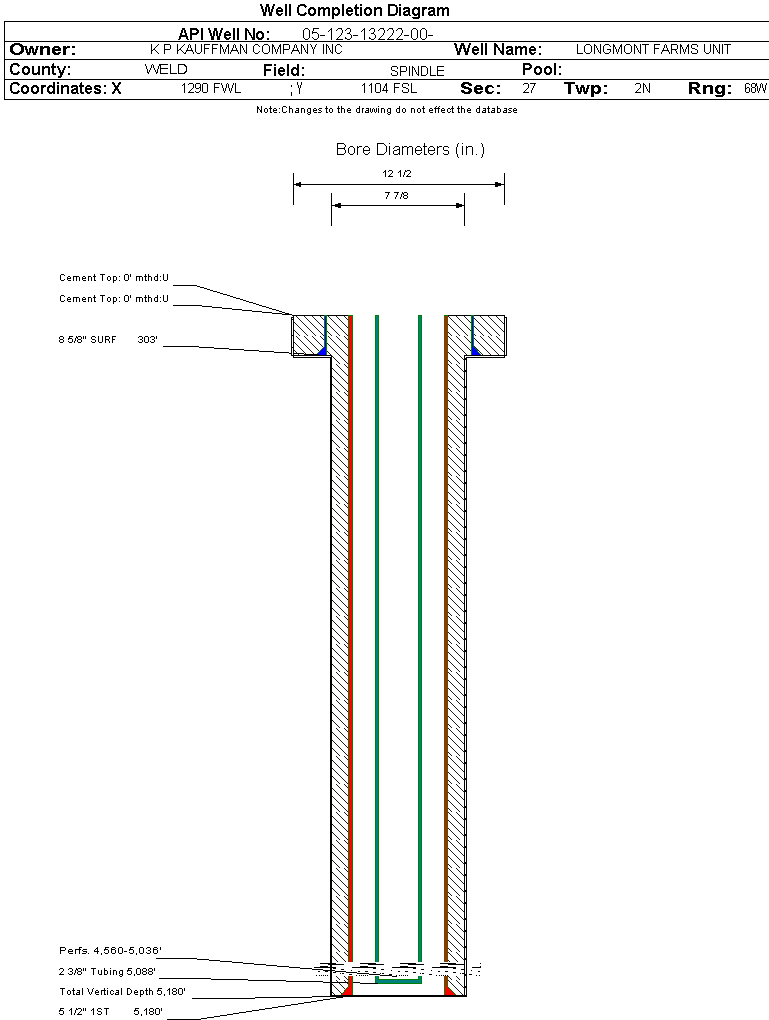

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13222		Well Classification: OW Status: PR - 9/1/2025
Well Name/No:LONGMONT FARMS UNIT #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2025
FacilityID:245427LocationID:323578
Municipality/County:FREDERICK / WELD #123Location:SWSW 27 2N68W 6
Field:SPINDLE - #77900Elevation:5005 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1104FSL  1290 FWLLat/Long: 40.105347 / -104.994286Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.105316 / -104.994221Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 9/1/2025             Measured TD: 5180 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 9/1/2025
Wellbore Permit
Permit #:19860693 Expiration Date:2/19/1987
Proposed Depth/Form:5180 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:1/27/1987
Spud Date:10/30/1986Spud Date Is:ACTUAL
Measured TD:5180 ft.Measured PB depth:5134 ft.
True Vertical TD:True Vertical PB depth:
Log Types:NO OPEN HOLE, CASED HOLE GR
Casing:String Type: SURF, Hole Size: 12.5 in., Size: 8.625 in., Top: , Depth: 303 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 5180 ft., Weight: 14,15.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4434 ft.NN
SHANNON4965 ft.NN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 1/7/1987                  Interval Top: 5001 ft.    Interval Bottom: 5036 ft.

 Completed Information for Formation SHANNON
1st Production Date:1/7/1987Choke Size:
Formation Name:SHANNONCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SNSD.
Perforation Data:
Interval Top:5001 ft.# Of Holes:140
Interval Bottom:5036 ft.Hole Size:

Formation SUSX                     Formation Classification:                       Status:  CM - 12/18/1986                Interval Top: 4560 ft.    Interval Bottom: 4600 ft.

 Completed Information for Formation SUSSEX
1st Production Date:N/AChoke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:4560 ft.# Of Holes:160
Interval Bottom:4600 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 9/1/2025                  Interval Top: 4560 ft.    Interval Bottom: 5036 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:1/7/1987Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:ROD PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:1/27/1987
Treatment Summary:4560'-4500' (SUSX), 12/18/86: 188,000# 16-30 SAND, 5,000# 16-30 CRC CAND; 450 BLW; 252 BLW; 111 BLW FLUSH. 5001'-5036' (SNSD), 12/5/86: 102,000# 16-30 SAND; 5,000# 16-30 CRC SAND; 295 BLO; 151 BLW; 123 BLW FLUSH.
Tubing Size:2.375 in.Tubing Setting Depth:5088 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/10/1987Test Method:ROD PUMP
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 15
CALC_BBLS_H2O 27
CALC_BBLS_OIL 15
CALC_GOR 6733
CALC_MCF_GAS 101
GRAVITY_OIL 42.2
MCF_GAS 101
Perforation Data:
Interval Top:4560 ft.# Of Holes:300
Interval Bottom:5036 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)347
GOR24785
GOR DeterminationMCFE
Average BOE per Day0.200
Average MCFE per Day1.175

 Federal Financial Assurance  i

 Tribal Well  i No
