COGIS - WELL SCOUT CARD

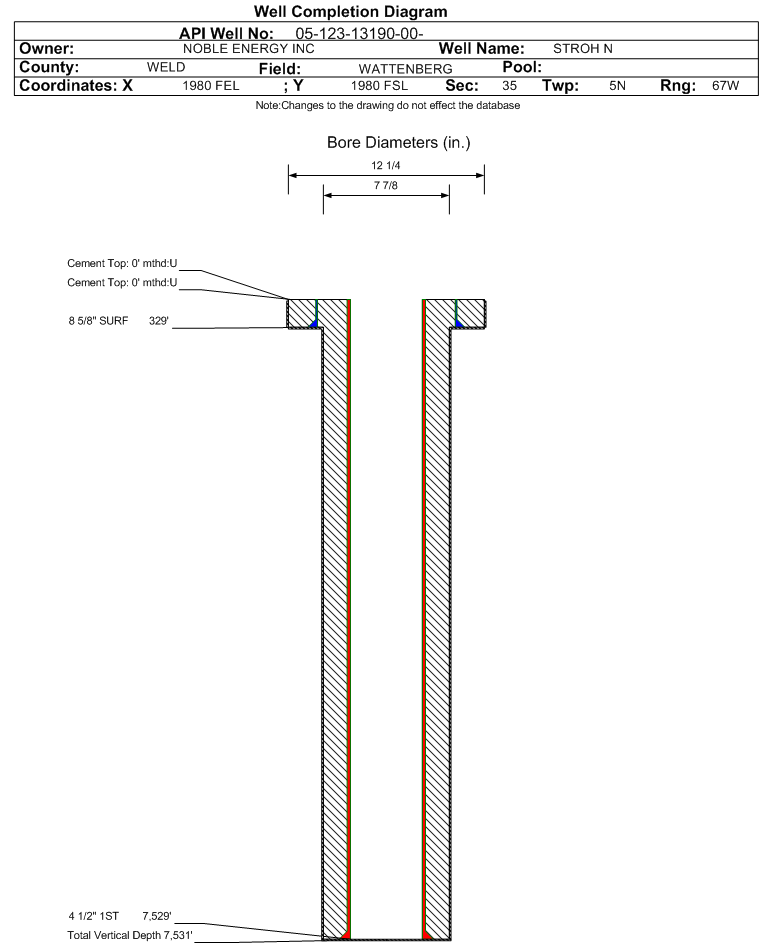

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13190		Well Classification: GW Status: PA - 5/13/2025
Well Name/No:STROH N #35-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:67967
Facility Status:PAStatus Date5/13/2025
FacilityID:245395LocationID:323557
Municipality/County:MILLIKEN / WELD #123Location:NWSE 35 5N67W 6
Field:WATTENBERG - #90750Elevation:4893 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FELLat/Long: 40.354334 / -104.857994Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.354410 / -104.857960Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 5/13/2025             Measured TD: 7531 ft.    Vertical TD: 7531 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 5/13/2025
Wellbore PermitDRIFTED
Permit #:860641 Expiration Date:2/4/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W/2SE/4
Wellbore Completed
Completion Date:11/20/1986
Measured TD:7531 ft.Measured PB depth:7518 ft.
True Vertical TD:7531 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 322 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 0 ft., Bottom: 322 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7529 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 6632 ft., Bottom: 7529 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7046 ft.
CODELL7368 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/27/2025                 Interval Top: 7346 ft.    Interval Bottom: 7376 ft.

 Completed Information for Formation CODELL
1st Production Date:12/31/1986Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7346 ft.# Of Holes:85
Interval Bottom:7376 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 5/13/2025                 Interval Top: 7046 ft.    Interval Bottom: 7376 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/31/1986Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7046 ft.# Of Holes:95
Interval Bottom:7376 ft.Hole Size:0.38 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/27/2025                 Interval Top: 7046 ft.    Interval Bottom: 7260 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/31/1986Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7046 ft.# Of Holes:10
Interval Bottom:7260 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/13/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)110
Total Gas Produced (MCF)1685
GOR15318
GOR DeterminationMCFE
Average BOE per Day1.096
Average MCFE per Day6.348

 Federal Financial Assurance  i

 Tribal Well  i No
