COGIS - WELL SCOUT CARD

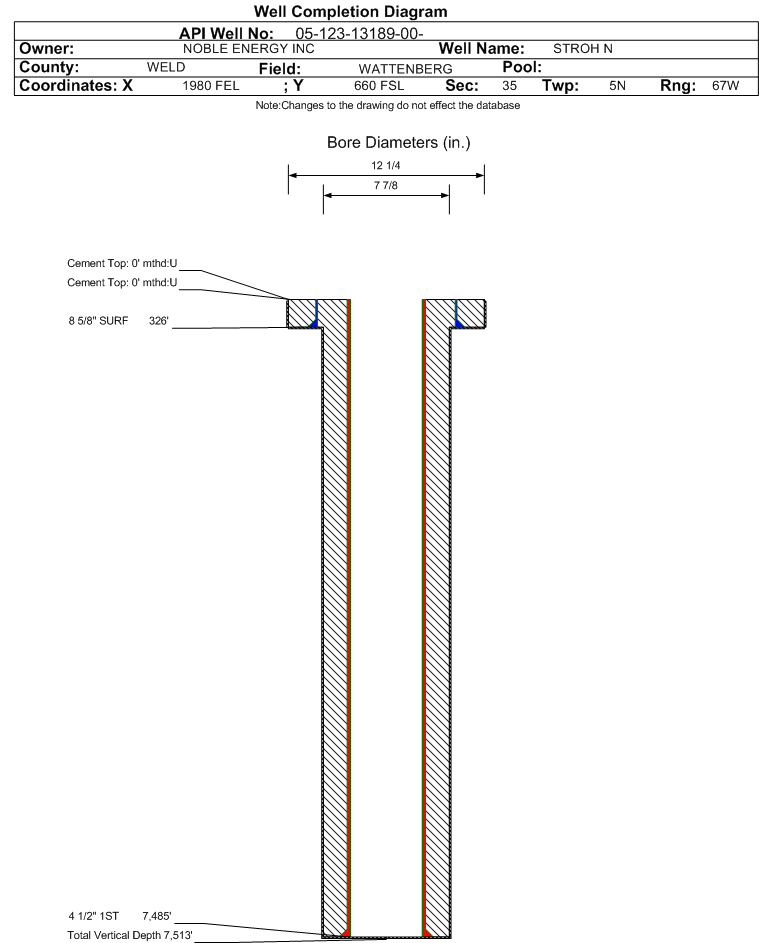

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13189		Well Classification: GW Status: PA - 10/20/2025
Well Name/No:STROH N #35-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:67967
Facility Status:PAStatus Date10/20/2025
FacilityID:245394LocationID:323556
Municipality/County:MILLIKEN / WELD #123Location:SWSE 35 5N67W 6
Field:WATTENBERG - #90750Elevation:4872 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  1980 FELLat/Long: 40.350704 / -104.857944Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.350640 / -104.857980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 10/20/2025             Measured TD: 7513 ft.    Vertical TD: 7513 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 10/20/2025
Wellbore PermitDRIFTED
Permit #:860640 Expiration Date:2/4/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: W/2SE/4
Wellbore Completed
Completion Date:11/20/1986
Measured TD:7513 ft.Measured PB depth:7500 ft.
True Vertical TD:7513 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 326 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 326 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7485 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 6474 ft., Bottom: 7485 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7028 ft.
CODELL7346 ft.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 2/25/2025                 Interval Top: 7348 ft.    Interval Bottom: 7386 ft.

 Completed Information for Formation CODELL
1st Production Date:12/31/1986Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7348 ft.# Of Holes:85
Interval Bottom:7386 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/20/2025                Interval Top: 7030 ft.    Interval Bottom: 7386 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:12/31/1986Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:7030 ft.# Of Holes:94
Interval Bottom:7386 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 2/25/2025                 Interval Top: 7030 ft.    Interval Bottom: 7245 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:12/31/1986Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7030 ft.# Of Holes:9
Interval Bottom:7245 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/20/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)110
Total Gas Produced (MCF)2096
GOR19054
GOR DeterminationMCFE
Average BOE per Day1.301
Average MCFE per Day7.540

 Federal Financial Assurance  i

 Tribal Well  i No
