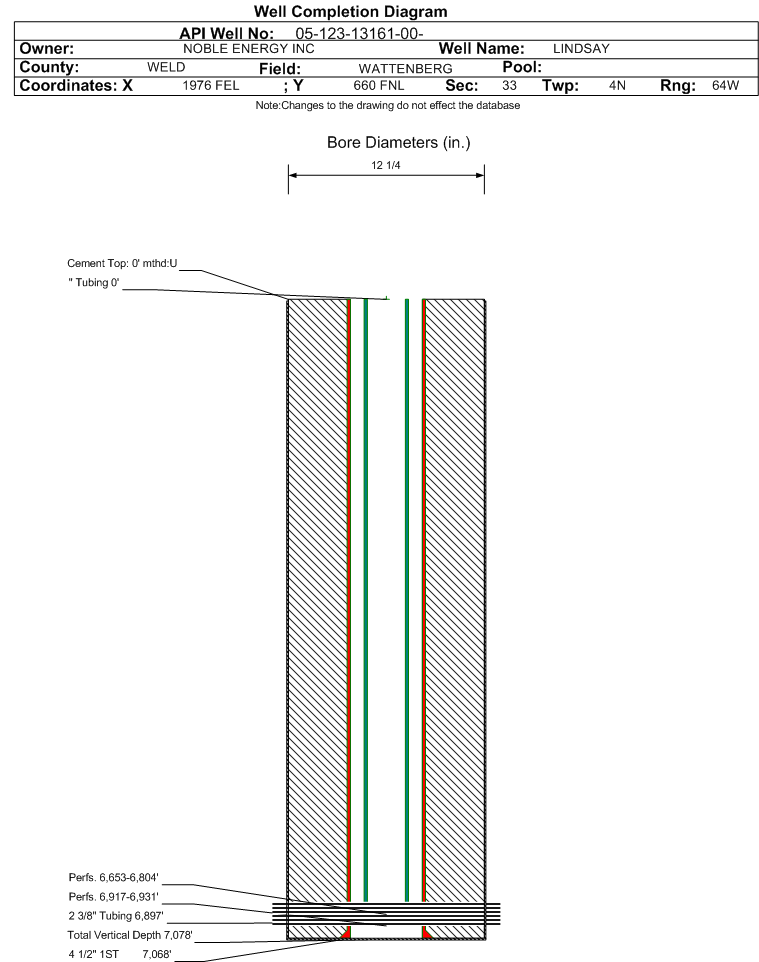

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13161		Well Classification: GW Status: PA - 10/26/2023
Well Name/No:LINDSAY #33-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:68209
Facility Status:PAStatus Date10/26/2023
FacilityID:245366LocationID:323532
County:WELD #123Location:NWNE 33 4N64W 6
Field:WATTENBERG - #90750Elevation:4732 ft.
Planned Location:660FNL  1976 FELLat/Long: 40.274337 / -104.553644Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.274420 / -104.553600Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 10/26/2023             Measured TD: 7078 ft.    Vertical TD: 7078 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 10/26/2023
Wellbore Permit
Permit #:860597 Expiration Date:1/15/1987
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:9/30/1986
Measured TD:7078 ft.Measured PB depth:7065 ft.
True Vertical TD:7078 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 308 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 215, Top: 0 ft., Bottom: 308 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7068 ft., Weight: 15.1 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 5982 ft., Bottom: 7068 ft., Determination Method: CBL

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/11/2022                 Interval Top: 6917 ft.    Interval Bottom: 6929 ft.

 Completed Information for Formation CODELL
1st Production Date:10/13/1986Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/30/1986
Treatment Summary:CLEAN OUT SAND PLUG AND COMMINGLE W/NBRR 12/2/04
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 10
CALC_BBLS_H2O 5
CALC_BBLS_OIL 10
CALC_GOR 19
CALC_MCF_GAS 190
CASING_PRESS 630
MCF_GAS 190
TUBING_PRESS 210
Perforation Data:
Interval Top:6917 ft.# Of Holes:61
Interval Bottom:6929 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/26/2023                Interval Top: 6653 ft.    Interval Bottom: 6929 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/13/1986Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6653 ft.# Of Holes:263
Interval Bottom:6929 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/11/2022                 Interval Top: 6653 ft.    Interval Bottom: 6792 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/13/1986Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/30/1986
Treatment Summary:CLEAN OUT SAND PLUG AND COMMINGLE W/CODELL12/2/04
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 10
BTU_GAS 1365
CALC_BBLS_H2O 3
CALC_BBLS_OIL 10
CALC_GOR 14000
CALC_MCF_GAS 140
CASING_PRESS 3
GRAVITY_OIL 59
MCF_GAS 142
TUBING_PRESS 140
Perforation Data:
Interval Top:6653 ft.# Of Holes:202
Interval Bottom:6792 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/26/2023
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
