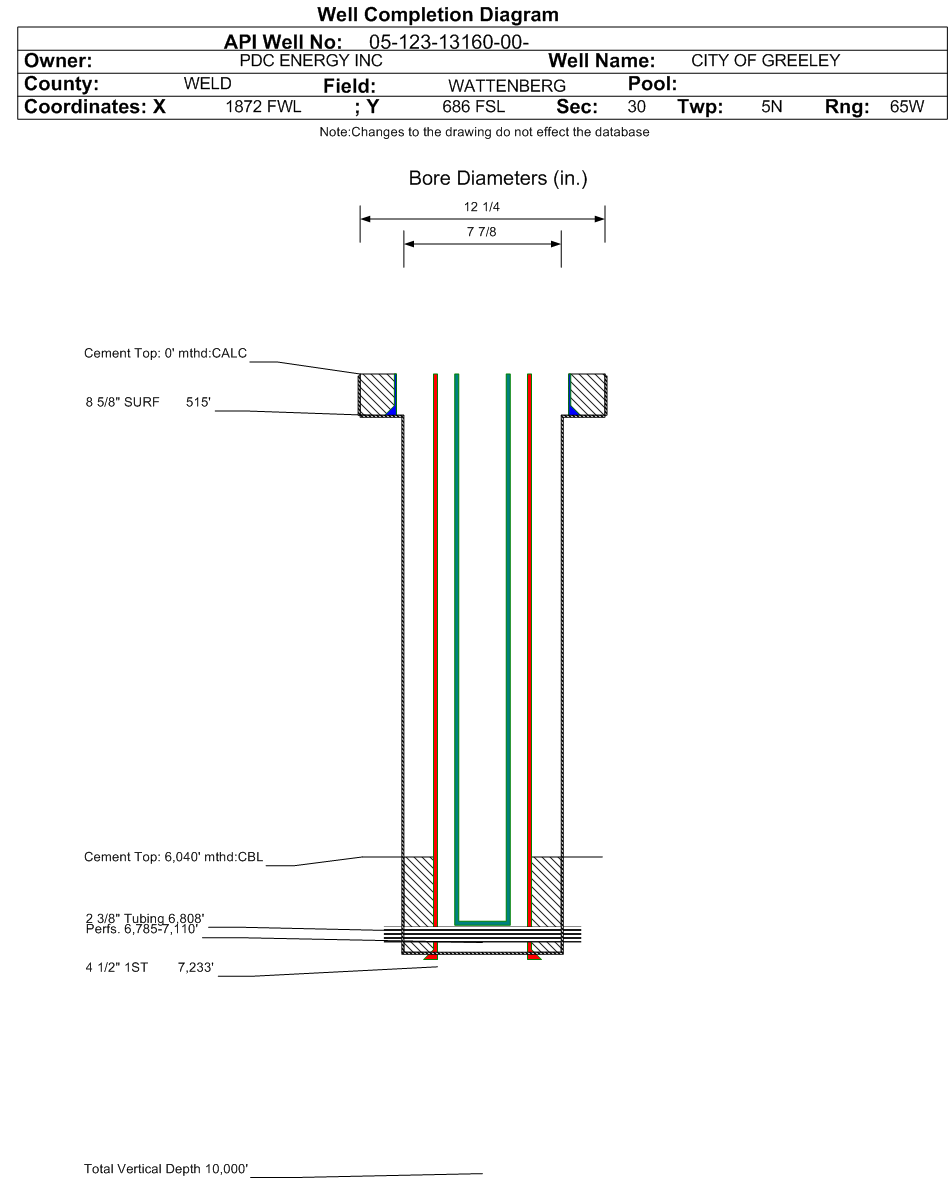

Wellbore #00 Wellbore Classification: GW Status: SI - 6/1/2025 Measured TD: 7233 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 6/1/2025 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/10/2012 | | Proposed Depth/Form: | 7233 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit: | | Formation And Spacing: | Code: SUSX , Formation: SUSSEX , Order: 407-67 , Unit Acreage: 80, Drill Unit: S/2SW/4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 515 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 515 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7233 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 230, Top: 6040 ft., Bottom: 7233 ft. |
| | |
| Wellbore Completed | | Completion Date: | 10/5/1986 | | Spud Date: | 9/29/1986 | Spud Date Is: | ACTUAL | | Measured TD: | 7233 ft. | Measured PB depth: | 7196 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | SBL-GR-CCL run 6/17/2010 for SUSX squeeze. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 515 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 515 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7233 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 6035 ft., Bottom: 7233 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4650 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 3926 ft., Bottom: 4666 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FOX HILLS | 100 ft. | | | | | SUSSEX | 4270 ft. | | | | | NIOBRARA | 6778 ft. | | | | | FORT HAYS | 7070 ft. | | | | | CODELL | 7092 ft. | | | | | GREENHORN | 7165 ft. | | | |
Formation CODL Formation Classification: GW Status: CM - 2/2/1987 Interval Top: 7092 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 2/1/1987 | Choke Size: | 964.000 in. | | Formation Name: | CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | No Perforation Data was found for formation CODL. |
|
Formation NB-CD Formation Classification: GW Status: SI - 6/1/2025 Interval Top: 6785 ft. Interval Bottom: 7110 ft.| Completed Information for Formation NIOBRARA-CODELL | | 1st Production Date: | 8/12/2010 | Choke Size: | | | Formation Name: | NIOBRARA-CODELL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 6/25/2010 | | Treatment Summary: | NBRR Perf 6785-6986 Holes 96 Size 0.42 CODL Perf 7092-7110 Holes 58 Size 0.38
Reperf NBRR 6786-6986 Holes 84 Size 0.42.
Refrac NBRR w/ 269 gal 15% HCl & 166,760 gal pHaser Hybrid & 250,860# 20/40 sand & 4,000# SB Excel.
Reperf CODL 7092-7110 Holes 18 Size 0.38.
Trifrac CODL w/ 111,560 gal pHaser & 221,460# 20/40 sand. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 5 | | BTU_GAS | 1256 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 28800 | | CALC_MCF_GAS | 144 | | CASING_PRESS | 632 | | GRAVITY_OIL | 64 | | MCF_GAS | 144 | | TUBING_PRESS | 459 |
| | Perforation Data: | | Interval Top: | 6785 ft. | # Of Holes: | 154 | | Interval Bottom: | 7110 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 02/22/2026 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | Y | Noticed Date
02/09/2024 |
| Defined Inactive (SI) | Y | Last Production
01/18/2025 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
