COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-13133		Well Classification: ERIW Status: PA - 6/2/2020
Well Name/No:SOONER UNIT #7-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:FOUNDATION ENERGY MANAGEMENT LLC - 10112
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C-26648-ACQ
Facility Status:PAStatus Date6/2/2020
FacilityID:245338LocationID:323509
County:WELD #123Location:SWNE 21 8N58W 6
Field:SOONER - #77700Elevation:4693 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1920FNL  1920 FELLat/Long: 40.649336 / -103.865525Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.649350 / -103.865450Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 6/2/2020             Measured TD: 6428 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 6/2/2020
Wellbore Permit
Permit #:19860529 Expiration Date:12/16/1986
Proposed Depth/Form:6455 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:SOONER Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 40, Drill Unit: SWNE
Wellbore Completed
Completion Date:12/12/1986
Spud Date:9/11/1986Spud Date Is:ACTUAL
Measured TD:6428 ft.Measured PB depth:6370 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL, FDC/GR & MICROLOG

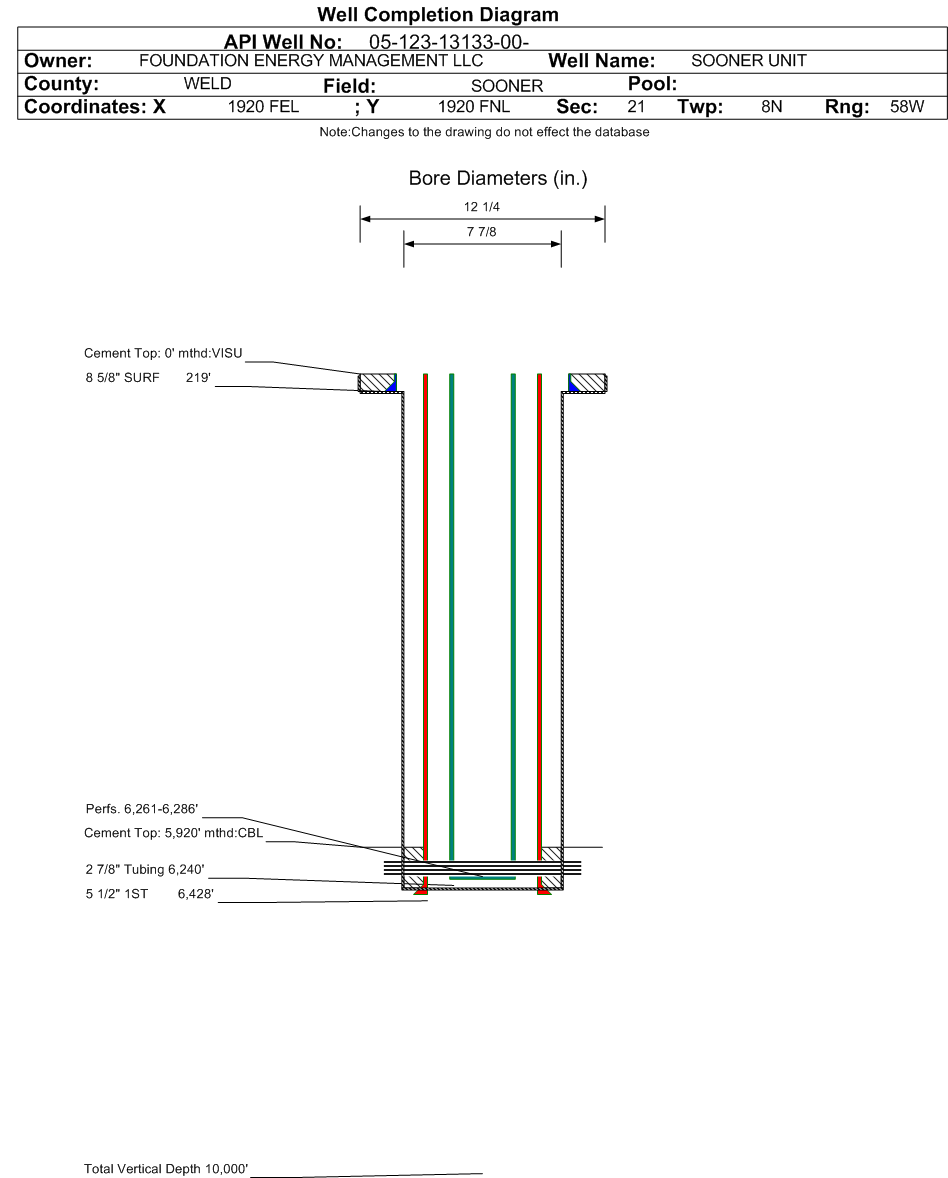

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 219 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 145, Top: 0 ft., Bottom: 219 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6428 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 5920 ft., Bottom: 6428 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT HAYS5772 ft.
CODELL5795 ft.
BENTONITE6154 ft.
D SAND6261 ft.Y

Formation DSND                     Formation Classification:  ERIW                     Status:  AB - 6/2/2020                  Interval Top: 6261 ft.    Interval Bottom: 6286 ft.

 Completed Information for Formation D SAND
1st Production Date:1/4/1987Choke Size:0.542 in.
Formation Name:D SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/12/1986
Treatment Summary:SEE SCANNED DOCUMENT # 00248793, CONVERTED TO ER INJECTOR 6/19/06
Tubing Size:2.875 in.Tubing Setting Depth:6240 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/3/1987Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 0.5
BBLS_OIL 960
CASING_PRESS 880
GRAVITY_OIL 43
MCF_GAS 400
TUBING_PRESS 260
Perforation Data:
Interval Top:6261 ft.# Of Holes:38
Interval Bottom:6286 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/02/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
