COGIS - WELL SCOUT CARD

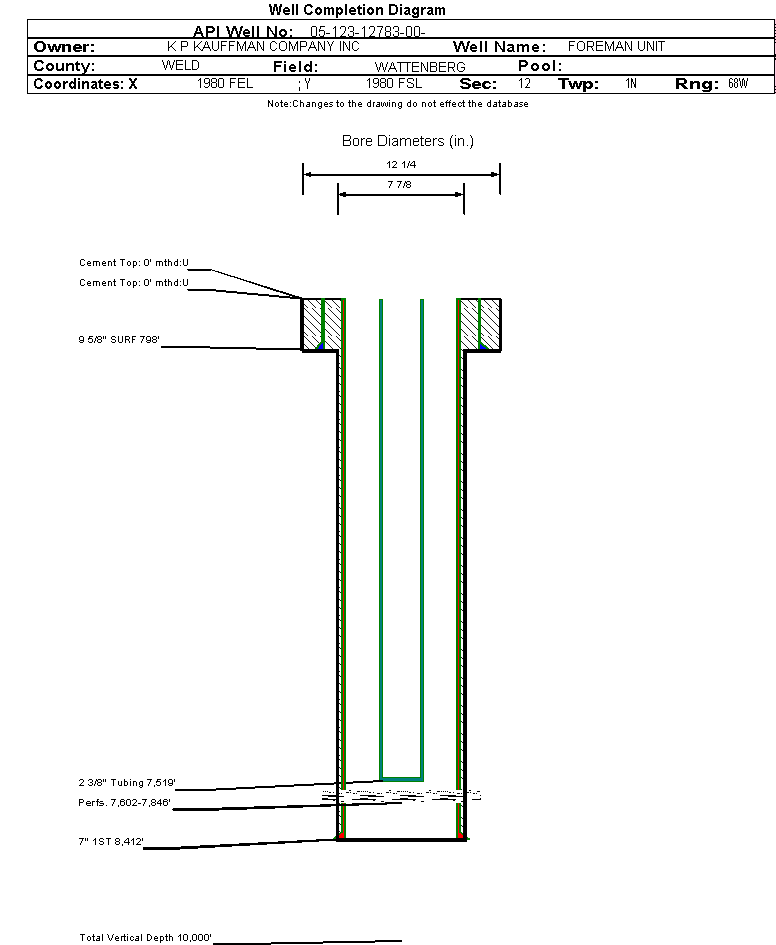

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12783		Well Classification: GW Status: PR - 8/1/2024
Well Name/No:FOREMAN UNIT #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2024
FacilityID:244988LocationID:323262
Municipality/County:DACONO / WELD #123Location:NWSE 12 1N68W 6
Field:WATTENBERG - #90750Elevation:5093 ft.
Planned Location:1980FSL  1980 FELLat/Long: 40.063937 / -104.949524Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.063960 / -104.949440Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2024             Measured TD: 8412 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2024
Wellbore PermitDRIFTED
Permit #:19851546 Expiration Date:3/1/1986
Proposed Depth/Form:8330 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: W2SE
Wellbore Completed
Completion Date:4/23/1986
Spud Date:12/22/1985Spud Date Is:ACTUAL
Measured TD:8412 ft.Measured PB depth:8195 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL SP GR SFL, CNL FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 798 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 7 in., Top: 0 ft., Depth: 8412 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 1170, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7490 ft.
CODELL7832 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 8/1/2024                  Interval Top: 7602 ft.    Interval Bottom: 7846 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/20/1986Choke Size:1.000 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/23/1986
Treatment Summary:37,200# 100 M, 352,600# 20/40 M& 3,035 BBL H2O. FLUSH W/ 163 BBL H2O
Tubing Size:2.375 in.Tubing Setting Depth:7519 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/23/1986Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 39
CALC_GOR 5435
GRAVITY_OIL 49.6
MCF_GAS 212
Perforation Data:
Interval Top:7602 ft.# Of Holes:20
Interval Bottom:7846 ft.Hole Size:0.5 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)7
Total Gas Produced (MCF)45
GOR6428
GOR DeterminationBOE
Average BOE per Day0.038
Average MCFE per Day0.237

 Federal Financial Assurance  i

 Tribal Well  i No
