COGIS - WELL SCOUT CARD

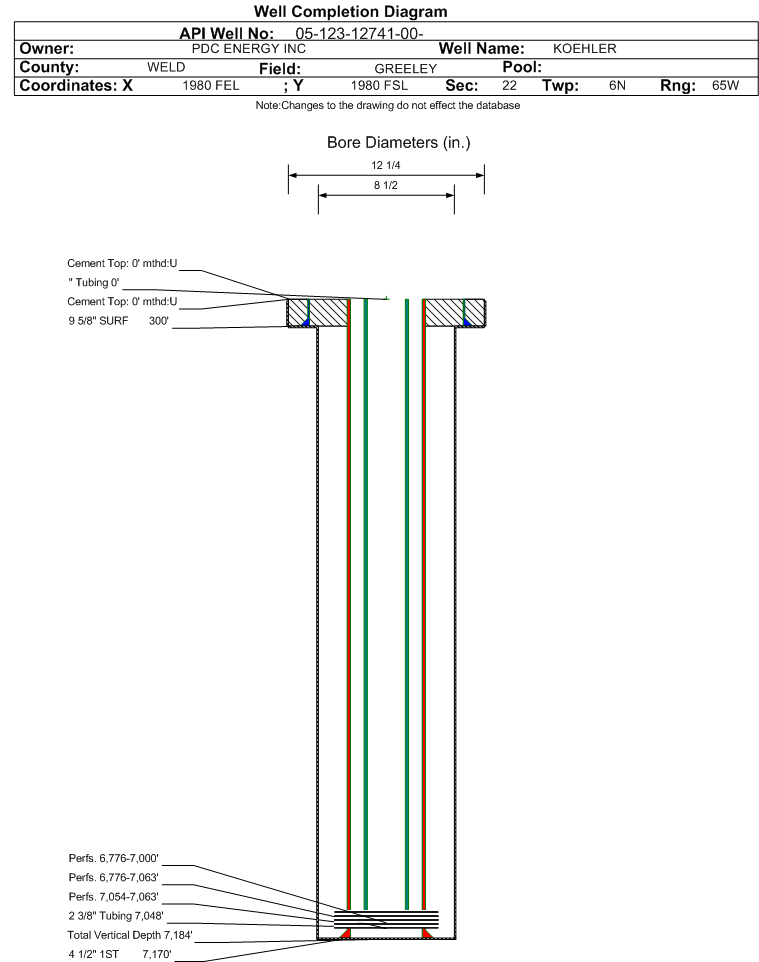

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12741		Well Classification: OW Status: PR - 11/1/2025
Well Name/No:KOEHLER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:56044
Facility Status:PRStatus Date11/1/2025
FacilityID:244946LocationID:323226
County:WELD #123Location:NWSE 22 6N65W 6
Field:GREELEY - #32760Elevation:4732 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FELLat/Long: 40.469659 / -104.646983Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.469580 / -104.646890Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 11/1/2025             Measured TD: 7184 ft.    Vertical TD: 7184 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 11/1/2025
Wellbore Permit
Permit #:851454 Expiration Date:2/15/1986
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:1/21/1986
Measured TD:7184 ft.Measured PB depth:0 ft.
True Vertical TD:7184 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 300 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 4.5 in., Top: 0 ft., Depth: 7170 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4343 ft.
NIOBRARA6756 ft.
FORT HAYS7031 ft.
CODELL7050 ft.
CARLILE7068 ft.
GREENHORN7068 ft.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 12/1/2005                 Interval Top: 7054 ft.    Interval Bottom: 7063 ft.

 Completed Information for Formation CODELL
1st Production Date:1/21/1986Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/3/2005
Treatment Summary:REPERF'D CODL 7054-7062' (24 HOLES). REFRAC'D CODL USING 636 BBLS VISTAR 24# PAD; 2197 BBLS VISTAR 24# FLUID SYSTEM; 217,260# OF 20/40 WHITE SAND & 8000# SUPER LC 20/40 RESIN COATED PROPPANT
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7054 ft.# Of Holes:36
Interval Bottom:7063 ft.Hole Size:0.42 in.

Formation NB-CD                   Formation Classification:  OW                   Status:  PR - 11/1/2025                 Interval Top: 6776 ft.    Interval Bottom: 7063 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:0.469 in.
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/1986
Treatment Summary:HOLE SIZE .42 AND .34.
Tubing Size:2.375 in.Tubing Setting Depth:7048 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/1/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 11
BBLS_OIL 4
BTU_GAS 1278
CALC_BBLS_H2O 11
CALC_BBLS_OIL 4
CALC_GOR 10250
CALC_MCF_GAS 41
CASING_PRESS 400
GRAVITY_OIL 49
MCF_GAS 41
TUBING_PRESS 350
Perforation Data:
Interval Top:6776 ft.# Of Holes:53
Interval Bottom:7063 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 12/1/2005                 Interval Top: 6776 ft.    Interval Bottom: 7000 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/10/1988
Treatment Summary:COMPLETED BY LYCO ENERGY ON 12/13/1988 W/O NOTIFICATION TO THE COGCC. NBRR"A" 6790,6787,6784,6779, & 6776' (1SPF). NBRR "B" 6923,6916,6913,6908,6903,6898, & 6891' (1SPF). NBRR "C" 7000,6994,6988,6981, & 6971' (1 SPF). {SEE NEXT PAGE FOR REMAINDER}
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6776 ft.# Of Holes:17
Interval Bottom:7000 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)372
Total Gas Produced (MCF)4500
GOR12096
GOR DeterminationBOE
Average BOE per Day3.133
Average MCFE per Day18.153

 Federal Financial Assurance  i

 Tribal Well  i No
