COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12720		Well Classification: GW Status: PA - 11/17/2023
Well Name/No:ARISTOCRAT #42-4C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/17/2023
FacilityID:244925LocationID:323214
County:WELD #123Location:SENE 4 3N65W 6
Field:ARISTOCRAT - #2925Elevation:4802 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FELLat/Long: 40.256217 / -104.661117Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.256172 / -104.661234Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/17/2023             Measured TD: 7280 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/17/2023
Wellbore PermitDRIFTED
Permit #:19851421 Expiration Date:2/9/1986
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:11/7/1985
Spud Date:10/14/1985Spud Date Is:ACTUAL
Measured TD:7280 ft.Measured PB depth:7258 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION & COMP. DENSITY
Log Types:

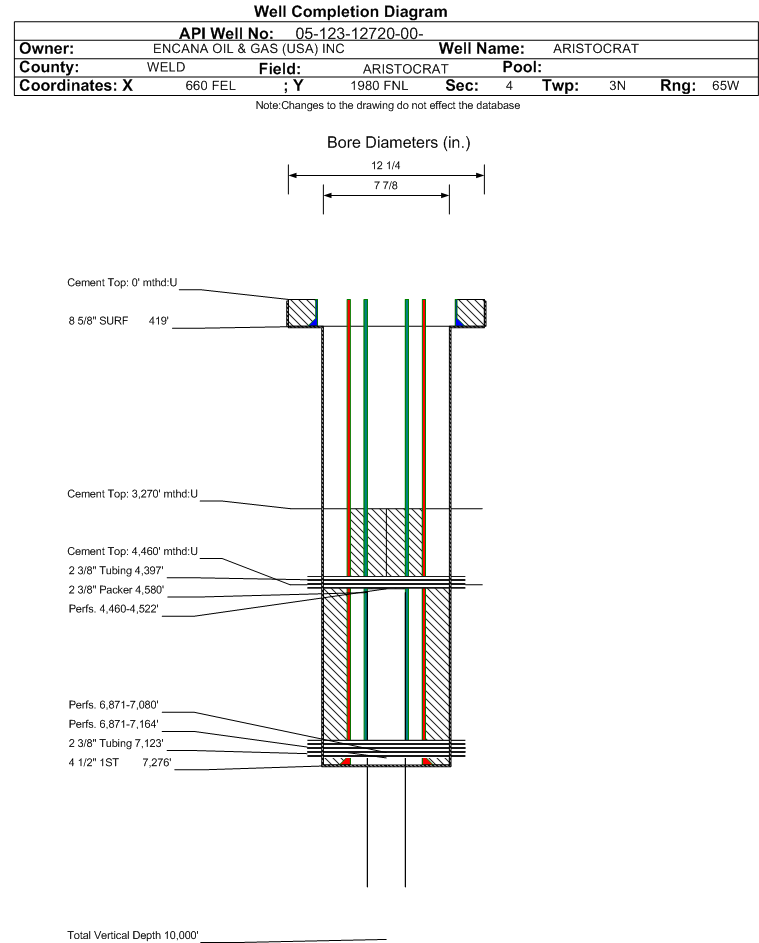

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 419 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 419 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7276 ft., Weight: 11.60 , Citings Type: ACTUAL
Cement:Sacks: 1160, Top: 3270 ft., Bottom: 7276 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: , Size: , Top: , Depth: 4460 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 4460 ft., Bottom: 4522 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4342 ft.NN
NIOBRARA6848 ft.NN
CODELL7149 ft.NN

Formation CODL                     Formation Classification:  GW                     Status:  CM - 3/17/2023                 Interval Top: 7148 ft.    Interval Bottom: 7164 ft.

 Completed Information for Formation CODELL
1st Production Date:11/7/1985Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7148 ft.# Of Holes:77
Interval Bottom:7164 ft.Hole Size:0.375 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/17/2023                Interval Top: 6871 ft.    Interval Bottom: 7164 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/7/1985Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2009
Treatment Summary:NBRR-CDL REFRAC: SET CBP @ 7190'. RE-FRACED THE CODELL WITH 250,140# 20/40 SAND IN 80,136 GALS VISTAR 28 XLF. STAGED SAND FROM 1# TO 5#. TOTAL GELLED FLUID:117,684 GALS. TOTAL FRAC FLUID: 119,448 GALS. 12/02/09. RE-FRAC'D NB W/250820# 20/40 SND IN 91602
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 12
BTU_GAS 1318
CALC_BBLS_H2O 14
CALC_BBLS_OIL 12
CALC_GOR 41750
CALC_MCF_GAS 501
CASING_PRESS 590
GRAVITY_OIL 57
MCF_GAS 501
TUBING_PRESS 371
Perforation Data:
Interval Top:6871 ft.# Of Holes:197
Interval Bottom:7164 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 3/10/2023                 Interval Top: 6871 ft.    Interval Bottom: 7080 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:11/7/1985Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/7/1985
Treatment Summary:SET CIBP @ 7120'. PERF'D THE NIOBRARA FROM 6890'-6920', 7050'-7080' W/2 SPF. RIH W/PKR. SET AT 6714', REL PKR. FRAC'D W/116,000 GAL FRAC FLUID AND 202,000# 20/40 FRAC SAND. FLOW BACK WELL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 11
BBLS_OIL 9
CALC_BBLS_H2O 11
CALC_BBLS_OIL 9
CALC_GOR 24444
CALC_MCF_GAS 220
MCF_GAS 220
Perforation Data:
Interval Top:6871 ft.# Of Holes:120
Interval Bottom:7080 ft.Hole Size:0.38 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 2/12/2002                 Interval Top: 4460 ft.    Interval Bottom: 4522 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/1/1986Choke Size:
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 11
CALC_BBLS_OIL 23
CALC_MCF_GAS 5
CASING_PRESS 700
GRAVITY_OIL 217
TUBING_PRESS 100
Perforation Data:
Interval Top:4460 ft.# Of Holes:124
Interval Bottom:4522 ft.Hole Size:0.375 in.

Formation NBCSX                   Formation Classification:  GW                   Status:  CM - 2/12/2002

 Completed Information for Formation NIOBRARA-CODELL-SUSSEX
1st Production Date:8/1/1986Choke Size:
Formation Name:NIOBRARA-CODELL-SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/7/1985
Treatment Summary:SUSSEX HAS BEEN ABANDONED - UNECONOMICAL ZONE - 2/12/2002
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBCSX.
No Perforation Data was found for formation NBCSX.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/17/2023
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
