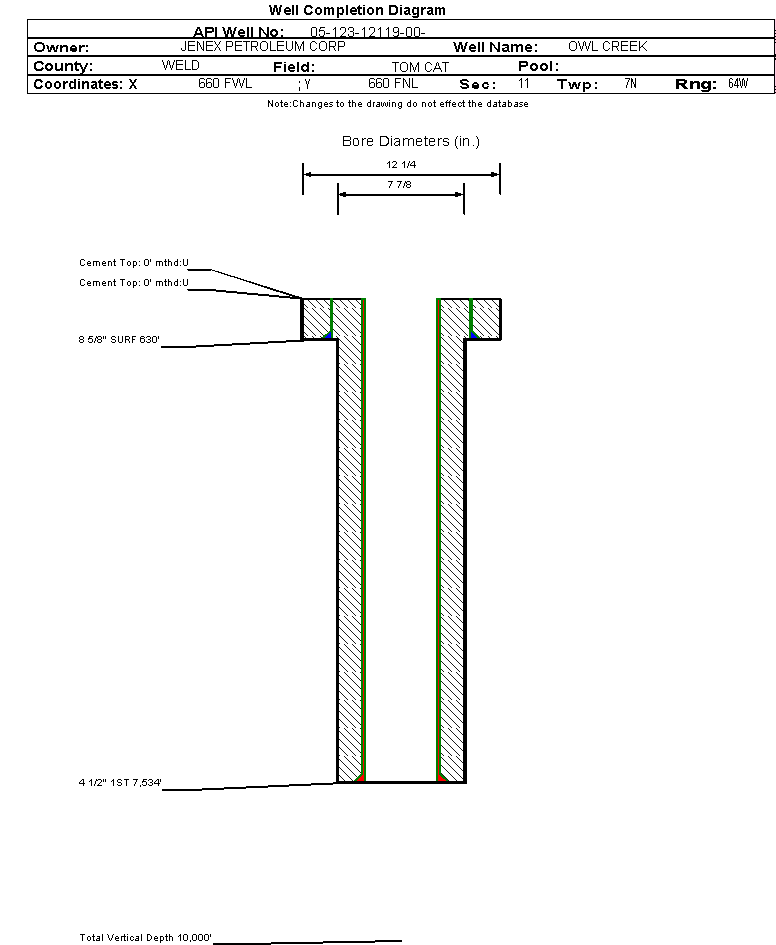

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-12119		Well Classification: DA Status: PA - 6/18/1992
Well Name/No:OWL CREEK #21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ST JAMES ENERGY OPERATING INC - 10131
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:62277
Facility Status:PAStatus Date6/18/1992
FacilityID:244325LocationID:407926
County:WELD #123Location:NWNW 11 7N64W 6
Field:TOM CAT - #82390Elevation:4857 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FWLLat/Long: 40.593113 / -104.523465Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: AB - 3/2/1971             Measured TD: 7562 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        AB - 3/2/1971
Wellbore Permit
Permit #:841676 Expiration Date:3/15/1985
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:1/30/1985
Measured TD:7562 ft.Measured PB depth:7498 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 630 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 450, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7534 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3708 ft.
SUSSEX4457 ft.
SHANNON4805 ft.
NIOBRARA6716 ft.
FORT HAYS6952 ft.
CODELL7014 ft.
CARLILE7028 ft.
GREENHORN7138 ft.
GRANEROS7300 ft.
J SAND7467 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/18/1992                 Interval Top: 7467 ft.

 Completed Information for Formation J SAND
1st Production Date:6/20/1985Choke Size:1,864.000 in.
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/18/1992
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
